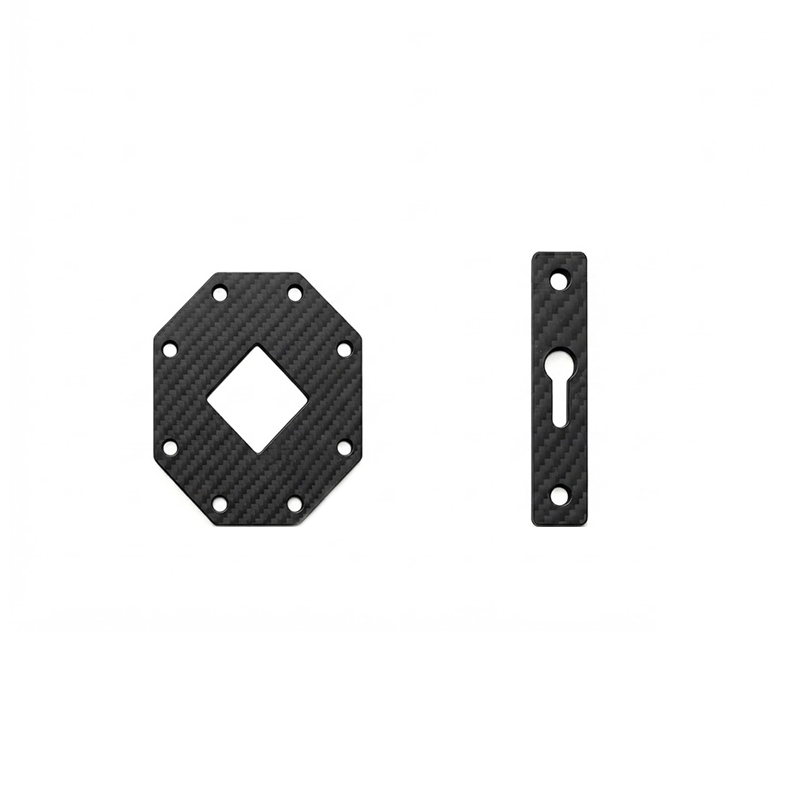

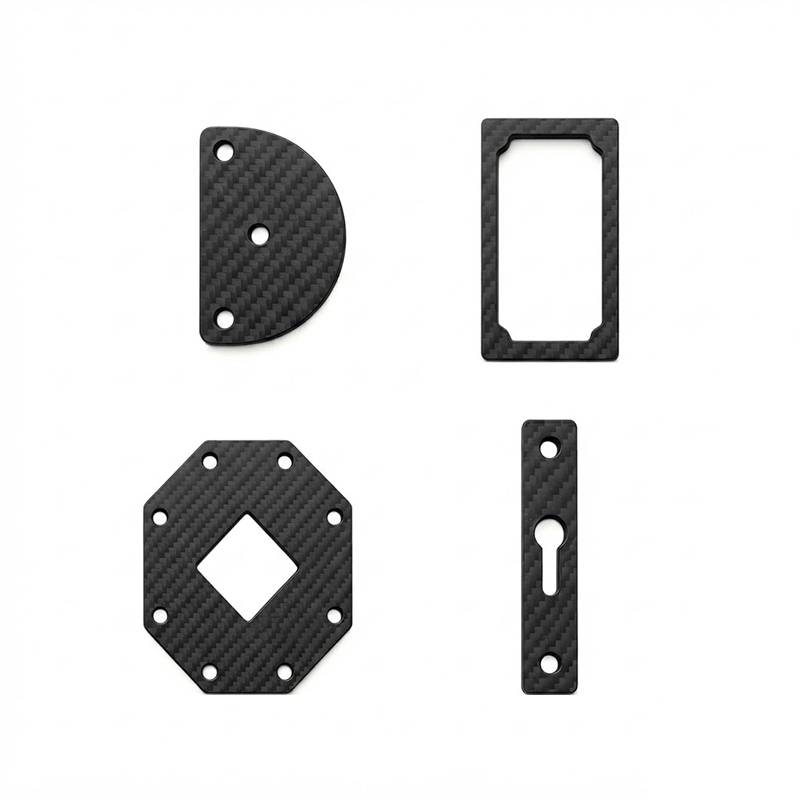

OEM Manufacturer Custom CNC Carbon Fiber Parts

At FlexiTurn, we don't just sell carbon fiber sheets — we turn your engineering drawings into finished, ready-to-assemble carbon fiber components. As an OEM contract manufacturer, our core service is precision CNC machining of carbon fiber reinforced polymer (CFRP) laminates, backed by in-house metal machining and hybrid assembly capabilities. Whether you need a single prototype for R&D validation or volume production runs, FlexiTurn delivers consistent quality under one unified quality system.

Precision 3-Axis CNC Composite Routing

Our high-speed CNC routing centers are equipped with PCD (polycrystalline diamond) tooling and vacuum clamping fixtures, calibrated specifically for carbon fiber laminates. We cut intricate profiles, slots, cutouts, and holes with minimized edge fraying, fiber pull-out, and delamination. Feed rates and spindle speeds are tuned per laminate thickness and resin system to deliver clean, repeatable results across batches.

High-Accuracy Drilling & Slotting

Optimized peck-drilling cycles with sacrificial backing boards maintain true-position hole accuracy while minimizing exit-side ply separation. Helical interpolation is available for oversized holes and keyhole slots. Dense mounting arrays — common in robotic chassis plates, aerospace equipment panels, and battery mounting boards — are processed with controlled tool paths to minimize thermal buildup and reduce risk of resin degradation.

Edge Finishing & Epoxy Sealing

Every cut edge receives automated chamfering and edge finishing to remove sharp edges and micro-fractures. Optional epoxy resin sealing protects exposed internal fibers against moisture ingress, chemical exposure, and mechanical wear — critical for components operating in outdoor, industrial, or high-humidity environments.

Integrated Metal Hardware Assembly

This is where FlexiTurn stands apart. Leveraging our core CNC metal turning and milling infrastructure, we manufacture custom aluminum, stainless steel, and brass threaded inserts, standoffs, and rivet nuts in-house — then precision press-fit or heat-set them directly into your carbon fiber panels. No third-party dependency, no quality handoff gaps. You receive fully integrated hybrid assemblies ready for final installation.

Single-Source Metal + Composite Fabrication

Most carbon fiber shops only cut composite panels and outsource metal hardware. FlexiTurn machines both in-house, giving you one point of contact, one quality system, and shorter lead times for hybrid assemblies.

Controlled Delamination & Clean Edge Quality

Carbon fiber machining is unforgiving — wrong tooling or feed rates cause delamination, fraying, and scrap. We use PCD tooling, optimized cutting geometry, vacuum fixturing, and tuned parameters to minimize delamination. Edge quality acceptance criteria are agreed per project, and every part undergoes 100% visual edge inspection.

Free DFM Engineering Support

Every drawing receives a complimentary Design for Manufacturability review within 24 working hours. Our engineers evaluate hole-to-edge distance, minimum internal corner radii, slot-end geometry, ply orientation, and insert installation parameters — optimizing your design for manufacturability and cost before a single chip is cut.

ISO 9001:2015 Certified

Quality Control Rigorous quality management with CMM dimensional verification for hole pitch and true position, first-article inspection (FAI), compound batch traceability, and full inspection documentation. Material Test Certificates (MTR) available per batch.

No Rigid MOQ & Fast Turnaround

Evaluation prototypes from standard in-stock laminates ship in 3 to 5 business days — no tooling charge. We scale seamlessly from single-piece R&D samples to multi-thousand unit production runs, with transparent pricing and no hidden minimums.

IP Protection & Direct Communication

Your proprietary designs are protected by standard Non-Disclosure Agreements (NDA). Dedicated English-speaking project engineers handle technical alignment directly — no intermediaries, no lost-in-translation details.

Materials & Specifications We Support

• Laminate Grades: 1K, 3K, 6K, 12K prepreg; T300 (standard modulus), T700/T800 (intermediate-high), M-series high-modulus (M40J/M55J+).
• Resin Matrix: Structural epoxy, high-temp epoxy, phenolic, flame-retardant (UL94 V-0).
• Weave: 3K plain weave, 3K/6K twill weave, unidirectional (UD) for structural layups.
• Thickness: 0.5 mm – 10.0 mm standard; custom laminates up to 15.0 mm on request.
• Tolerance: Down to ±0.05 mm on critical profiles and hole center pitch.
• True Position: Down to ±0.05 mm across multi-hole arrays.
• CAD Formats: STEP, IGES, DWG, DXF, PDF Industries .

How to Start Your Project

1. Submit your 2D (DXF/DWG) or 3D (STEP) CAD files along with laminate thickness, surface finish, and hardware insert requirements.
2. Receive a free DFM evaluation and itemized quotation within 24 working hours.
3. Approve prototype machining — samples delivered with full CMM inspection reports.
4. Scale to production with batch routing, edge sealing, hardware assembly, and quality verification.
5. Receive your parts in scratch-resistant protective packaging via global express or freight shipping.

Custom ply layup or non-standard thickness requires minimum run quantities and extended lead time — quoted transparently per your specification.

Ready to manufacture your custom carbon fiber parts? Contact the FlexiTurn engineering team today for a free DFM consultation and fast quotation.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
