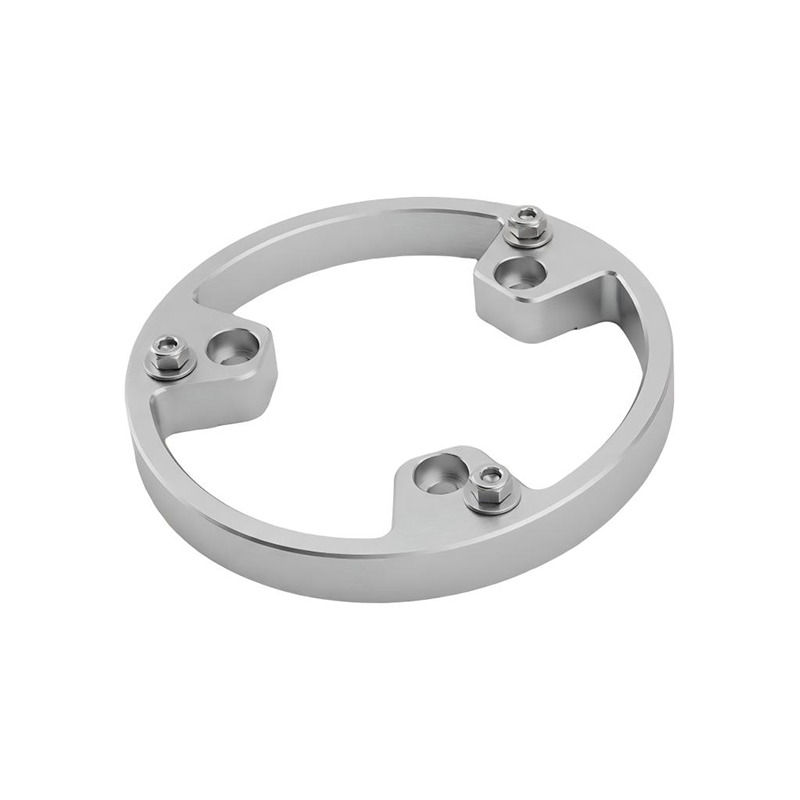

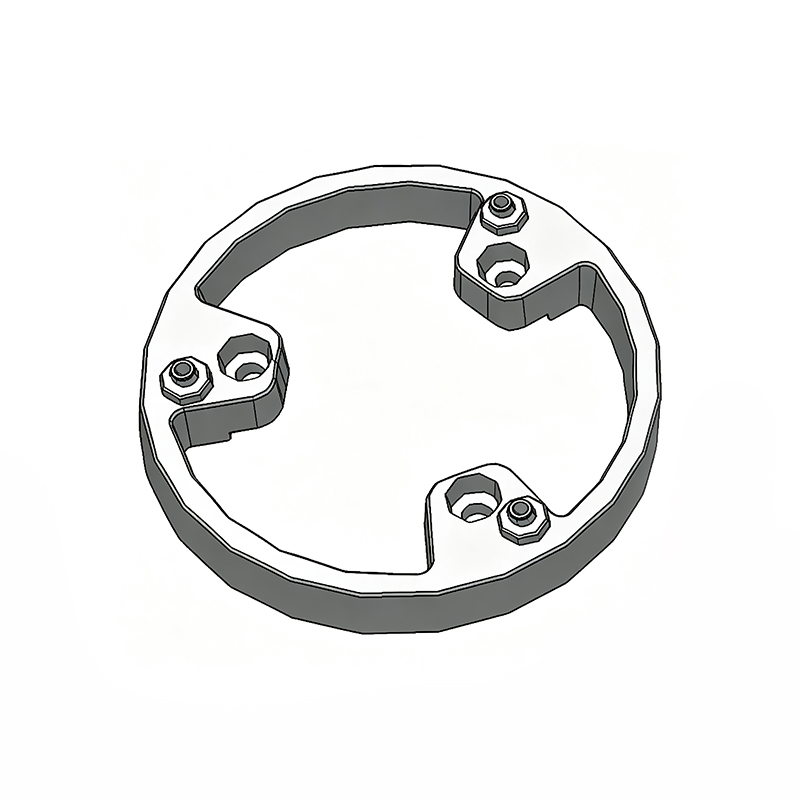

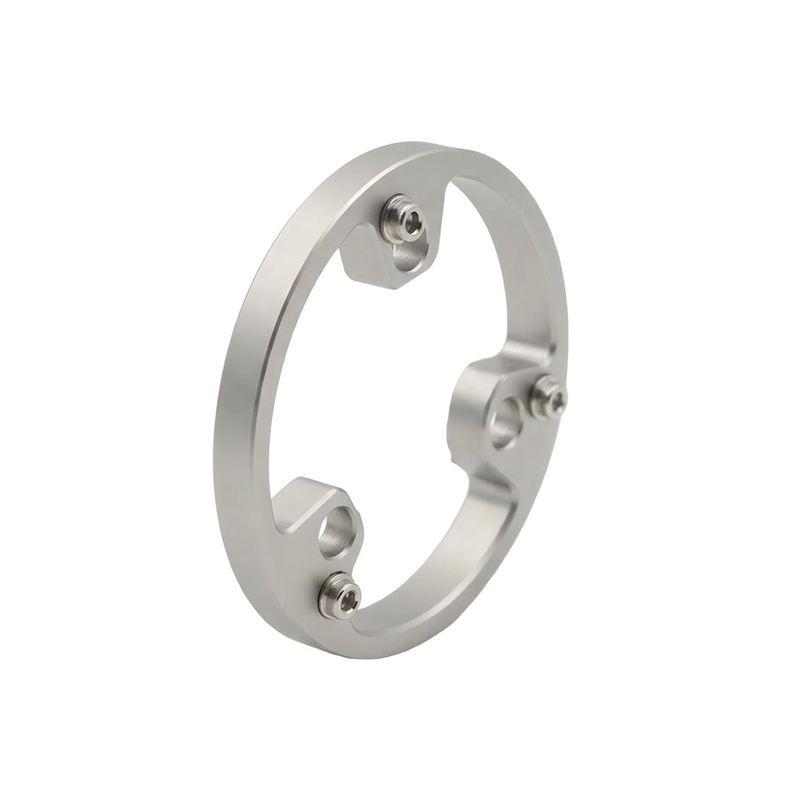

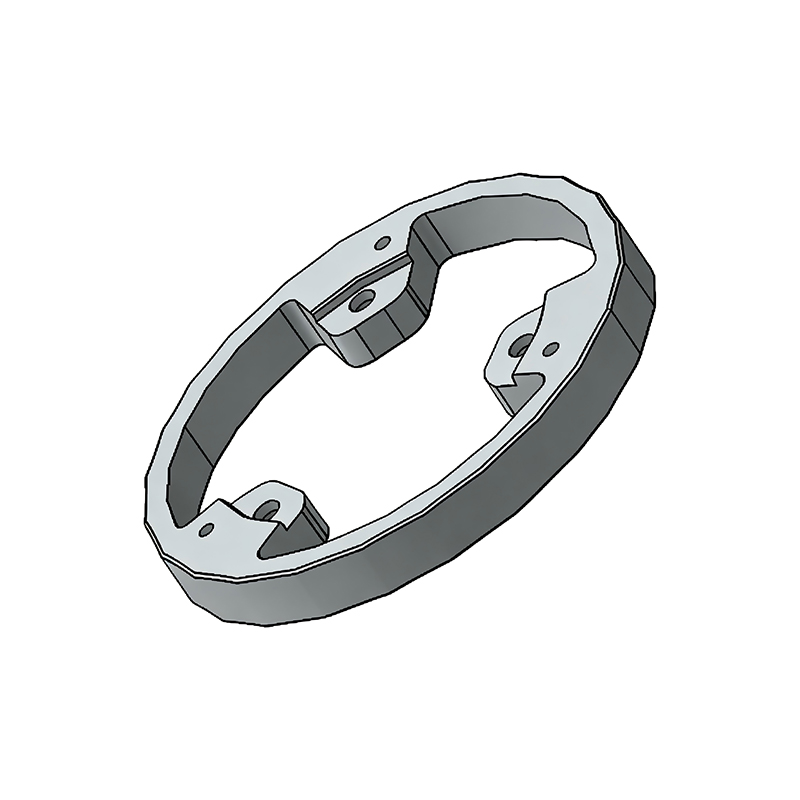

Custom High Precision CNC Encoder Mounting Bracket

Our high-precision encoder mounting ring is purpose-built for critical industrial automation environments. Featuring a one-piece hollow annular design, it provides a stable, vibration-resistant foundation and ensures optimal encoder alignment, a critical factor for consistent signal output and high-accuracy feedback in demanding manufacturing processes.

Key Features

• High-Precision Machining: CNC machined with tight positional tolerances for mounting holes and precisely faced mounting surfaces, delivering exact dimensional consistency and assured perpendicularity for perfect sensor alignment.
• Superior Structural Rigidity: Constructed from high-strength 7075-T6 aluminum alloy with a one-piece monolithic design, it delivers exceptional structural stability and reliable vibration resistance, minimizing vibration transmission to protect the encoder from mechanical stress and impact.
• Seamless Integration: Features a statically determined 3-point mounting pattern and hollow bore design for direct shaft pass-through. Each mounting lug integrates counterbore through-holes (for flange mounting) and precision tapped holes (for encoder fastening), enabling simple bolt-on installation with a compact axial profile for seamless integration into space-constrained automation machinery.
• Ensured Runout Accuracy: Maintains precise encoder alignment and minimal radial runout even under high-speed rotational conditions, eliminating eccentric code disc wear and signal loss to meet the rigorous demands of modern production lines for unwavering signal integrity.
• Anodized Surface Finish: Treated with an anodizing process, yielding a corrosion and wear-resistant surface that guarantees long service life in harsh industrial environments.

Engineering Insight

The 3-point mounting configuration avoids the over-constraint typical of 4-bolt designs, reducing stress-induced deformation and ensuring the encoder’s internal bearings are not preloaded, thereby preserving its rated service life.

Applications

This mounting ring is an essential component for high-precision motion control systems, including:

• Lithium Battery Production: Optimized for high-precision servo systems in lithium-ion battery electrode manufacturing lines.
• CNC Machinery: Delivers robust, reliable support for rotary encoders in automated machining centers and servo feed axes.
• General Industrial Automation: A versatile design compatible with a wide range of servo/stepper motor rotary encoder installations where signal integrity is paramount, such as web tension control and high-speed pick-and-place systems.

Available in multiple bore diameters and mounting configurations to match standard rotary encoder sizes. Custom dimensions and mounting patterns are also available upon request for tailored application requirements.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
