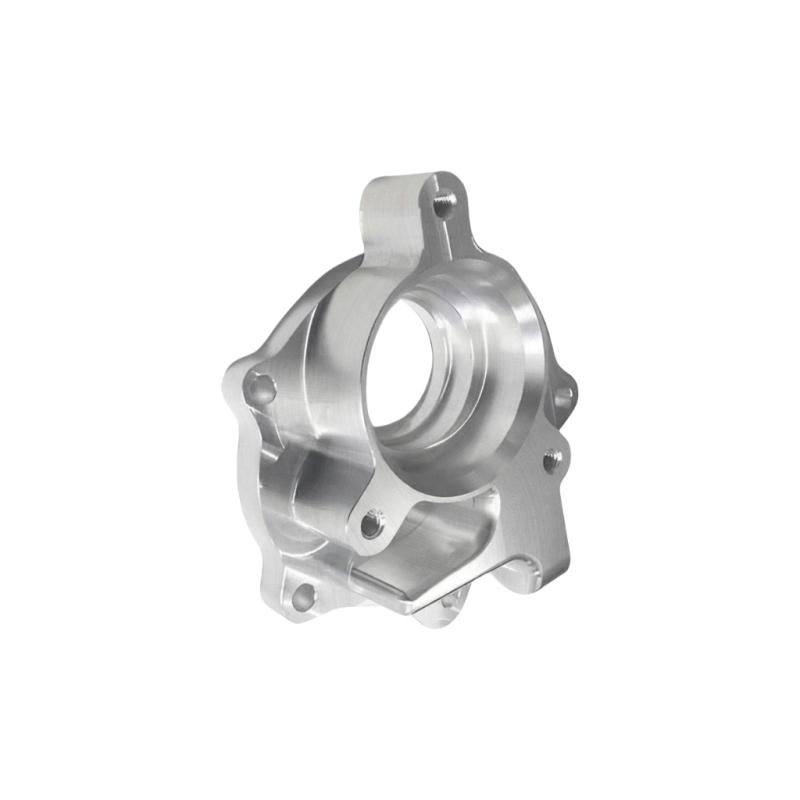

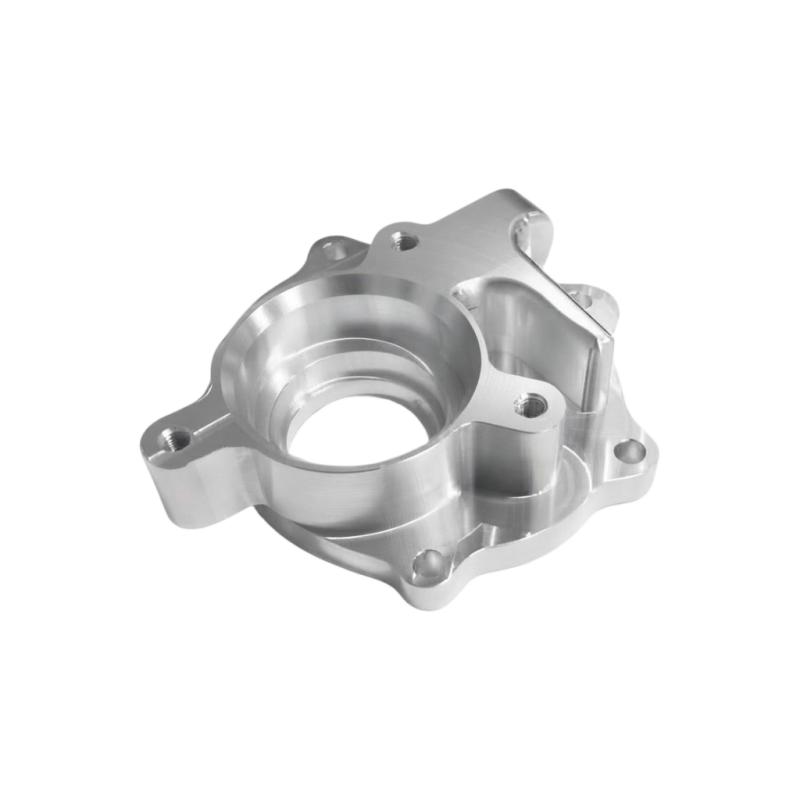

Custom CNC Machined Robot Joint Housing

Custom CNC Machined Robot Joint Housing
Robot joint housings form the structural core of many robotic joints, providing the mounting structure for bearings, motors, gear reducers, and other motion components. Because these components work together within a compact space, the housing must combine accurate interfaces with a rigid yet lightweight structure.

FlexiTurn manufactures custom robot joint housings directly from customer drawings, 3D CAD models, or physical samples, with non-standard dimensions and internal structures matched to the specific robotic assembly.

Built Around the Joint Assembl
A robot joint housing is more than an outer shell. The internal geometry determines how different motion components are positioned and supported.

Depending on the design, the housing may incorporate:

Bearing Seats
Circular bores and stepped surfaces locate bearings and support rotating components.

Motor & Gearbox Interfaces
Mounting faces, bolt patterns, and locating features must align with motors, reducers, or other drive components.

Internal Cavities
Machined pockets and cavities provide clearance for gears, wiring, fasteners, and moving components while helping reduce unnecessary weight.

External Mounting Features
Flanges, threaded holes, mounting ears, and positioning surfaces allow the housing to connect with adjacent robotic structures.

CNC Machining the Critical Features
The challenge with complex joint housings is often not the individual features, but their relationship to one another. Bearing bores, mounting faces, hole patterns, and internal cavities need to be machined according to the overall assembly geometry.

FlexiTurn uses CNC milling and drilling to produce these features, with 3-axis, 4-axis, or 5-axis machining selected according to the housing's geometry and accessibility. Multi-axis machining can be particularly useful when several faces or curved areas need to be machined within a compact component.

Choosing the Right Material
Weight and structural performance are important considerations in robotic joints. Aluminum alloys are a common choice when a lightweight housing with good machinability is required. Steel or stainless steel can be considered when greater strength, wear resistance, or specific operating conditions take priority.

The final material and CNC-ready blank dimensions can be selected according to the housing design and its mechanical requirements rather than being restricted to a single material.

From CAD Model to Finished Housing
FlexiTurn supports the complete manufacturing process around your existing design. Send us your 2D drawing, 3D CAD model, or physical sample, and we can manufacture the corresponding non-standard housing.

From initial prototypes and design verification to repeat small-batch or production orders, the machining process can be adapted to your quantity and component requirements. Critical bores, mounting surfaces, hole positions, and other specified features can be inspected before delivery.

Why Choose FlexiTurn
Custom-Built Joint Housings
Non-standard housings manufactured around your specific robotic joint design.

Made From Your Drawings
Production based on 2D drawings, 3D CAD files, or physical samples.

Multi-Axis CNC Machining
CNC milling, drilling, and 3-, 4-, and 5-axis machining for complex geometries.

Flexible Material Selection
Suitable material and CNC-ready blanks selected according to your component requirements.

Complex Features, Precisely Machined
Bearing bores, internal cavities, mounting interfaces, and curved contours produced to your design.

Prototype to Production
Flexible manufacturing quantities from initial prototypes to repeat production.

Critical Feature Inspection
Key bores, mounting surfaces, hole positions, and other specified features inspected before delivery.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
