Custom CNC Machined Inconel 625 Precision Components

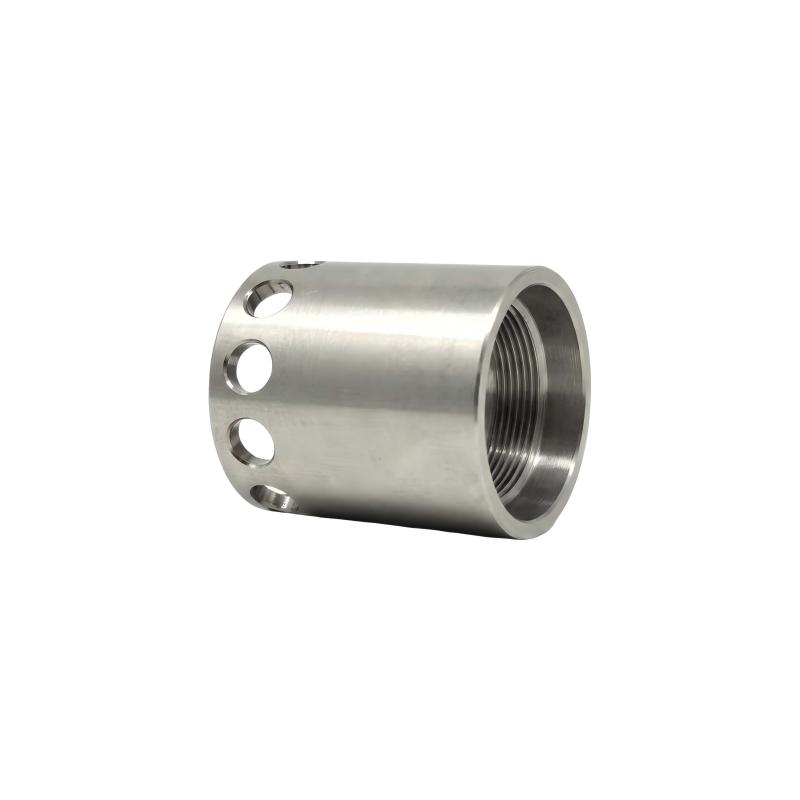

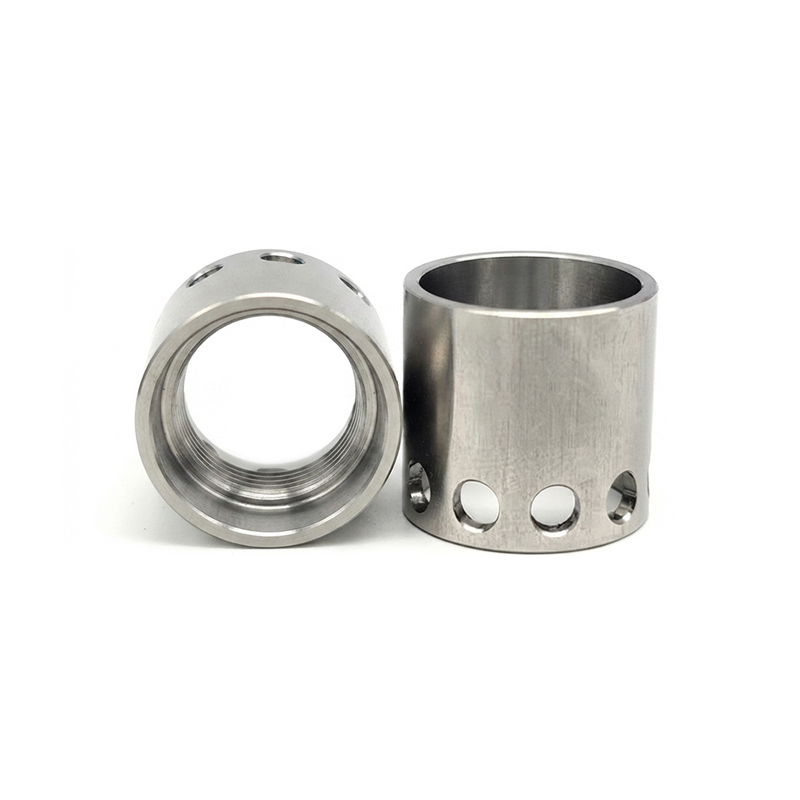

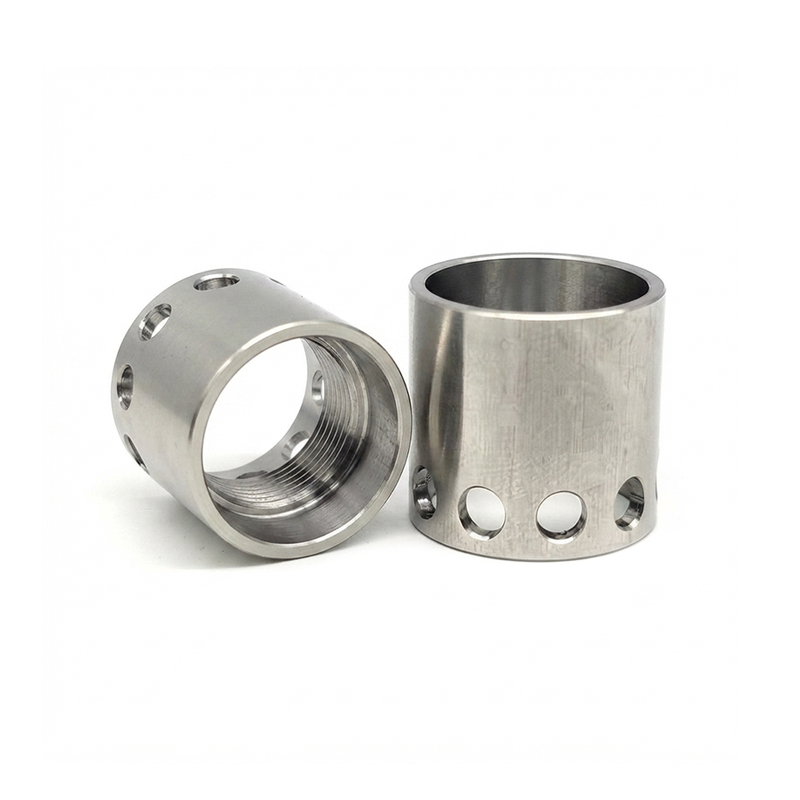

The radially ported, internally threaded sleeves shown exemplify FlexiTurn’s CNC machining capabilities for Inconel 625 (UNS N06625). Inconel 625’s extreme work hardening, high shear strength, and built-up edge (BUE) tendency routinely lead to surface tearing, dimensional drift, and subsurface deformation when processed with standard steel parameters. FlexiTurn utilizes superalloy-dedicated tooling, optimized chip loads, and high-pressure coolant to eliminate micro-cracking and preserve native corrosion resistance.

Machining Capabilities & Processing

• Single-Setup CNC Turning: OD, ID, internal threads, end faces, and chamfers are completed in a single lathe setup, eliminating re-clamping error and ensuring consistent bore-thread-OD concentricity.
• Precision Indexed Drilling: Radial ports are machined via CNC drilling with calibrated indexing fixtures, ensuring accurate angular spacing and true position relative to the bore. All hole edges are deburred and blended to minimize stress risers in corrosive service environments.
• Secondary Operations: CNC internal/external grinding, stress-relief heat treatment, pickling, passivation, and surface lapping available upon request.

FlexiTurn works with certified premium mill-run Inconel 625, with full mill test reports and batch traceability for every order.

• Standard material: Inconel 625 (UNS N06625); alternative nickel superalloy grades available on request
• General dimensional tolerance: ±0.02 mm for features ≤ 50 mm nominal size
• Thread tolerance: ISO 4H/5H (internal threads)
• Geometric tolerances: Concentricity ≤ 0.01 mm for features ≤ 50 mm OD; radial hole true position ≤ 0.03 mm
• Surface finish: Ra 1.6–3.2 μm (standard machined); Ra 0.8–1.6 μm (ground sealing faces)

Why Choose FlexiTurn

Dedicated Superalloy Parameters: Validated cutting speeds, feeds, positive-rake carbide tooling, and high-pressure coolant prevent subsurface strain and edge galling.

Single-Clamp Concentricity Control: Completing all rotational features in one setup eliminates cumulative fixturing error, ensuring uniform wall thickness and interchangeable assembly fit.

100% Process Control & Traceability: All operations are performed in-house. Shipments include original Mill Test Reports (EN 10204 3.1) and full heat batch traceability.

Free 24-Hour DFM Review: Technical CAD evaluation covering wall thickness transitions, thread relief pockets, tool access, and corrosion allowances prior to quotation.

ISO 9001:2015 Quality Assurance: Full dimensional CMM inspection records provided with every order. Third-party NDT (PT/UT) available on request.

Ordering Workflow

1. Submit CAD Files: Upload 2D (PDF/DWG) or 3D (STEP/IGES) drawings specifying material grade, thread fit, tolerances, and operating environment.
2. Fast DFM & Quote: Receive an engineering DFM assessment and direct quotation within 24 hours.
3. Prototype Machining: Functional prototypes delivered with complete CMM inspection reports and mill certifications.
4. Production Run: Scaled production using locked CNC toolpaths and in-process dimensional verification.
5. Global Delivery: Protective export packaging shipped directly to your facility.

Contact our engineering team today to submit your CAD files and request your free project assessment and custom quote.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
