CNC Machined Bronze Pump Impellers

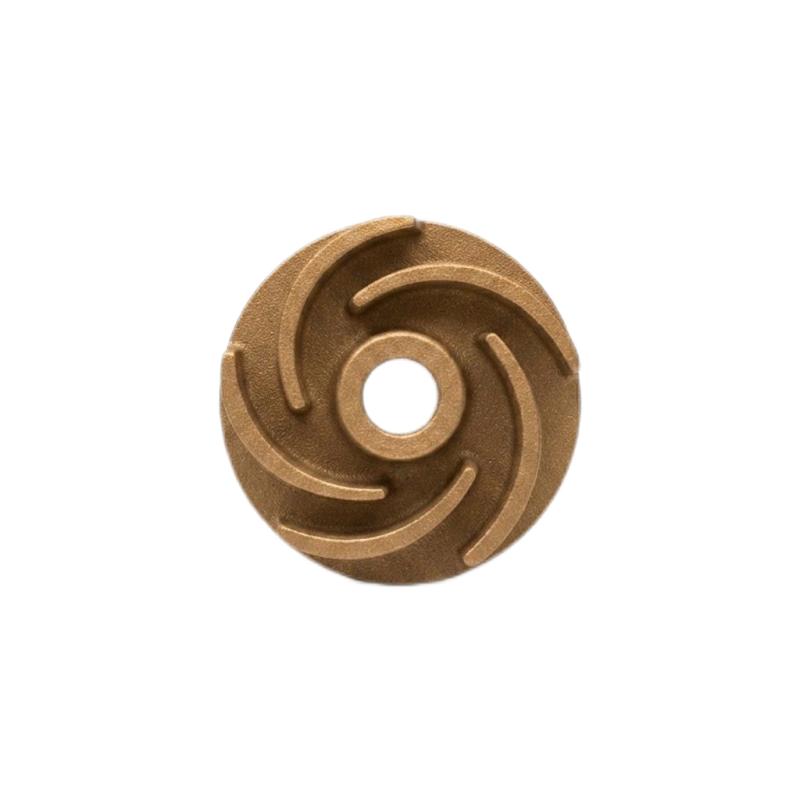

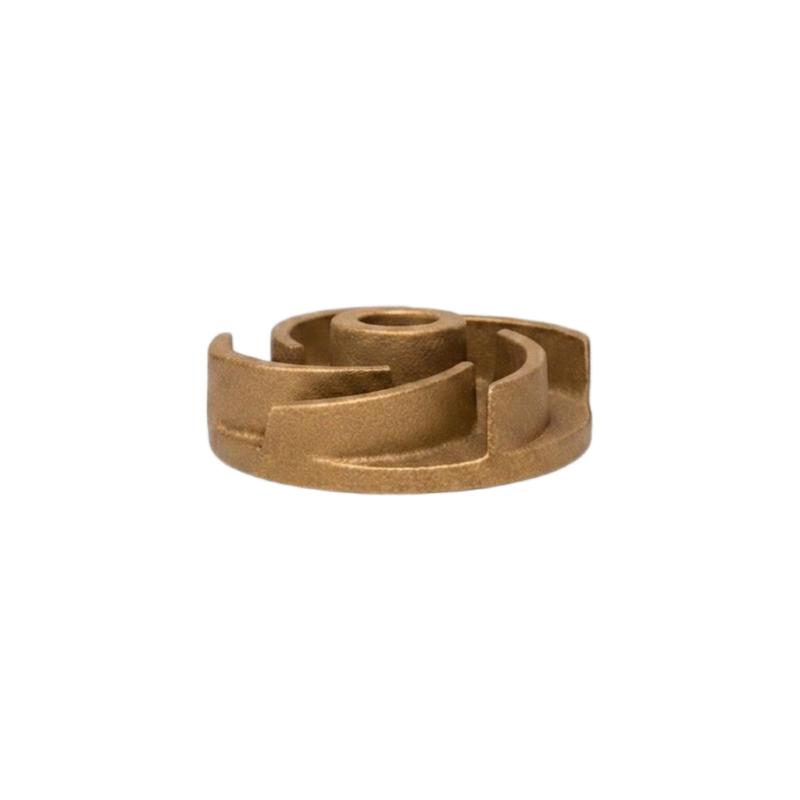

The semi-open bronze pump impellers shown above are representative examples of FlexiTurn’s precision CNC machining capabilities for fluid power components. Every impeller is machined strictly to your exact CAD and hydraulic specifications, delivering dimensionally accurate, hydraulically optimized bronze parts tailored for centrifugal pumps, circulation systems, and fluid transfer applications.

Machining Capabilities

We manufacture bronze pump impellers from precision cast blanks through full in-house CNC machining, ensuring accurate blade profiles, smooth flow passages, and precise assembly fits.

• CNC Turning: Finishes the central hub bore, outer diameter, and mounting faces to guarantee concentricity, dimensional accuracy, and proper alignment with pump shafts.
• Multi-Axis CNC Milling: Machines blade airfoils, flow channels, and curved profiles. 3-axis for simple straight-blade impellers, 4-axis for standard twisted-blade models, and 5-axis simultaneous machining for high-performance impellers with complex hydraulic geometries, completed in a single setup for maximum profile accuracy.
• Secondary Operations: Precision grinding for ultra-tight tolerance bore surfaces, drilling for balance holes, and optional flow path polishing for sanitary and high-efficiency applications.

Materials & Dimensional Tolerances

We work with premium pump-grade bronze alloys selected for corrosion resistance, wear resistance, and long hydraulic service life, with full material batch traceability for every order.

• Standard Materials: Tin bronze (C93200), aluminum bronze, leaded red brass
• General Machined Features: ±0.02 mm
• Precision Bore & Critical Fitting Surfaces: ±0.005 mm
• Surface Finish: Ra 1.6–3.2 μm for standard machined surfaces; Ra 0.8 μm for polished flow paths

Why Choose FlexiTurn for Custom Bronze Impeller Machining?

In-House Multi-Axis Precision Machining: Complete 3/4/5-axis CNC milling, lathe turning, and surface grinding under one roof. Single-setup multi-axis machining eliminates positioning errors across complex twisted blade airfoils, guaranteeing strict concentricity, precise dynamic balance, and direct-factory pricing with zero middleman markups.

Free 24-Hour Hydraulic DFM Evaluation: Every submitted CAD file receives a complimentary Design for Manufacturability review within 24 hours. Our engineering team evaluates flow passage accessibility, blade wall uniformity, and critical bore tolerances to protect your intended hydraulic performance while optimizing unit cost.

Rapid Toolless Prototyping & Zero MOQ: Machine functional prototype impellers directly from solid bronze plate or billet stock in 1–3 business days. Skip costly, long-lead casting mold investments for trial orders, one-off replacements, or design iterations.

Certified Bronze Alloys & Full Traceability: Complete material compliance across C95400 aluminum bronze, C93200 tin bronze, and nickel-aluminum bronze. Every shipment includes raw material batch certifications and 3D CMM inspection reports for tight-tolerance fitting surfaces.

Seamless Prototype-to-Production Scaling: Validate hydraulic designs quickly with single-piece CNC prototypes, then transition smoothly into medium- and high-volume production runs with stable process control and consistent batch repeatability.

How to Get Started

1. Submit CAD Drawings: Upload your 2D (PDF/DWG) or 3D (STEP/IGES) CAD files, along with material grade, tolerance requirements, target quantity, and performance specifications.
2. Fast DFM & Proposal: Receive a detailed DFM engineering assessment and transparent factory quotation within 24 hours.
3. Prototype Production: Rapid prototype production with full inspection reporting for design and performance validation.
4. Volume Production: Scale to volume production with consistent process control and multi-point quality inspection.
5. Global Express Delivery: Protective packaging shipped directly to your facility worldwide.

Partner with FlexiTurn for precision, reliability, and end-to-end CNC machining support for your custom bronze pump impeller projects. Contact our engineering team today for your free design review and quote!

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
