High Precision CNC Machined Inconel 625 Parts

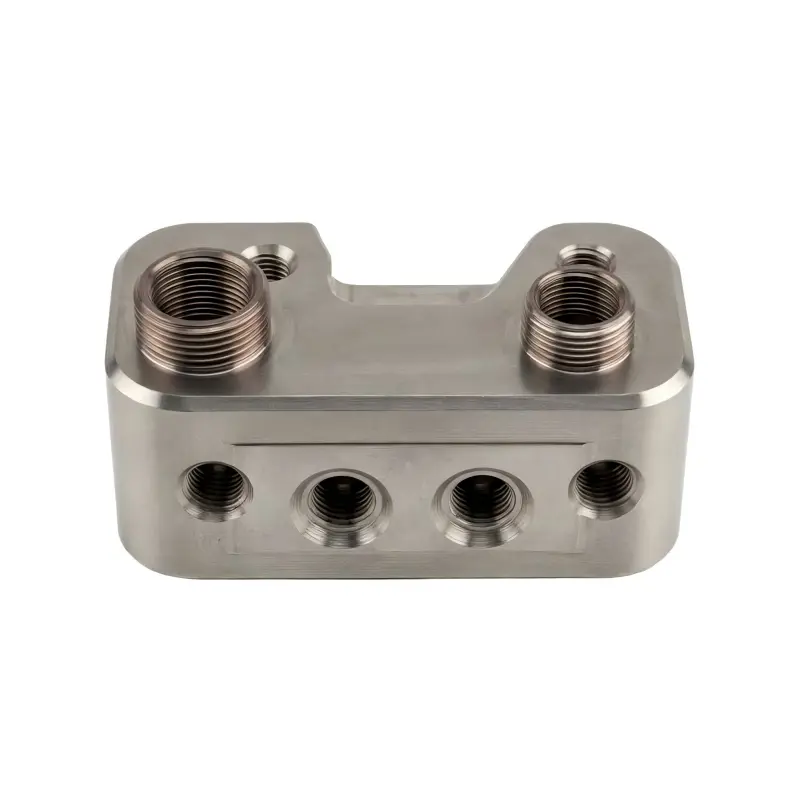

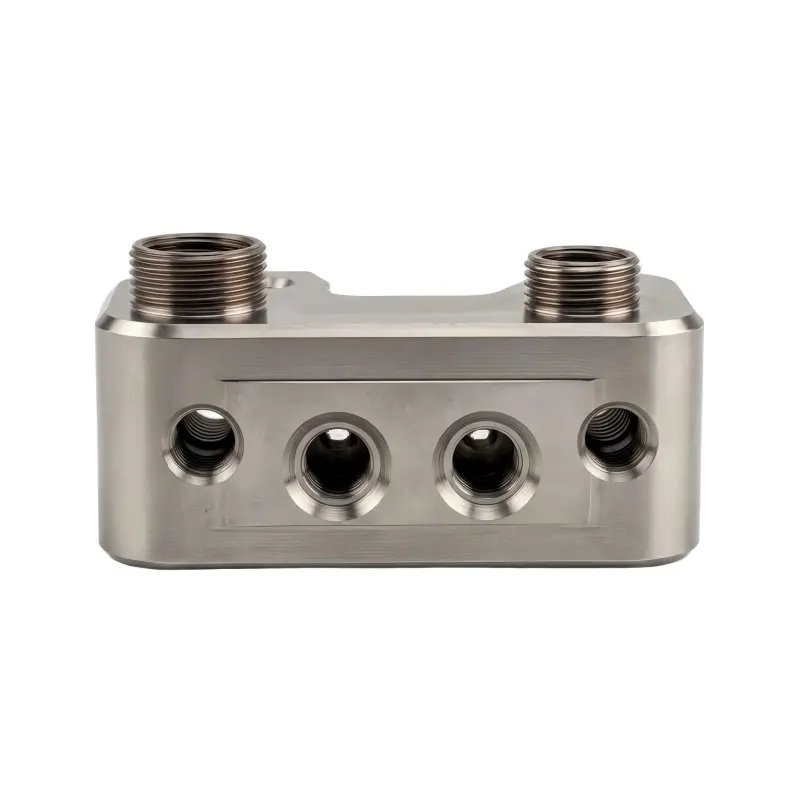

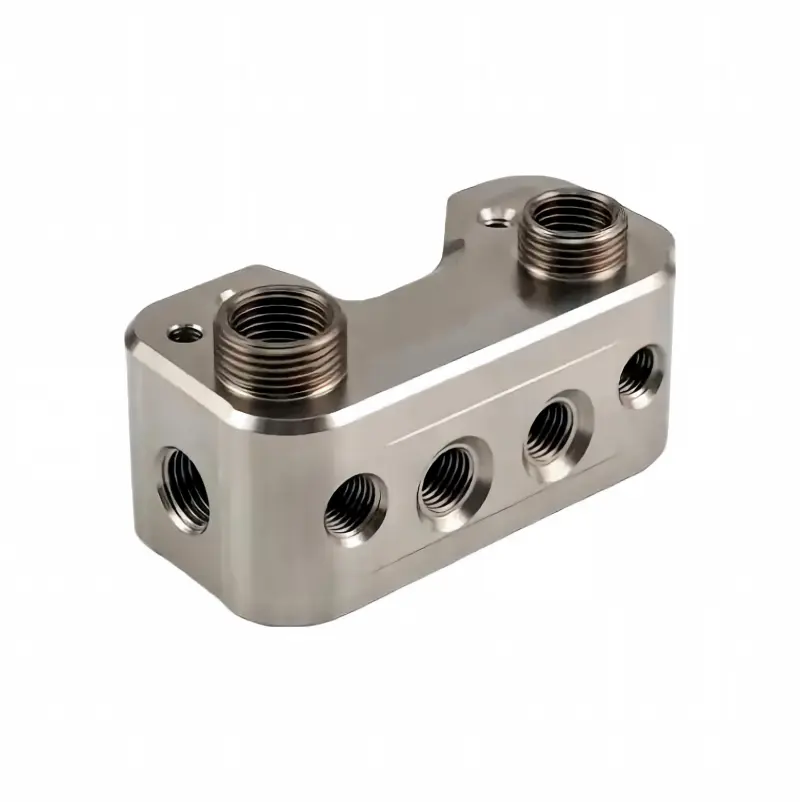

The Inconel 625 multi-port fluid manifold presented herein is a representative component demonstrating FlexiTurn’s precision CNC machining capabilities for nickel-based superalloy parts. The component integrates a stepped rectangular body, externally threaded top ports, multi-directional internally threaded side ports, and cross-drilled internal flow passages. All dimensional specifications, port positions, and sealing surface geometries are produced exclusively to customer-supplied 2D/3D CAD data.

FlexiTurn operates as a precision CNC machining service provider. Our core deliverable is the manufacturing process itself: converting your engineering design into fully functional Inconel 625 components with controlled port alignment, thread accuracy, sealing face flatness, and internal passage integrity. We support order volumes spanning from single-piece prototypes and low-volume development batches to full serial production.

Production of this Inconel 625 manifold requires a sequence of precision machining operations, verifying FlexiTurn’s process control and specialized competence in superalloy manufacturing:

• 4-axis / 5-axis CNC milling for stepped body profiling, side port face preparation, and mounting feature machining
• CNC turning for external thread generation and precision sealing face finishing
• CNC deep hole drilling for multi-directional cross bores and internal flow passages with consistent positional accuracy
• Precision tapping for internal and external threads with controlled pitch diameter and thread finish
• Full deburring and edge conditioning at cross-bore intersections and sealing surfaces
• Optional passivation treatment for enhanced corrosion resistance and surface stability

FlexiTurn regularly machines a full range of nickel-based superalloys for high-temperature, corrosion-critical applications, including Inconel 625 (UNS N06625), Inconel 718, and Inconel 600. Alternative high-performance materials include 316L / 17-4PH stainless steel, duplex stainless steel, and titanium alloys. All raw materials are sourced from accredited suppliers with complete batch traceability and mill test certificates (MTCs).

Inconel 625 is specified for its exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking in chloride-bearing environments, combined with retained mechanical strength at elevated temperatures. These properties make it the preferred material for semiconductor wet process chambers, corrosive chemical fluid handling systems, and high-temperature industrial equipment.

FlexiTurn maintains strict dimensional control on all critical features of Inconel 625 components. For precision manifold blocks and comparable parts, standard tolerances are held to ±0.02 mm for bore diameter and port position; tolerances as tight as ±0.005 mm are achievable for high-precision applications upon specification.

All orders undergo mandatory in-process dimensional verification and final full inspection. Material test certificates and dimensional inspection reports are available on request. Our manufacturing quality management system is certified to ISO 9001:2015 standards.

Inconel 625 is a nickel-chromium-molybdenum superalloy with inherent machining challenges, including high work hardening rate, low thermal conductivity, and accelerated cutting tool wear. FlexiTurn deploys dedicated superalloy machining protocols: wear-resistant coated carbide tooling, high-pressure through-tool coolant delivery for efficient chip evacuation and thermal management, and rigid workholding to minimize machining deflection. These controls mitigate work hardening, preserve thread form accuracy, and maintain sealing face integrity across both prototype and production runs.

FlexiTurn is a China-based precision CNC machining service provider focused exclusively on custom manufactured components. We partner with customers worldwide to deliver high-precision superalloy machined parts on schedule and at competitive cost.

• Full custom manufacturing executed strictly to customer CAD data and engineering specifications
• Scalable production: prototype validation, low-volume pilot runs, and high-volume serial production
• Multi-axis machining capacity: 3-axis, 4-axis, and 5-axis CNC turning and milling
• Specialized process expertise in Inconel 625, 718, and other difficult-to-machine nickel superalloys
• Pre-production DFM (Design for Manufacturability) review to optimize port layout, feature accessibility, and production cost
• Dedicated project management for every order with single-point communication
• Certified raw materials with complete batch traceability and material documentation
• Reliable lead times with transparent production scheduling

Our precision superalloy machining services serve a wide range of industries requiring corrosion-resistant, high-temperature components, including semiconductor equipment (wet process chambers and fluid distribution systems), oil & gas, chemical processing, and industrial fluid power. For aerospace and automotive applications, FlexiTurn supports both prototype development and serial production requirements.

If you require custom CNC machined Inconel 625 parts or comparable precision superalloy components, submit your CAD drawings and project specifications to FlexiTurn. Our engineering team will conduct a full design review, provide actionable DFM feedback, and deliver a detailed formal quotation.

Contact FlexiTurn today to discuss your precision CNC machining requirements.

FlexiTurn – Precision Machining, Delivered with Trust.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
