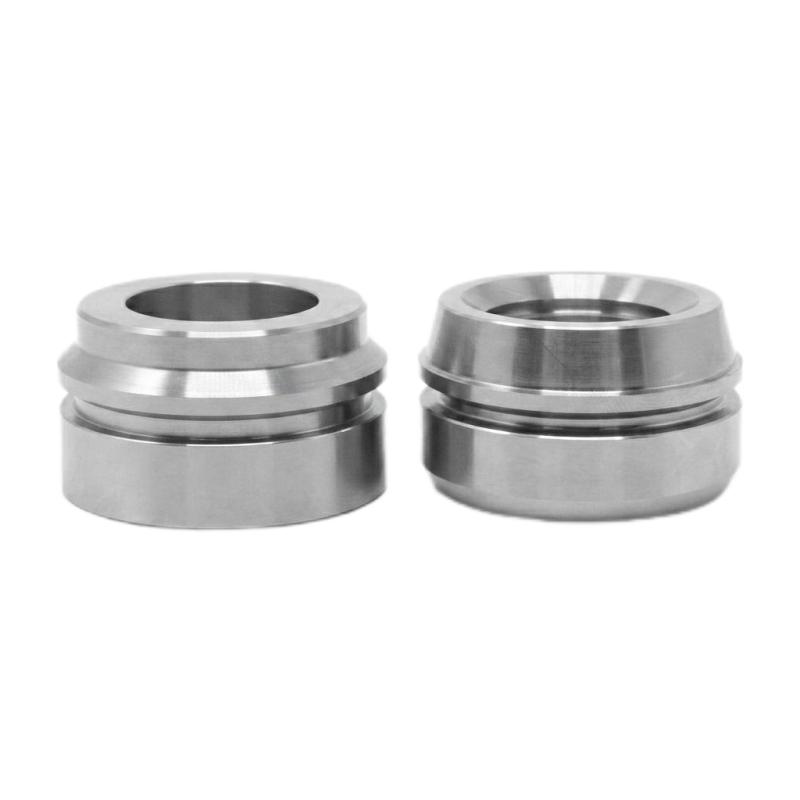

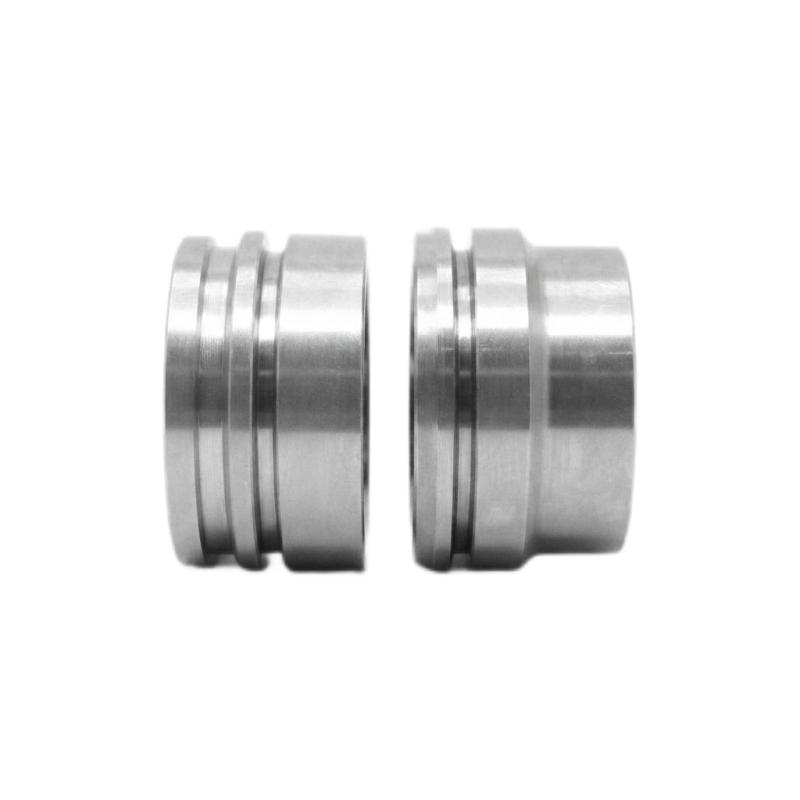

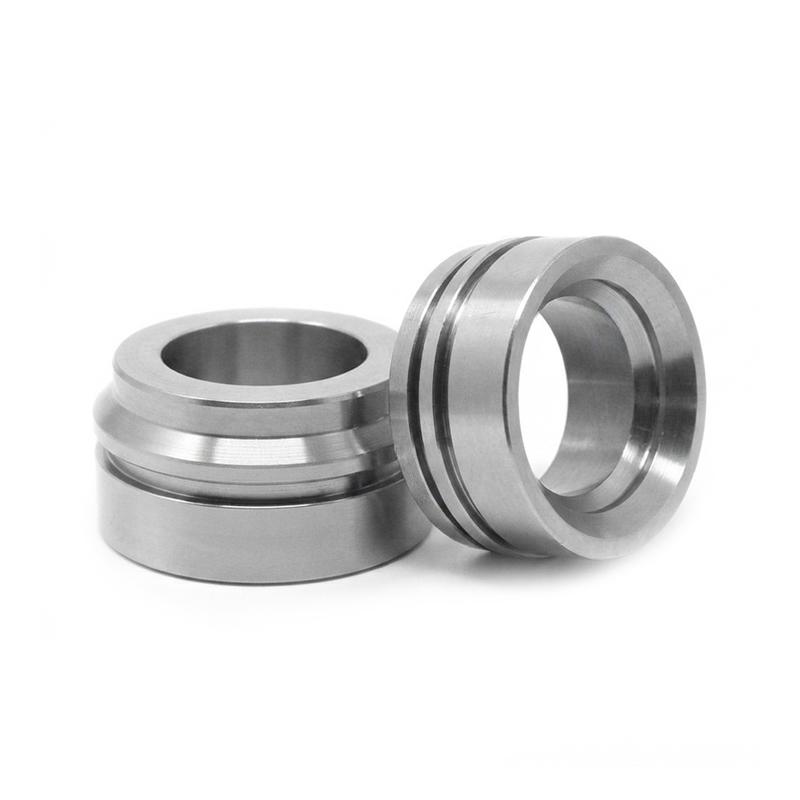

CNC Machined Inconel 625 Valve Components

FlexiTurn provides custom precision CNC machining and grinding services for Inconel 625 valve and flow control components, such as grooved precision seal seats. We combine superalloy-specific turning protocols, low-force fixturing, and precision grinding to produce sealing-grade dimensional accuracy for demanding high-pressure and corrosive environments.

FlexiTurn executes the full production sequence in-house, with process parameters calibrated for Inconel 625 valve components to support repeatable sealing performance.

• CNC Turning (Rough Forming): All rotational features — outer diameter profiles, seal grooves, internal bore, and chamfers — are rough machined in a single lathe setup with controlled stock allowance for finish grinding. Cutting speeds, feeds, carbide tooling, and high-pressure coolant are selected to minimize work hardening, suppress built-up edge, and control subsurface damage. Stress-relief heat treatment is applied prior to finishing to stabilize material geometry and reduce residual machining stress.
• Precision CNC Grinding (Finish Machining): Critical sealing faces and bore diameters are finish ground on dedicated CNC grinders. This corrects turning-induced distortion, achieves tight flatness and concentricity tolerances, and delivers a uniform surface finish required for reliable sealing. Face grinding and internal/external cylindrical grinding are performed in calibrated setups to maintain geometric alignment.
• Secondary Operations: Precision lapping for ultra-high-seal applications, pickling and passivation, and dimensional verification are available upon request.

FlexiTurn works with certified mill-run Inconel 625, providing original mill test reports and batch traceability for every order.

• Standard material: Inconel 625 (UNS N06625); alternative nickel superalloy grades available upon request
• General dimensional tolerance: ±0.02 mm for features ≤ 50 mm nominal size
• Sealing face flatness: ≤ 0.002 mm for faces ≤ 50 mm diameter
• Geometric tolerances: Bore-OD concentricity ≤ 0.01 mm for features ≤ 50 mm OD
• Surface finish: Ra 1.6–3.2 μm for standard turned surfaces; Ra 0.2–0.8 μm for ground sealing faces

FlexiTurn’s CNC grinding processes deliver micron-level flatness control and controlled surface quality for sealing applications, supporting consistent seal performance and extended service life.

Repeated re-clamping is a common cause of concentricity error in round valve components. FlexiTurn completes all primary turning operations in one lathe setup and maintains aligned fixturing through grinding, reducing cumulative positional error and supporting consistent bore-to-OD concentricity.

FlexiTurn’s machining processes are developed for nickel superalloys, with validated cutting data, dedicated tooling, and high-pressure coolant systems. This supports clean, controlled surfaces and helps preserve the alloy’s corrosion and mechanical properties.

All operations — from incoming material certification through turning, grinding, and final inspection — are performed under FlexiTurn’s direct control without subcontracting. Material batch traceability is maintained from mill certificate to finished part. Parts can be supplied with NACE MR0175 / ISO 15156 documentation upon request for oil and gas service.

Every CAD submission receives a Design for Manufacturability assessment focused on valve service conditions and Inconel 625 processing constraints. Our engineering team evaluates seal face geometry, groove dimensions, tolerance allocations, and corrosion allowance to reduce production risk.

All production adheres to FlexiTurn’s ISO 9001:2015-aligned quality management system. Every shipment includes dimensional inspection records, flatness verification data, and original mill test reports. Additional inspection and certification packages are available upon request.

1. Submit your 2D (PDF/DWG) or 3D (STEP/IGES) CAD files, along with material grade, tolerance requirements, order quantity, and service environment details.
2. Receive a valve-specific DFM assessment and factory-direct quotation from FlexiTurn.
3. Prototype parts are manufactured and delivered with inspection reports and material certification for design validation and seal performance testing.
4. Transition to volume production with locked process parameters and in-process dimensional and flatness verification.
5. Global shipping with protective packaging, delivered directly to your facility.

For precision CNC machined Inconel 625 valve components supported by sealing-grade grinding expertise and structured quality control, contact FlexiTurn. Submit your CAD files to request a project assessment and machining quote.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
