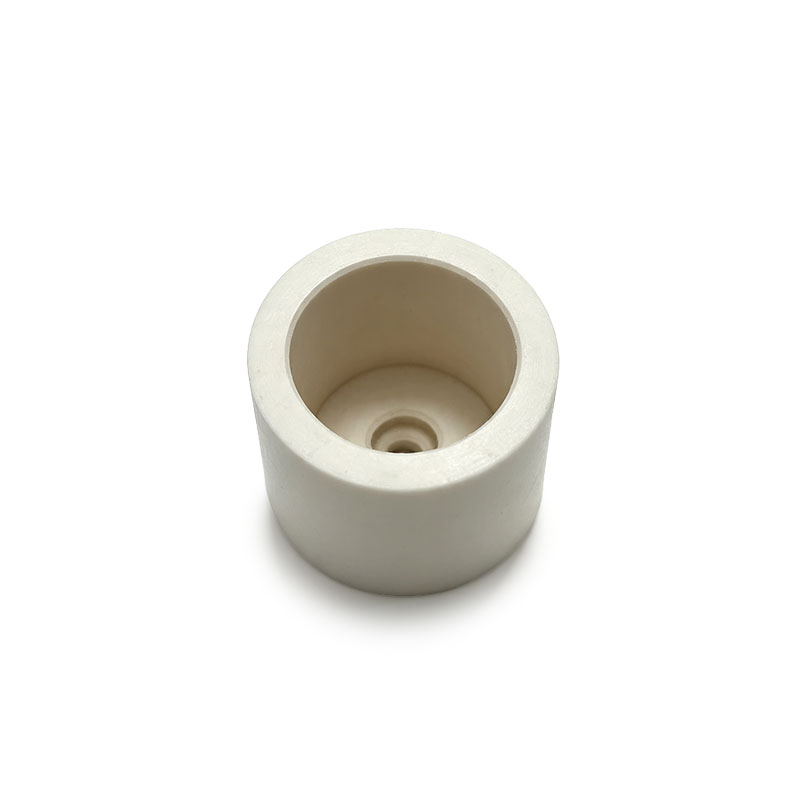

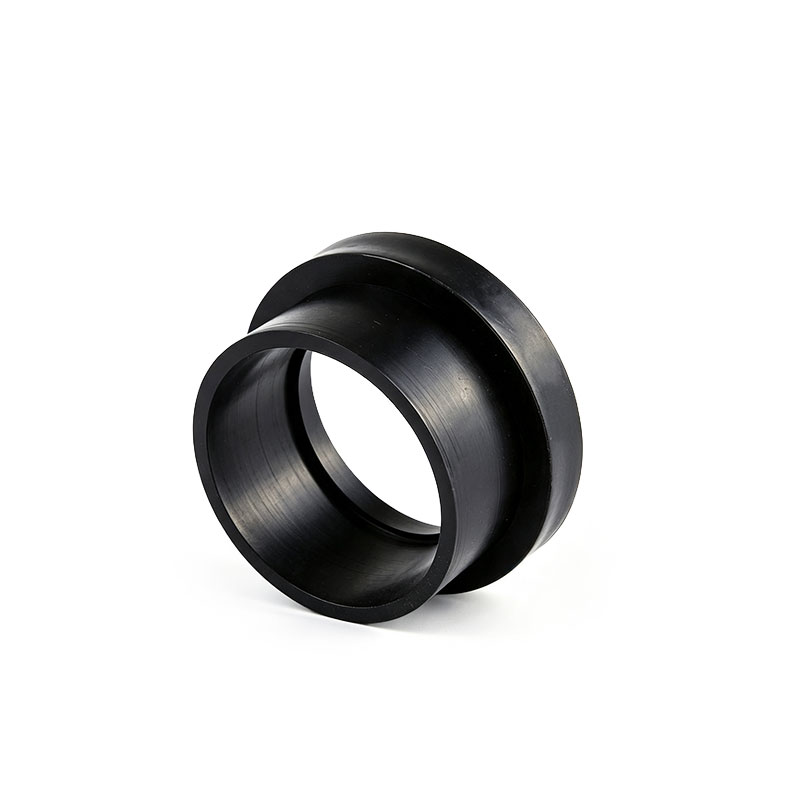

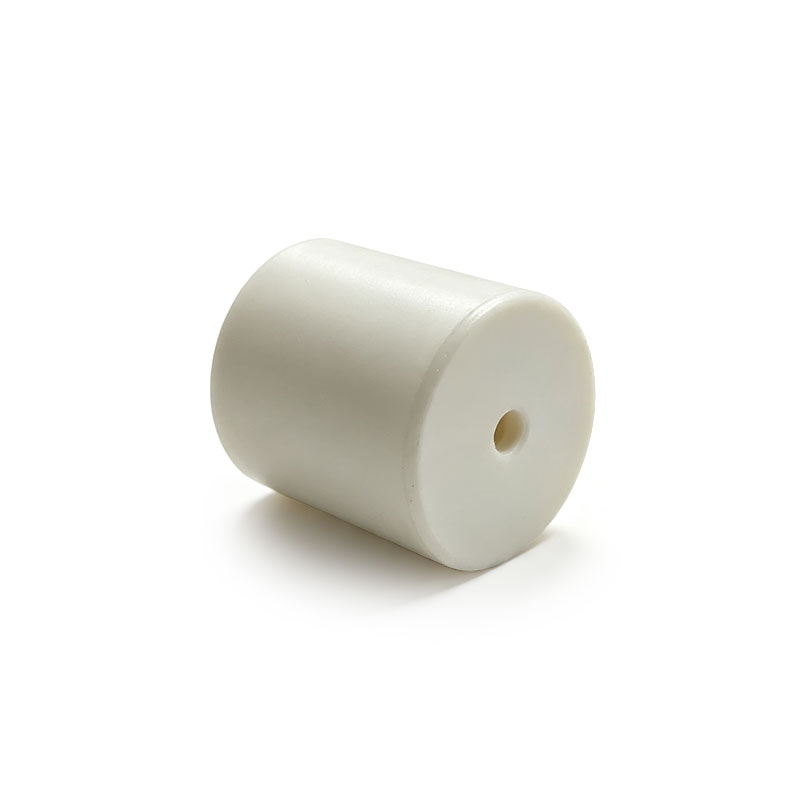

Industrial Plastic Insulating Bushing CNC Machined Semiconductor Component

In semiconductor wafer fabrication, standard metal components are often unsuitable for environments exposed to high-voltage electrical fields, aggressive chemical cleaning, and reactive etching plasmas. High-performance engineering plastics provide the necessary structural support while acting as critical barriers against contamination and electrical failure.

At FlexiTurn, we specialize in the precision CNC machining of Industrial Plastic Insulating Bushings and sleeves for advanced semiconductor equipment. Whether you are building Chemical Vapor Deposition (CVD) chambers, wafer handling robots, or ion implantation systems, we machine premium technical polymers—such as PEEK, PTFE, Vespel, and POM—into ultra-precise components that safeguard your sensitive silicon wafers and ensure continuous, defect-free production.

Key Advantages of Our Semiconductor Plastic Bushings

Ultimate Electrical Isolation: Our precision-machined bushings provide exceptional dielectric strength. They effectively isolate high-voltage components, prevent destructive electrical arcing within vacuum chambers, and eliminate the risk of Electrostatic Discharge (ESD) damaging delicate microchips.

High Purity & Low Outgassing: Contamination is the enemy of semiconductor manufacturing. We process high-grade, unfilled polymers that exhibit extremely low outgassing rates in high-vacuum environments, ensuring no particulate shedding or chemical leaching contaminates the cleanroom or the wafer surface.

Aggressive Chemical & Plasma Resistance: Materials like PTFE and PEEK are highly inert. Our machined insulators easily endure repetitive exposure to harsh halogen gases, aggressive wet-bench cleaning acids (like HF and Piranha solutions), and reactive oxygen plasmas without degrading or swelling.

Tight Tolerance Plastic Machining: Plastics behave very differently from metals during cutting, often experiencing thermal expansion and stress deformation. We utilize specialized sharp tooling, precise coolant control, and optimized CNC turning parameters to hold strict dimensional tolerances and concentricity on all plastic bushings, ensuring perfect alignment during assembly.

Applications

Our precision CNC machined plastic components are essential for a wide range of front-end and back-end semiconductor processes:

• Wafer Handling Robot Arm Insulators & Pivot Bushings
• Vacuum Chamber Electrical Feedthrough Sleeves
• Wet Process Station & Chemical Delivery System Fittings
• Ion Implanter & CVD/PVD Equipment Thermal Standoffs
• CMP (Chemical Mechanical Polishing) Tool Wear Rings

Comprehensive Engineering & DFM Support

We do not merely execute standard blueprints; we provide full Design for Manufacturability (DFM) analysis. Our engineering team collaborates closely with you to optimize structural geometries, refine critical tolerances, and improve assembly logic. By identifying potential manufacturing bottlenecks early in the design phase, we help reduce production costs and shorten lead times without compromising product performance.

Expert Material Selection Consulting

Selecting the correct material is the foundation of product success. We offer expert consulting across a vast portfolio of industrial-grade materials, including Aluminum, Stainless Steel, Brass, Copper, Titanium, and advanced Engineering Plastics. We carefully match the material's mechanical strength, thermal properties, and environmental resilience directly to your specific application and working environment.

Advanced CNC Machining Capabilities

Equipped with state-of-the-art multi-axis CNC milling centers and Swiss-type turning lathes, our facility excels at producing highly complex geometries and tight-tolerance components. From rapid prototyping to high-volume mass production, we ensure absolute dimensional consistency, perfect concentricity, and superior surface finishes across every single batch.

Functional & Cosmetic Surface Treatments

To meet both performance and aesthetic requirements, we offer a comprehensive suite of surface finishing solutions. Whether your project requires functional treatments—such as hard anodizing, passivation, and electroplating (Gold, Silver, Nickel) for enhanced corrosion resistance and conductivity—or high-end cosmetic finishes like mirror polishing, bead blasting, and custom color anodizing, we deliver ready-to-assemble components.

Rigorous Quality Control & Industry Compliance

Quality assurance is deeply embedded in every step of our manufacturing workflow. We utilize advanced inspection equipment, including Coordinate Measuring Machines (CMM) and optical comparators, to strictly verify all critical dimensions and GD&T specifications. Furthermore, we provide full material certifications and ensure our manufacturing processes comply with stringent global industry standards, including RoHS and REACH directives.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
