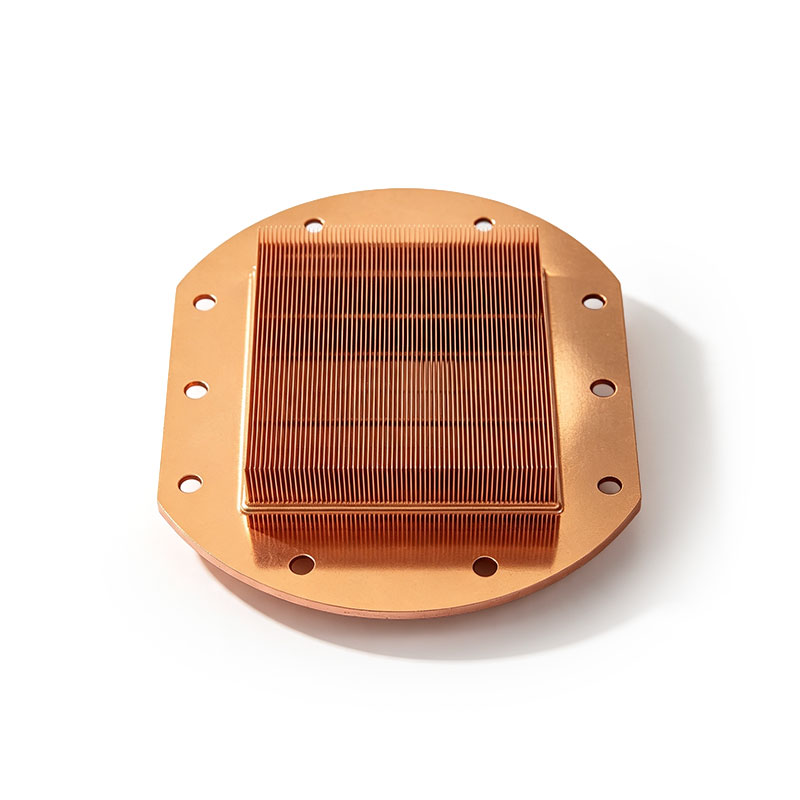

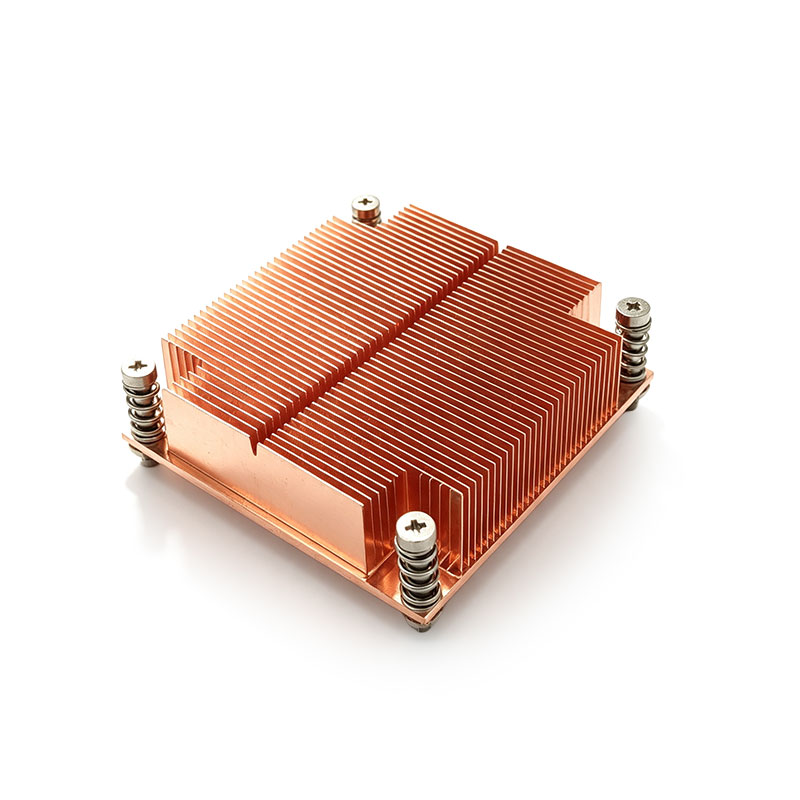

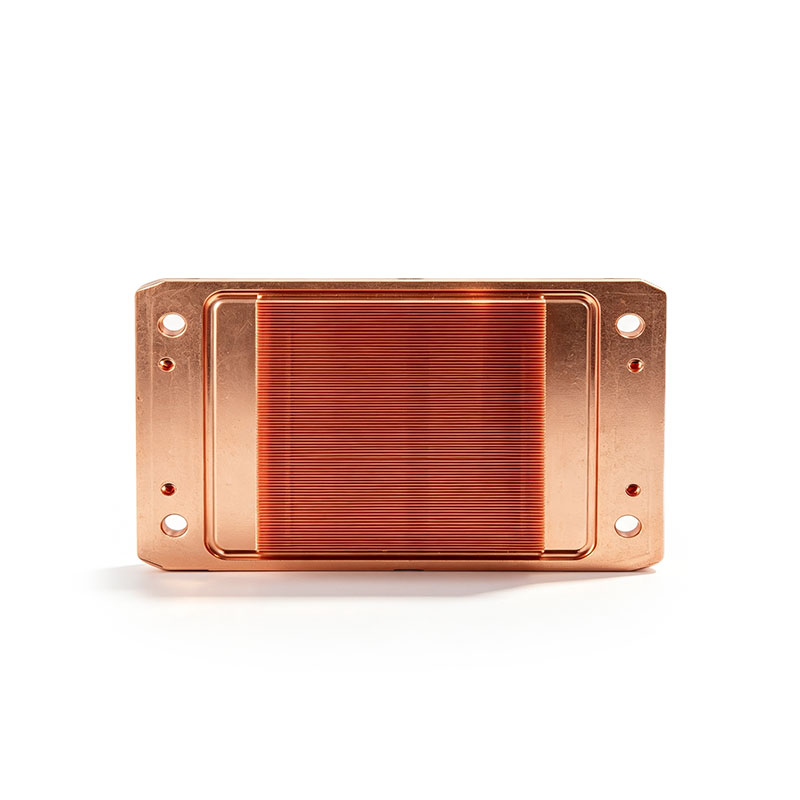

Custom High Density Copper Heat Sink for Semiconductor and Electronic Devices

As semiconductors scale down in size and power densities skyrocket in AI processors, IGBT modules, and 5G telecom equipment, traditional extruded aluminum heat sinks can no longer keep up. Thermal bottlenecking directly degrades electronic performance and drastically shortens component lifespan.

At FlexiTurn, we solve complex thermal challenges by manufacturing Custom High-Density Copper Heat Sinks. By utilizing the advanced Skiving (Skived Fin) process, we slice ultra-thin fins directly from a solid block of pure, oxygen-free copper. This results in a heat sink with an incredibly high surface-area-to-volume ratio and zero interface thermal resistance, delivering maximum forced-air cooling efficiency for your mission-critical electronics.

Key Advantages of Our High-Density Copper Heat Sinks

Monolithic Skived Structure (Zero Thermal Resistance): Unlike bonded, soldered, or folded fin heat sinks, our skived fins are integral to the base. There is no joint material or air gap between the fin and the base, ensuring 100% unimpeded thermal conduction from the heat source to the tip of the fin.

Ultra-High Fin Density & Thinner Profiles: The skiving process allows us to achieve incredibly tight fin pitches (gaps) and ultra-thin fins (down to 0.2mm) that are impossible to extrude. This maximizes the total cooling surface area within a highly compact footprint.

Superior Pure Copper Conductivity: We utilize premium Copper (C11000), which offers a thermal conductivity of nearly 400 W/m·K—almost double that of standard aluminum alloys—allowing for ultra-fast heat spreading from high-power hotspots.

Precision CNC Milled Mating Surfaces: A heat sink is only as good as its contact with the chip. We utilize precision CNC milling to achieve perfect base flatness and micro-surface roughness, minimizing the interface gap and maximizing the efficiency of thermal pastes (TIMs).

Applications

Our high-performance thermal management solutions are designed for intense, continuous-operation environments:

• High-Power Semiconductors & IGBT Modules
• AI Servers, Data Centers, and HPC (High-Performance Computing) CPUs/GPUs
• Telecommunications & 5G Base Station Equipment
• EV (Electric Vehicle) Power Inverters & Battery Management Systems
• High-End LED Lighting & Laser Equipment

Comprehensive Engineering & DFM Support

We do not merely execute standard blueprints; we provide full Design for Manufacturability (DFM) analysis. Our engineering team collaborates closely with you to optimize structural geometries, refine critical tolerances, and improve assembly logic. By identifying potential manufacturing bottlenecks early in the design phase, we help reduce production costs and shorten lead times without compromising product performance.

Expert Material Selection Consulting

Selecting the correct material is the foundation of product success. We offer expert consulting across a vast portfolio of industrial-grade materials, including Aluminum, Stainless Steel, Brass, Copper, Titanium, and advanced Engineering Plastics. We carefully match the material's mechanical strength, thermal properties, and environmental resilience directly to your specific application and working environment.

Advanced CNC Machining Capabilities

Equipped with state-of-the-art multi-axis CNC milling centers and Swiss-type turning lathes, our facility excels at producing highly complex geometries and tight-tolerance components. From rapid prototyping to high-volume mass production, we ensure absolute dimensional consistency, perfect concentricity, and superior surface finishes across every single batch.

Functional & Cosmetic Surface Treatments

To meet both performance and aesthetic requirements, we offer a comprehensive suite of surface finishing solutions. Whether your project requires functional treatments—such as hard anodizing, passivation, and electroplating (Gold, Silver, Nickel) for enhanced corrosion resistance and conductivity—or high-end cosmetic finishes like mirror polishing, bead blasting, and custom color anodizing, we deliver ready-to-assemble components.

Rigorous Quality Control & Industry Compliance

Quality assurance is deeply embedded in every step of our manufacturing workflow. We utilize advanced inspection equipment, including Coordinate Measuring Machines (CMM) and optical comparators, to strictly verify all critical dimensions and GD&T specifications. Furthermore, we provide full material certifications and ensure our manufacturing processes comply with stringent global industry standards, including RoHS and REACH directives.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
