Precision Custom CNC Machined Aluminum Parts

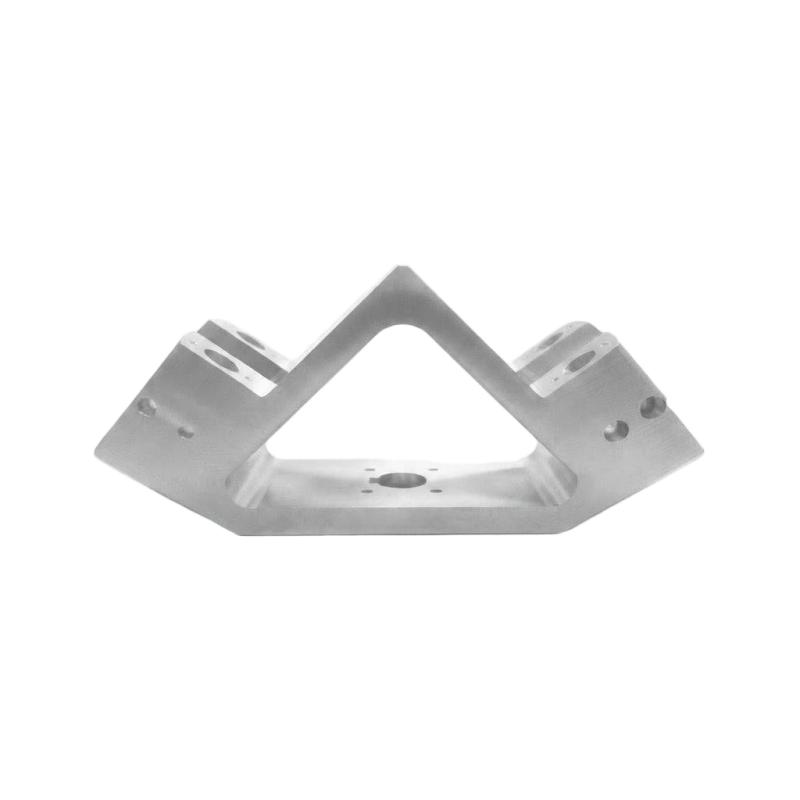

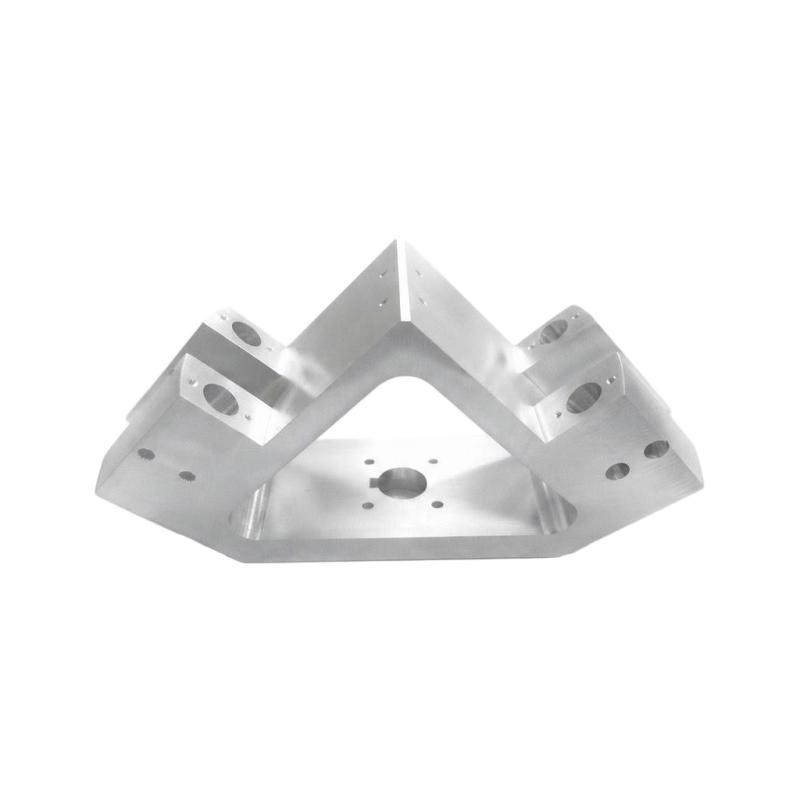

FlexiTurn provides precision 5-axis CNC machining services for custom aluminum precision reference fixtures, including this multi-sided angular mounting bracket engineered for precision alignment, multi-station component integration and metrology reference in semiconductor inspection, automated vision systems and industrial metrology equipment.

This high-precision aluminum fixture features multi-angled mounting faces, multi-directional precision bores, and integrated reference datums. The part requires strict positional accuracy, consistent angular tolerances, and long-term dimensional stability to support precise alignment in demanding operating environments.

5-Axis CNC Milling Capabilities

• Multi-Angle Contour & Profile Milling: 5-axis simultaneous machining delivers continuous tool access to multi-angled faces and internal recesses, reducing clamping operations and maintaining consistent feature alignment across all reference surfaces.
• Multi-Directional Precision Bore Machining: Cross-drilling and precision reaming produce coaxial and angular reference bores with controlled surface finish and diameter tolerance for reliable precision assembly.
• Aluminum Precision Process Calibration: Spindle speeds, feed rates and carbide tool geometries are fine-tuned for 6061-T6 aluminum to control micro-burr formation, suppress machining chatter and deliver uniform surface quality on reference faces.
• Optimized Fixturing Strategy: Coordinated workholding and indexing methods minimize clamping operations, reducing cumulative alignment error while maintaining full tool access to all critical reference and mounting features.

Quality Assurance & Dimensional Control

Every precision aluminum fixture is manufactured under FlexiTurn’s ISO 9001:2015-aligned quality management system:

• 100% Raw Material Traceability: Full batch tracking for aluminum billets, backed by original Mill Test Certificates with verified material properties.
• In-Process Geometric Inspection: In-process dimensional checks at all critical machining stages to verify feature positions, angular alignment and datum flatness.
• Final CMM Verification: Multi-axis coordinate measuring machine (CMM) inspection confirms bore true position, angular tolerances and overall geometric compliance.
• 100% Burr & Fit Inspection: Visual edge screening and Go/No-Go gauge verification ensure clean edges and consistent bore fit.

Why Choose FlexiTurn

• 5-axis precision machining expertise: Dedicated 5-axis CNC milling platforms with aluminum-optimized tooling deliver complex multi-angled reference geometries with minimal clamping, delivering superior positional accuracy and reduced lead times.
• Controlled precision manufacturing: Optimized fixturing and machining strategies minimize cumulative alignment error and maintain tight geometric tolerances for reliable micron-level assembly performance.
• 100% in-house machining control: All core milling, drilling, reaming, deburring and dimensional inspection operations are performed on-site with no subcontracting, ensuring consistent quality and reliable lead times across prototype and production volumes.
• Scalable production capacity: Seamless transition from rapid prototype quantities and low-volume validation runs to medium-volume serial production, with consistent process standards across all batch sizes.
• Cost-optimized solutions: Leveraging China’s mature high-grade aluminum supply chain and optimized 5-axis machining workflows, we deliver globally competitive pricing without compromising dimensional accuracy, geometric stability or surface quality.
• Dedicated technical project management: Each customer is assigned a dedicated project manager to provide transparent communication, regular progress updates and responsive engineering support from initial quotation through final delivery.
• Strict intellectual property protection: All customer designs, drawings and project data are managed under strict information security protocols. NDAs are executed upon request to fully protect your proprietary specifications.

Submit your 2D/3D CAD drawings (STEP/IGES/PDF) with material requirements, tolerance specifications and target batch quantities. FlexiTurn provides technical DFM feedback and direct-factory quotations within 24 hours.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
