CNC Machined Glass Ceramic Components

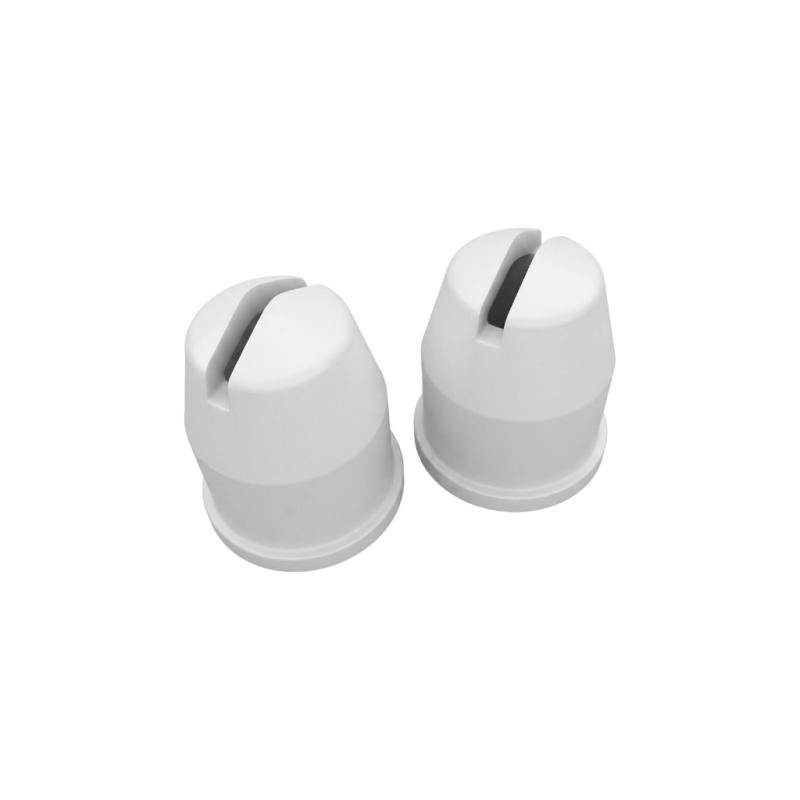

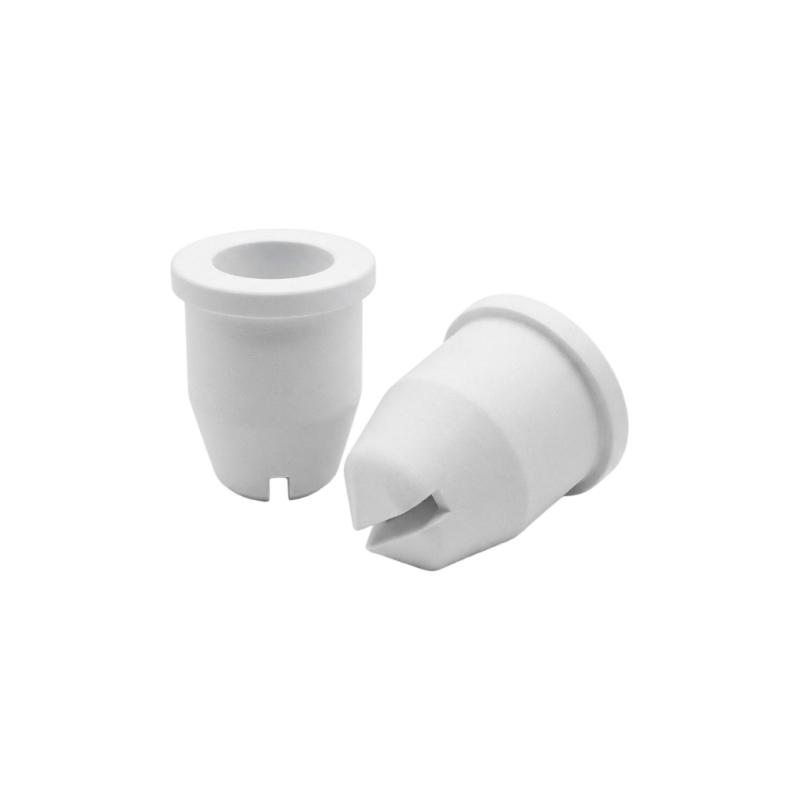

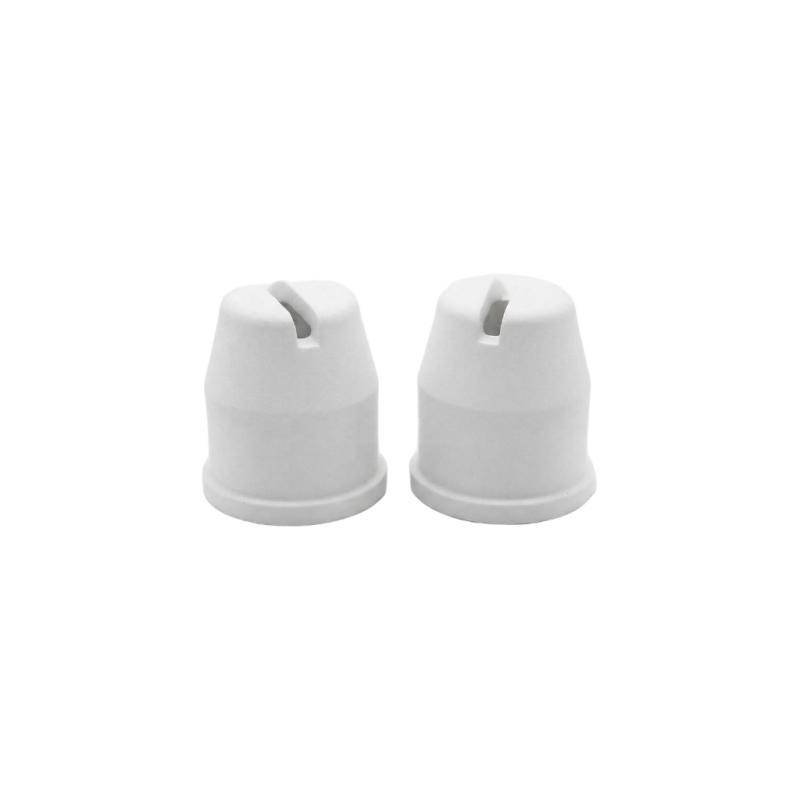

FlexiTurn provides precision CNC diamond grinding services for high‑hardness brittle engineering ceramics, delivering custom machined glass ceramic components including this slotted flanged bushing. Machining tapered profiles, internal bores and narrow locating slots on ceramic substrates requires controlled thermal management and specialized diamond tooling to minimize edge chipping and subsurface micro‑cracking. Our custom precision ceramic parts are engineered for electrical insulation, high‑vacuum and extreme thermal applications.

Precision Ceramic Machining & Grinding Processes

• Single-Setup Rotational Machining: Tapered outer diameters (OD), flange faces, and internal bores are turned/ground using high-speed diamond tooling in a single setup. This eliminates re-clamping runout and guarantees strict bore-to-flange concentricity.
• Indexed Slot Profiling: Top locating slots are machined via indexed multi-axis diamond milling using controlled step-over feeds, suppressing entry/exit edge chipping along brittle slot corners.
• Subsurface Damage Control: Calibrated spindle speeds, high-pressure coolant, and diamond wheel grit selection mitigate mechanical shock, preventing micro-fractures in the ceramic matrix.
• Surface Lapping & Stress Relief: Optional precision lapping achieves surface finishes down to Ra < 0.2 μm, removing residual micro-stresses and improving hermetic sealing capability.

Materials & Technical Specifications

Supported Ceramics: Machinable Glass Ceramic (Macor equivalent), Alumina ($Al_2O_3$ 95%–99.8%), Zirconia ($ZrO_2$), Silicon Nitride ($Si_3N_4$), Silicon Carbide ($SiC$)

Dimensional Tolerances: ±0.005 mm on critical bores & OD steps; ±0.01 mm on general features

Edge Chipping Control: Chipping threshold ≤ 0.05 mm (Verified under 50x optical magnification)

Geometric Tolerances: Concentricity ≤ 0.005 mm; Flange Flatness ≤ 0.003 mm; Perpendicularity ≤ 0.008 mm

Surface Finish: Ra 0.4–0.8 μm (Standard Ground); Ra < 0.2 μm (Precision Lapped)

Quality Assurance & Material Traceability

Every batch produced under FlexiTurn’s ISO 9001:2015-aligned quality management system undergoes dedicated brittle-material verification:

• 100% Material Certification: Raw material batch traceability supported by original mill/sintering test certificates.
• Optical Chipping Inspection: 100% microscopic inspection of slot edges, holes, and chamfers at 20x–50x magnification to confirm zero propagation-critical micro-defects.
• CMM Dimensional Verification: Multi-axis CMM verification of tapered geometry, hole positions, and flange runout.

Why Choose FlexiTurn

Specialized Ceramic Processing Know-How: Custom cutting parameters, low-vibration toolholders, and diamond abrasive selection prevent cleavage tearing and matrix spalling.

• Multi-Axis Precision: Integrated 3-axis and 5-axis ceramic grinding/milling platforms handle complex 3D profiles and cross-slot features without multiple fixturing steps.
• 100% In-House Production: From material preparation and diamond machining to surface lapping and optical inspection, all processes are managed on-site with zero subcontracting.
• Free 24-Hour DFM Engineering Review: Engineering evaluations analyze corner radii, wall transitions, and stock allowances to eliminate high-stress zones and reduce machining cycle times.
• Strict Intellectual Property Protection: All customer CAD files, drawings, and technical parameters are managed under encrypted data security, with NDAs executed prior to drawing transfer.

Partner with FlexiTurn

Submit your 2D/3D CAD drawings (STEP/IGES/PDF) with material grade, surface finish requirements, and batch quantities. FlexiTurn delivers technical DFM reviews and direct-factory quotations within 24 hours.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
