Custom Precision CNC Machined Magnesium Alloy Parts

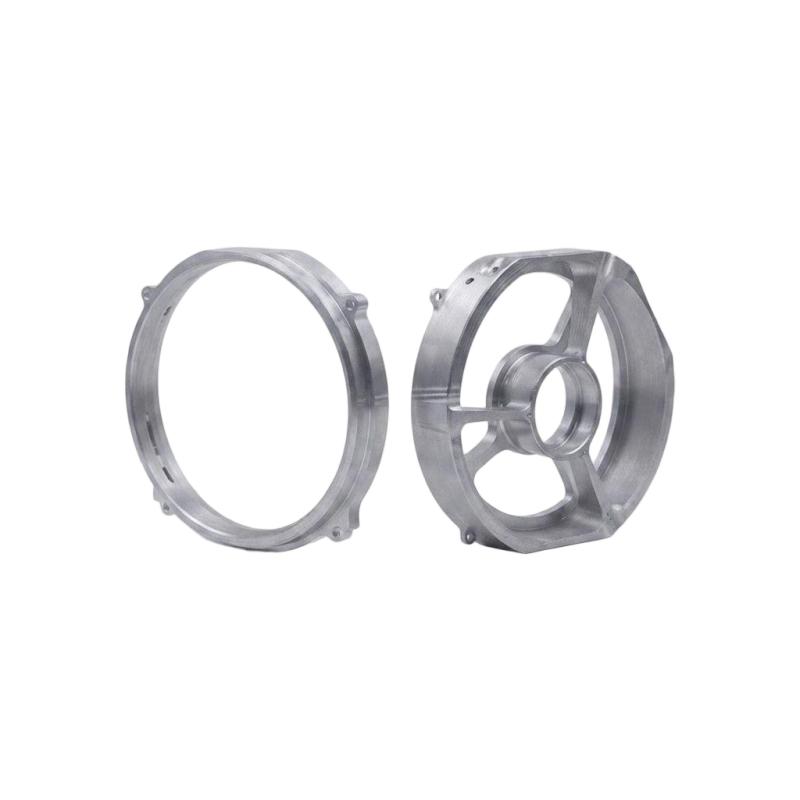

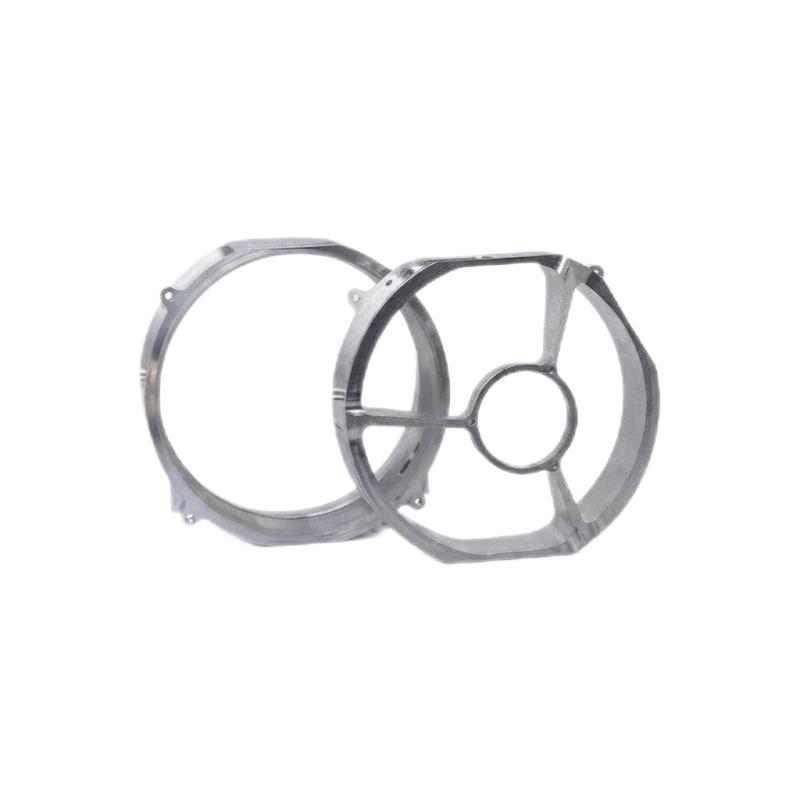

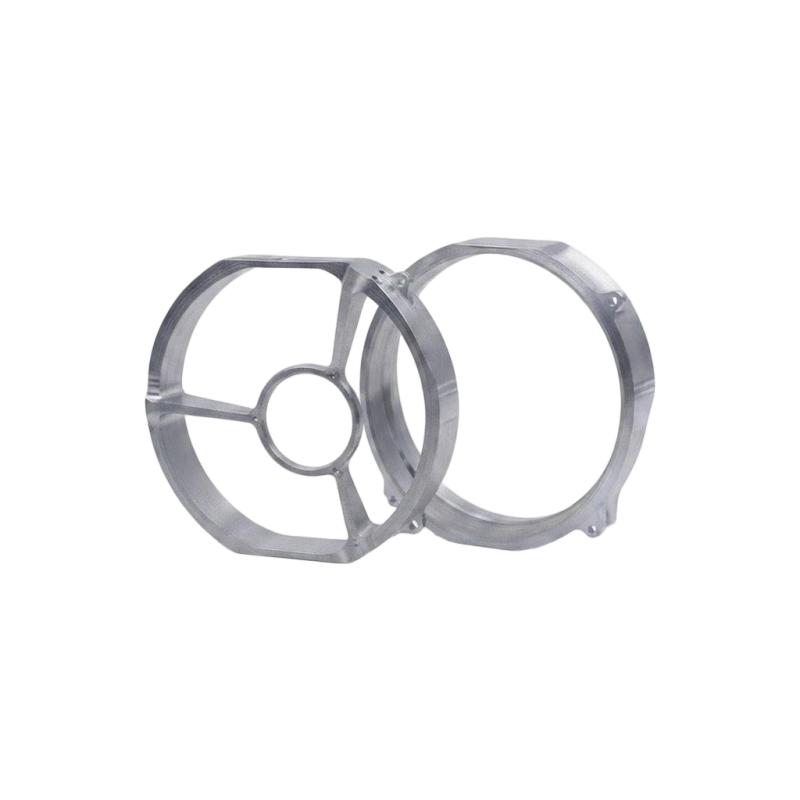

FlexiTurn provides precision CNC machining for wrought magnesium alloy components, such as spoked optical support frames. AZ31B offers a high strength-to-weight ratio and excellent vibration damping, but its reactivity and low melting point make thin-wall machining demanding. Our magnesium-specific milling processes and low-distortion fixturing support consistent geometric accuracy and controlled surface quality for optical-grade applications.

FlexiTurn executes the full production sequence in-house, with process parameters and fixturing engineered specifically for wrought magnesium alloys to support repeatable accuracy and minimal residual deformation.

• 4-Axis CNC Milling: All primary features — inner and outer ring profiles, radial support spokes, mounting bosses, and mating faces — are completed in a single setup on 4-axis machining centers. This reduces re-clamping positional error and clamping-induced distortion in thin-wall sections. Cutting speeds, feeds, carbide tooling, and minimum quantity lubrication (MQL) cooling are calibrated for magnesium to minimize surface burning, suppress built-up edge, and control cutting heat.
• Precision Drilling & Tapping: Mounting through holes and threaded holes are machined with calibrated feeds and speeds, with controlled chip evacuation to avoid friction-induced ignition risk. All hole edges are deburred and blended to reduce stress risers.
• Secondary Operations: Vibratory deburring, surface finishing, and magnesium-specific protective treatments including micro-arc oxidation (MAO) and hard anodizing are available upon request to enhance corrosion resistance and surface wear performance.

FlexiTurn works with certified wrought magnesium alloys, providing original mill test reports and batch traceability for every order.

Standard material: AZ31B wrought magnesium alloy; alternative grades including AZ91D and WE43 available upon request

General dimensional tolerance: ±0.02 mm for features ≤ 50 mm nominal size

Geometric tolerances: Concentricity ≤ 0.015 mm for features ≤ 100 mm OD; wall thickness variation ≤ 0.02 mm for thin-wall sections

Surface finish: Ra 1.6–3.2 μm for standard milled surfaces

FlexiTurn’s machining cells are purpose-configured for magnesium alloys, with validated cutting data, low-force soft-jaw fixturing, and MQL cooling systems. This controls cutting heat, minimizes residual stress, and delivers uniform wall thickness and stable geometric form.

Repeated re-fixturing is a common cause of positional error and distortion in thin-wall magnesium frame components. FlexiTurn completes all profile, face, and radial hole features in one 4-axis setup, reducing cumulative fixturing error and supporting concentricity and hole position accuracy for consistent optical alignment.

All operations — from incoming material certification to final inspection — are performed under FlexiTurn’s direct control without subcontracting. Our magnesium machining cells are equipped with dedicated dust extraction and fire suppression systems to meet process safety standards. Material batch traceability is maintained from mill certificate to finished part.

Every CAD submission receives a Design for Manufacturability assessment focused on magnesium thin-wall optical component constraints. Our engineering team evaluates wall thickness transitions, spoke geometry, tolerance allocations, and mounting features to reduce production risk and improve part quality.

All production adheres to FlexiTurn’s ISO 9001:2015-aligned quality management system. Every shipment includes dimensional inspection records and original material test reports. Magnesium-specific surface treatment and certification packages are available upon request for high-criticality applications.

Submit your 2D (PDF/DWG) or 3D (STEP/IGES) CAD files, along with material grade, tolerance requirements, order quantity, and operating environment details.

1. Receive a magnesium-specific DFM assessment and factory-direct quotation from FlexiTurn.
2. Prototype parts are manufactured and delivered with inspection reports and material certification for design validation and fit testing.
3. Transition to volume production with locked process parameters and in-process dimensional verification.
4. Global shipping with protective packaging, delivered directly to your facility.

For precision CNC machined magnesium alloy components supported by thin-wall machining expertise and structured quality control, contact FlexiTurn. Submit your CAD files to request a project assessment and machining quote.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
