Custom Precision Ceramic Machining Parts

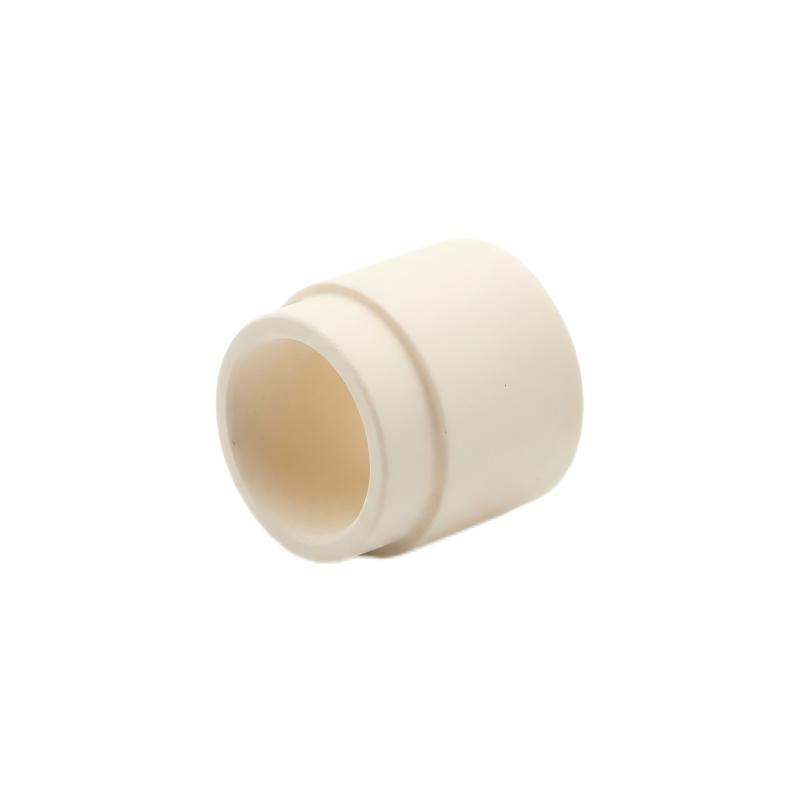

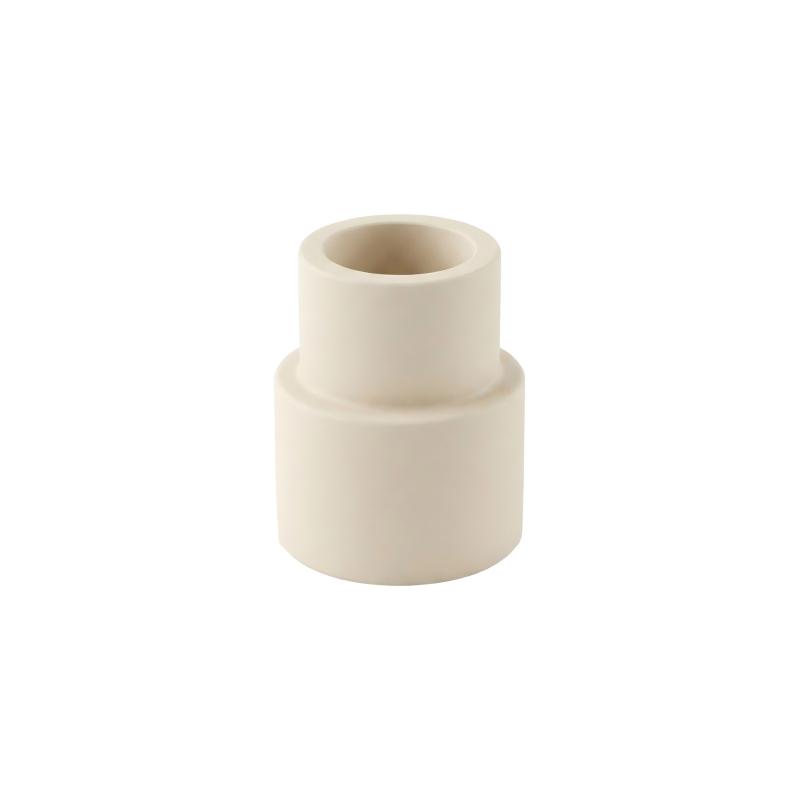

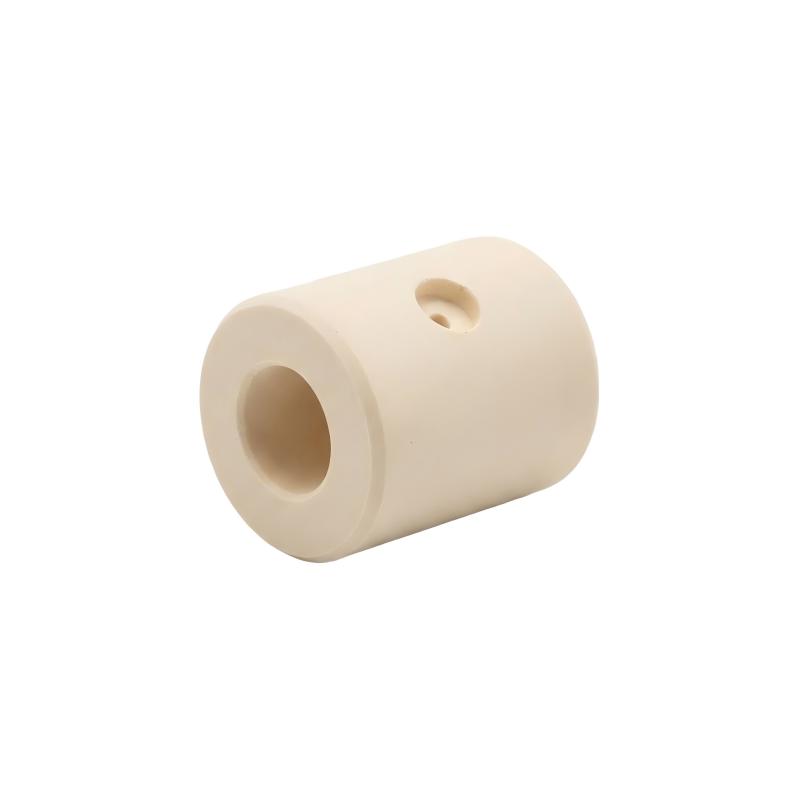

The custom alumina components shown above—featuring stepped outer diameters, precision inner bores, and radial side ports—demonstrate FlexiTurn’s CNC ceramic grinding and diamond machining capabilities. FlexiTurn does not supply standard off-the-shelf catalog parts. Every component is engineered and machined strictly from your CAD files, utilizing purpose-built diamond grinding equipment designed to process hard-brittle ceramics without structural degradation.

CNC Ceramic Machining Capabilities

We transform raw or sintered alumina blanks into tight-tolerance structural components by solving the unique machining challenges presented by complex geometries:

• Stepped OD & ID Concentric Grinding: Precision external and internal cylindrical grinding in single or multi-index setups, holding concentricity down to 0.005 mm across stepped features and sleeve shoulders.
• Radial Cross-Hole & Side-Port Diamond Drilling: 4-axis CNC diamond drilling and ultrasonic-assisted milling for side ports, oil holes, and counterbores, guaranteeing burr-free, zero-chipping hole entry and exit margins.
• Surface Profiling & Precision Lapping: High-efficiency diamond face grinding and optional lapping to achieve mirror-like surface roughness (Ra < 0.1 μm) for dynamic sealing and sliding interfaces.

Materials & Technical Machining Specifications

We machine certified high-purity technical ceramics engineered for severe wear, corrosive media, and high-voltage applications:

• Supported Material Grades: 95% Alumina (Al₂O₃) for industrial structural wear parts; 99% High-Purity Alumina for semiconductor cleanrooms, high-vacuum systems, and dielectric isolation.
• Dimensional Tolerances: ±0.005 mm on critical bores and stepped diameters; ±0.02 mm on general structural features.
• Geometric Limits: Concentricity ≤ 0.005 mm; Cylindricity ≤ 0.004 mm; True position on cross-holes ≤ 0.01 mm.
• Surface Finish: Ra 0.2–0.8 μm standard ground; Ra < 0.1 μm fine-lapped.

Why Choose FlexiTurn for Custom Ceramic CNC Machining?

Zero Thermal Shock & Micro-Cracking: Generalist machine shops often force metal-cutting tools onto ceramics, causing subsurface fractures. FlexiTurn deploys dedicated CNC grinding cells with specialized diamond wheel bonds, high-pressure coolant delivery, and real-time spindle vibration monitoring.

Specialized 4-Axis Multi-Feature Machining: Advanced multi-axis grinding setups allow us to machine stepped profiles, keyways, and side ports in minimal setups, eliminating cumulative positioning errors.

Free 24-Hour Ceramic DFM Engineering Review: Send us your STEP or DWG files for a complimentary manufacturability evaluation within 24 hours. Our engineers check wall thickness transitions, internal fillet radii, and hole pitch accessibility to prevent stress concentration.

Direct Toolless Prototyping & Zero MOQ: Machine functional prototype components directly from solid ceramic stock with zero tooling costs, 5–7 business day lead times, and no minimum order quantities.

ISO 9001:2015 Quality & Traceability: Every shipment includes 3D CMM inspection reports, optical profile measurements, and raw material batch certifications.

 How to Order

1. Submit CAD Drawings: Upload your 2D (PDF/DWG) or 3D (STEP/IGES) CAD files specifying material grade (95%/99% Al₂O₃), critical tolerances, and functional mating surfaces.
2. Fast DFM & Factory Quote: Receive a technical DFM evaluation and direct-factory quotation within 24 hours.
3. Rapid Machined Prototyping: Direct diamond CNC grinding of functional samples delivered with full inspection reports in 5–7 business days.
4. Production & Quality Control: Seamless transition to volume production with locked process parameters and multi-point CMM inspection.
5. Global Express Delivery: Anti-chipping protective packaging shipped directly to your facility worldwide.

Partner with FlexiTurn for custom precision ceramic components backed by dedicated CNC diamond grinding expertise. Contact our engineering team today for your free design review and quote!

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
