Custom Precision Ceramic Structural Parts

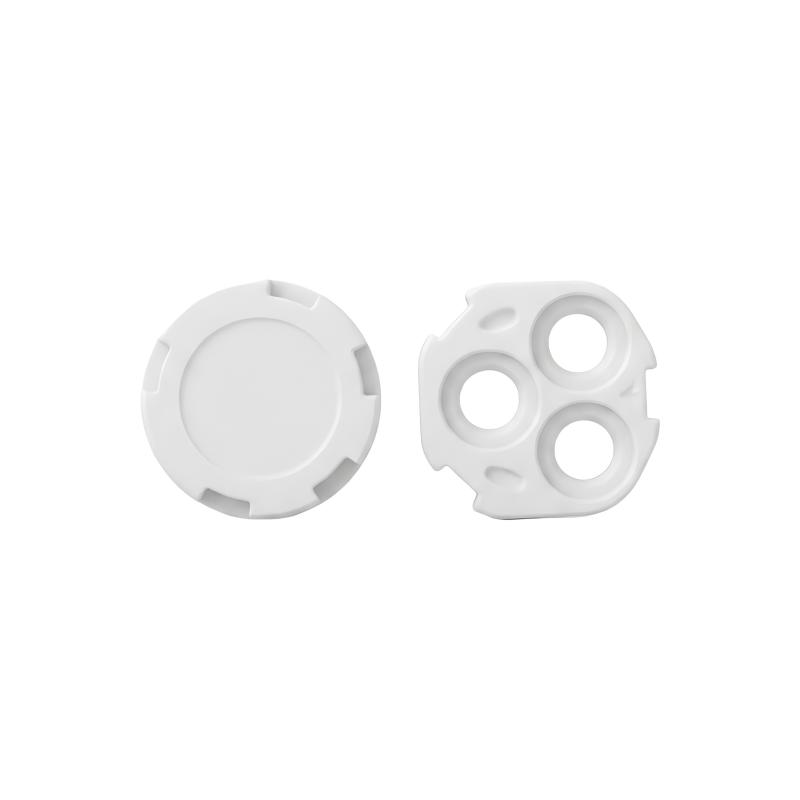

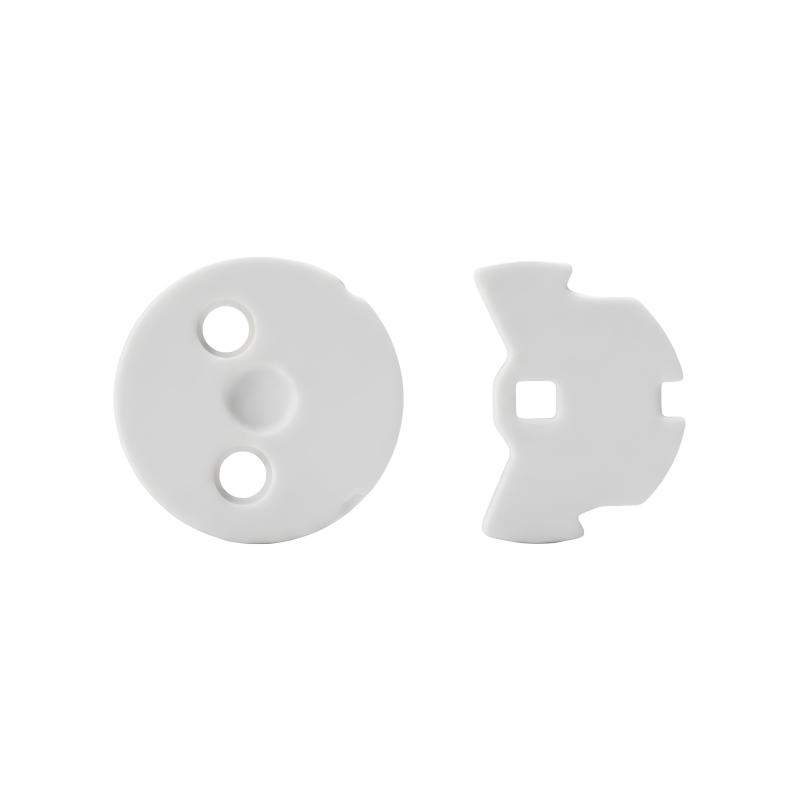

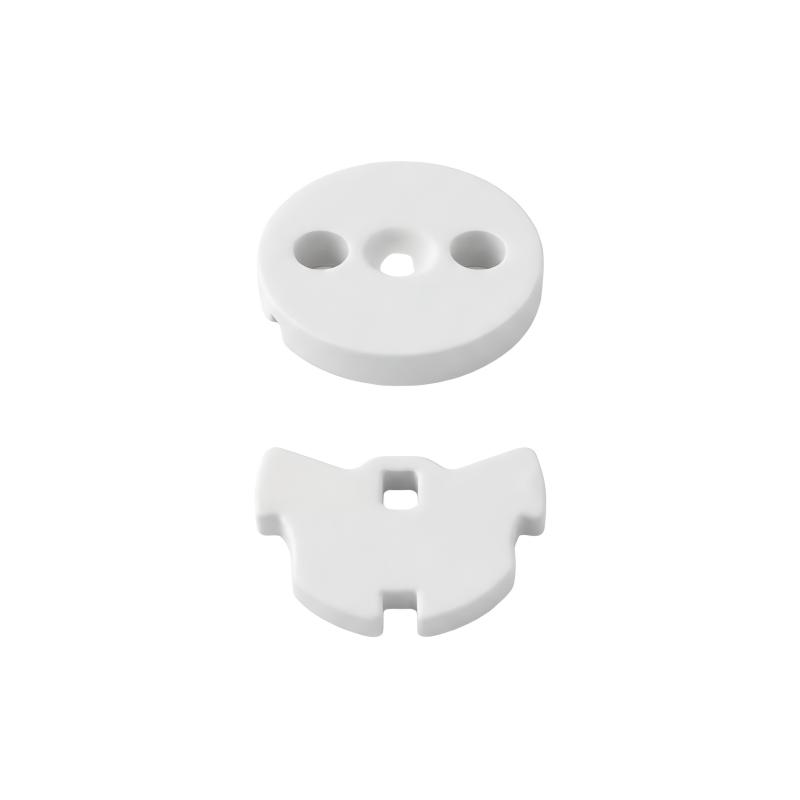

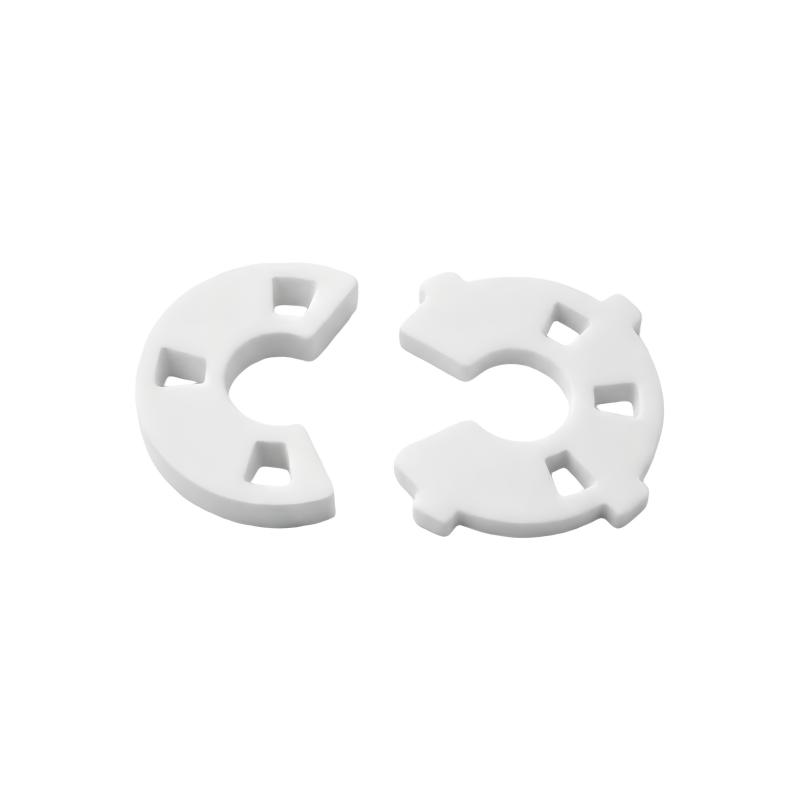

FlexiTurn delivers custom precision manufacturing services for advanced ceramic structural components, encompassing slotted retaining rings, multi-orifice mounting discs, snap-fit insulators and profiled spacer blocks. Leveraging dedicated CNC profile grinding with diamond abrasive wheels, FlexiTurn machines sintered alumina blanks strictly to your CAD specifications, delivering consistent edge integrity, tight dimensional control and repeatable fit accuracy for semiconductor, medical and industrial equipment applications.

Machining Process & Capabilities

FlexiTurn controls the full production chain from isostatic compaction to final CNC finishing, focused on mitigating the three core failure modes of custom ceramic structural parts: edge chipping, feature position drift, and inconsistent fit tolerances.

• Near-Net-Shape Sintering: Blanks are isostatically pressed and high-temperature sintered with controlled shrinkage compensation, pre-forming complex internal features and outer contours. This minimizes grinding stock, reduces lead time, and lowers material waste while preserving uniform material density.
• CNC Profile Grinding: All critical dimensions, slot features, mounting bores, and mating surfaces are finished on dedicated CNC grinders with diamond abrasive tooling. FlexiTurn performs contour grinding, surface grinding, and internal bore grinding in thermally stabilized setups to preserve sharp edges, minimize subsurface micro-cracking, and hold tight true position tolerances.
• Secondary Operations: Custom notch profiling, precision lapping, and micro-bore finishing are available to meet specific assembly and performance requirements.

Materials & Dimensional Specifications

FlexiTurn works with industry-standard high-purity alumina ceramics, with full batch traceability and certified material properties for every order.

• Standard Material Grades: 95% alumina (Al₂O₃) for general industrial structural use; 99% high-purity alumina for high-insulation, low-contamination applications
• General Feature Tolerances: ±0.02 mm for features ≤ 50 mm characteristic size (at 20℃ reference temperature)
• Critical Mating Surfaces & Slot Positions: ±0.005 mm (at 20℃ reference temperature)
• Geometric Tolerances: True position within 0.01 mm for locating features; flatness within 0.008 mm for faces ≤ 50 mm across
• Surface Finish: Ra 0.4–1.6 μm for functional mating surfaces

Why FlexiTurn for Custom Ceramic Structural Parts

Specialized Profile Grinding for Non-Axisymmetric Ceramics: Most ceramic machining vendors only produce simple rotational parts via centerless grinding. FlexiTurn’s CNC profile grinding capability delivers complex, irregular structural ceramics with consistent feature accuracy. No repurposed metal-cutting machinery is used — FlexiTurn’s grinding cells are purpose-built for hard-brittle ceramic materials, eliminating the chipping and tolerance drift endemic to generalist machine shops.

• Full In-House Process Ownership: From blank sintering to final CNC grinding and inspection, every step is completed on FlexiTurn’s premises with zero subcontracting. This delivers direct control over material density, sintering consistency, and grinding precision, resulting in more uniform parts, shorter lead times, and transparent factory-direct pricing with no third-party markup.
• 24-Hour Ceramic-Specific DFM Review: Every CAD submission receives a complimentary Design for Manufacturability assessment focused on ceramic structural constraints. FlexiTurn’s engineering team evaluates wall thickness transitions, notch radii, aspect ratios, and tolerance allocations to identify potential failure points, optimize grindability, and reduce production costs without compromising design intent.
• Scalable Order Volumes: FlexiTurn supports every project scale from single prototype components for design validation to medium-volume production runs. Prototype lead time is 5–7 business days; production lead time is 12–18 business days, subject to part geometry complexity and order volume.
• ISO-Aligned Quality & Compliance: All production follows FlexiTurn’s ISO 9001:2015-aligned quality management system. Every order includes dimensional inspection records, material certification, and full batch traceability. RoHS and REACH compliance documentation is available upon request, with contact CMM inspection offered for high-criticality components.

How to Proceed

1. Submit CAD Drawings: Submit your 2D (PDF/DWG) or 3D (STEP/IGES) CAD files, along with material grade, tolerance requirements, order quantity, and application operating conditions.
2. Fast DFM & Proposal: FlexiTurn issues a ceramic-specific DFM assessment and transparent factory-direct quotation within 24 hours.
3. Prototype Production: FlexiTurn manufactures prototype parts via its CNC grinding process and delivers them with full inspection reports for design and fit validation.
4. Volume Production: Scale seamlessly to volume production with locked process parameters and multi-point in-process quality inspection.
5. Global Express Delivery: Global shipping with protective packaging, delivered directly to your facility.

For custom precision ceramic structural components backed by purpose-built CNC profile grinding expertise and end-to-end process control, partner with FlexiTurn. Contact FlexiTurn’s engineering team today for your free design review and custom quote.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
