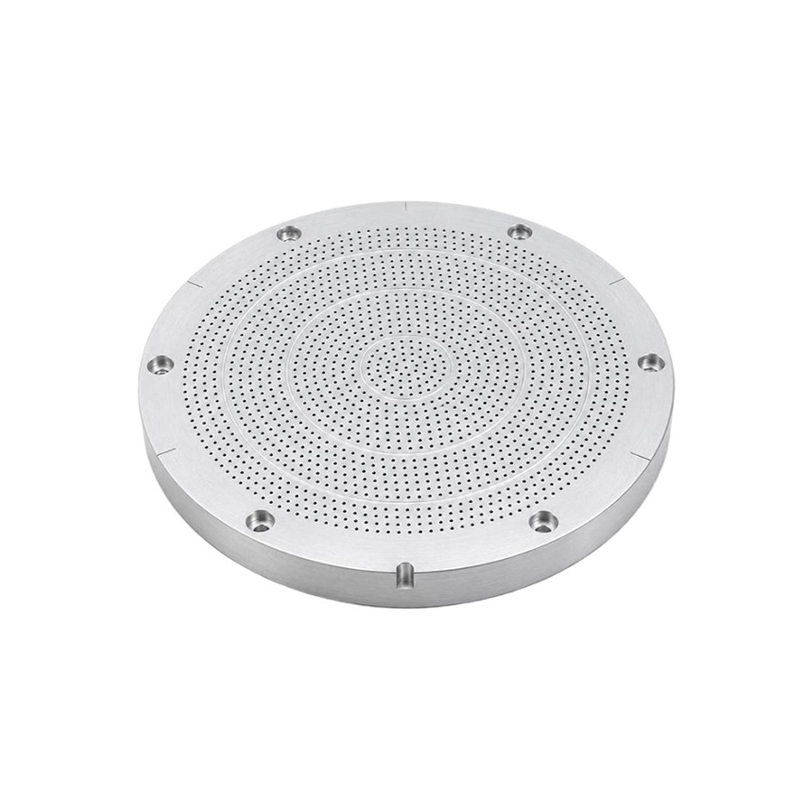

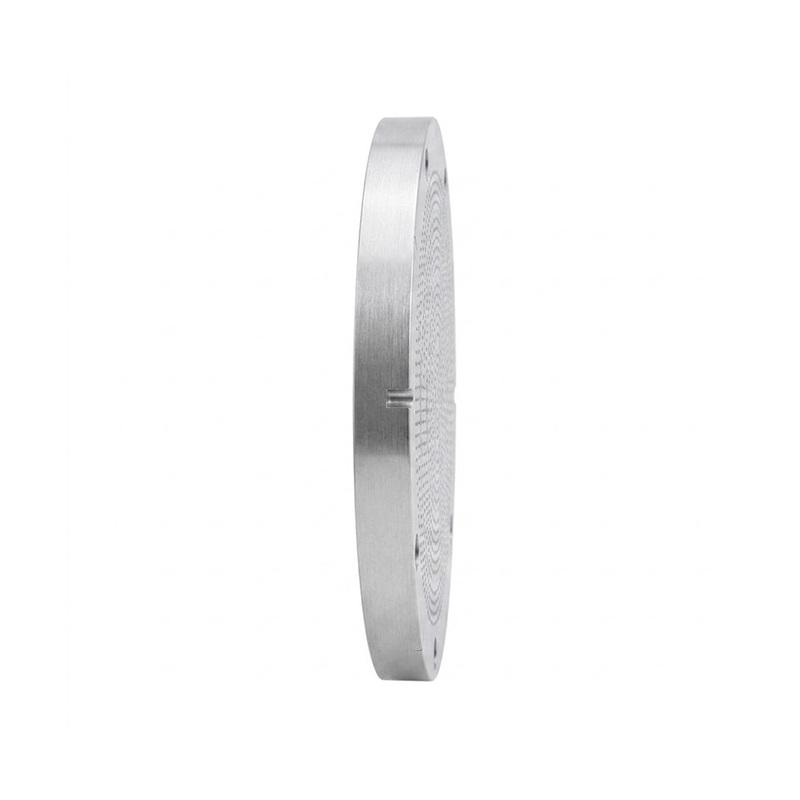

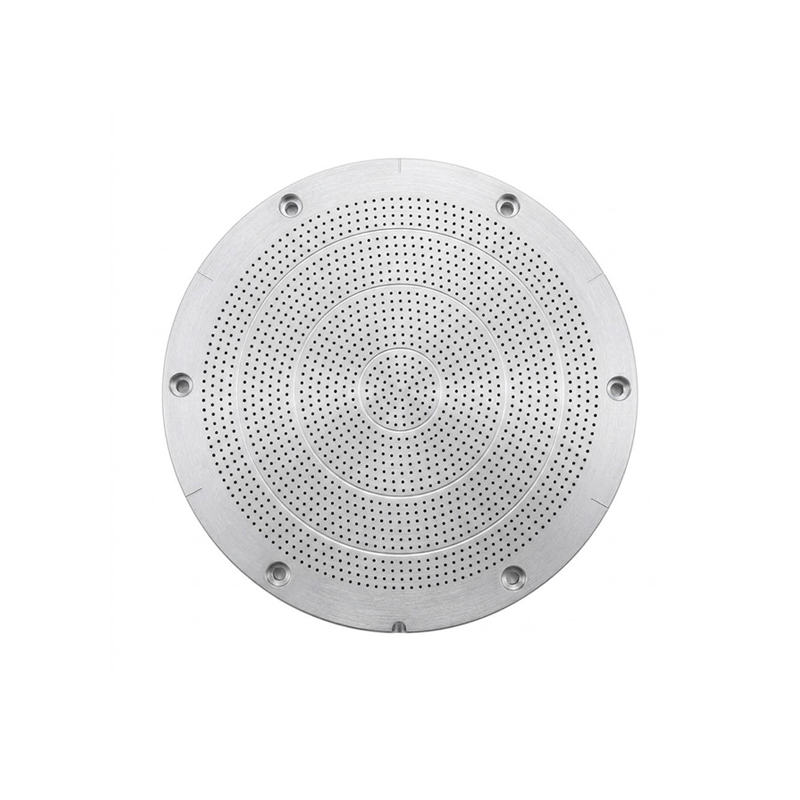

Custom CNC Machined Gas Distribution Showerhead

In front-end semiconductor fabrication, the uniformity of thin-film deposition and plasma etching dictates the performance and yield of the entire wafer. The Gas Distribution Showerhead acts as the critical interface, responsible for dispersing highly reactive precursor gases evenly across the silicon wafer. Any microscopic deviation in hole size, plate flatness, or surface cleanliness can result in turbulent gas flows, uneven plasma density, and catastrophic wafer defects.

At FlexiTurn, we specialize in the ultra-precision CNC machining of Aluminum Gas Distribution Showerheads for OEM semiconductor equipment manufacturers. Whether your system requires a complex multi-zone showerhead for an advanced ALD chamber or a robust distribution plate for a high-density plasma etch system, we possess the advanced machining capabilities required to deliver defect-free, cleanroom-ready components.

Key Advantages of Our Aluminum Showerheads

Extreme Micro-Hole Drilling Precision: Uniform gas dispersion requires thousands of microscopic holes to be drilled with flawless consistency. We utilize high-speed spindles and specialized micro-drill bits to achieve exact hole diameters, perfect concentricity, and strict positional tolerances without causing tool deflection.

Absolute Flatness & Parallelism: To maintain a consistent gap between the showerhead and the wafer chuck, the distribution plate must be perfectly flat. Our advanced CNC milling and stress-relieving strategies prevent aluminum warpage, guaranteeing stringent flatness and parallelism across large-diameter plates (up to 300mm/450mm wafer sizes).

100% Burr-Free & Cleanroom Ready: Particle contamination is strictly forbidden in vacuum chambers. We employ advanced micro-deburring techniques and ultrasonic cleaning processes to ensure that every single gas channel is entirely free of metal shavings, oils, and microscopic burrs.

Optimized for Protective Coatings: Showerheads in etch chambers endure severe plasma bombardment and reactive halogen gases. Our aluminum surfaces are machined and polished to ideal roughness parameters (Ra), preparing them perfectly for subsequent high-end surface treatments such as Hard Anodizing, Yttria (Y2O3) coating, or fluoropolymer plating.

Applications

Our precision-machined gas distribution plates are integral to critical wafer-processing equipment:

• Plasma Etch & Reactive Ion Etching (RIE) Chambers
• Chemical Vapor Deposition (CVD) & PECVD Systems
• Atomic Layer Deposition (ALD) Equipment
• Semiconductor Wafer Cleaning & Ashing Systems
• Advanced Epitaxial Growth Reactors

Comprehensive Engineering & DFM Support

We do not merely execute standard blueprints; we provide full Design for Manufacturability (DFM) analysis. Our engineering team collaborates closely with you to optimize structural geometries, refine critical tolerances, and improve assembly logic. By identifying potential manufacturing bottlenecks early in the design phase, we help reduce production costs and shorten lead times without compromising product performance.

Expert Material Selection Consulting

Selecting the correct material is the foundation of product success. We offer expert consulting across a vast portfolio of industrial-grade materials, including Aluminum, Stainless Steel, Brass, Copper, Titanium, and advanced Engineering Plastics. We carefully match the material's mechanical strength, thermal properties, and environmental resilience directly to your specific application and working environment.

Advanced CNC Machining Capabilities

Equipped with state-of-the-art multi-axis CNC milling centers and Swiss-type turning lathes, our facility excels at producing highly complex geometries and tight-tolerance components. From rapid prototyping to high-volume mass production, we ensure absolute dimensional consistency, perfect concentricity, and superior surface finishes across every single batch.

Functional & Cosmetic Surface Treatments

To meet both performance and aesthetic requirements, we offer a comprehensive suite of surface finishing solutions. Whether your project requires functional treatments—such as hard anodizing, passivation, and electroplating (Gold, Silver, Nickel) for enhanced corrosion resistance and conductivity—or high-end cosmetic finishes like mirror polishing, bead blasting, and custom color anodizing, we deliver ready-to-assemble components.

Rigorous Quality Control & Industry Compliance

Quality assurance is deeply embedded in every step of our manufacturing workflow. We utilize advanced inspection equipment, including Coordinate Measuring Machines (CMM) and optical comparators, to strictly verify all critical dimensions and GD&T specifications. Furthermore, we provide full material certifications and ensure our manufacturing processes comply with stringent global industry standards, including RoHS and REACH directives.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
