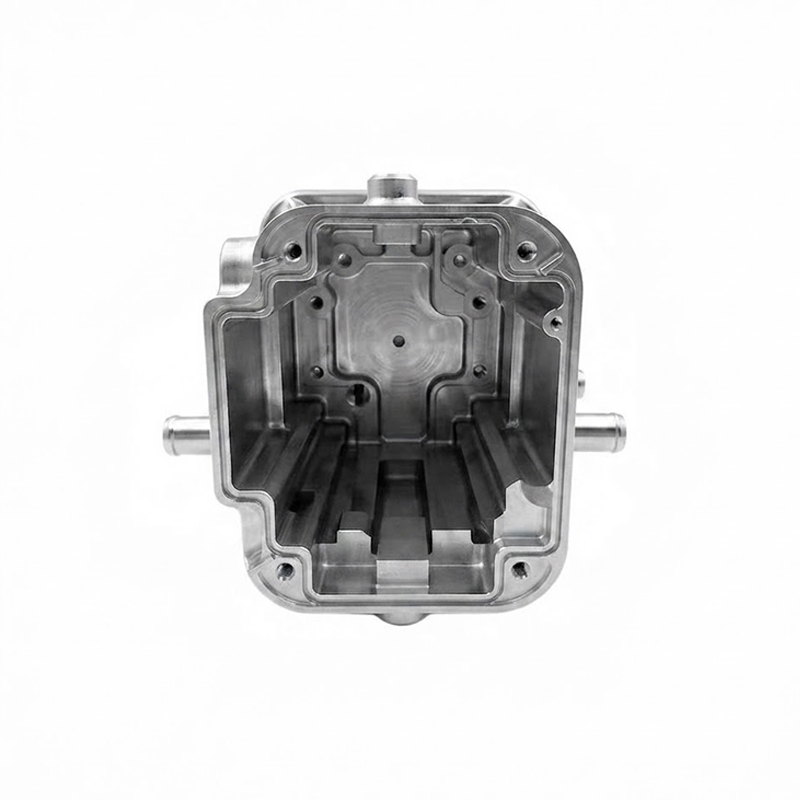

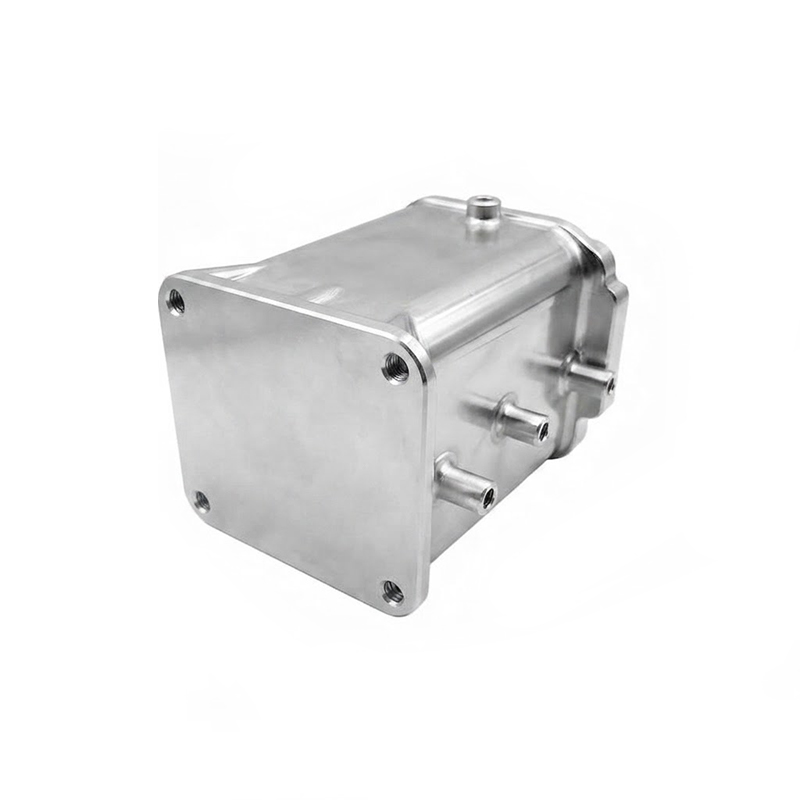

Custom 5-Axis CNC Machined Semiconductor Gearbox Housing

In the semiconductor industry, robotic arms and moving parts must operate smoothly, accurately, and without creating any dust. The gearbox housing is the main body that holds these critical moving parts together. If this housing is not perfectly made, the internal gears will grind and wear out faster, causing vibrations that can damage highly expensive semiconductor wafers.

At FlexiTurn, we specialize in manufacturing these highly precise Gearbox Housings. Using advanced 5-axis CNC machines, we carve these complex parts out of solid blocks of premium aluminum and stainless steel. We provide strong, perfectly shaped, and clean enclosures that act as a reliable foundation for your semiconductor equipment, ensuring your robots run flawlessly and safely in strict cleanroom environments.

Key Advantages of Our CNC Gearbox Housings

All-in-One Machining for Maximum Accuracy: By using advanced 5-axis technology, we can machine all sides of the complex housing in a single step. This avoids handling mistakes and guarantees that every part is perfectly aligned.

Perfect Fit for Smooth Operation: We maintain extremely strict manufacturing standards. This ensures that all internal gears and bearings fit together flawlessly, resulting in smooth, vibration-free, and highly reliable robotic movements.

Cleanroom-Ready & 100% Burr-Free: We understand that even a tiny speck of metal dust can ruin a semiconductor process. Every single housing is carefully inspected, smoothed, and deeply cleaned to ensure it is completely safe for cleanroom environments.

Strong, Warp-Resistant Materials: We use premium metals that are specially treated to prevent bending or warping over time. This guarantees your equipment remains structurally stable and durable, even under continuous heavy use.

Applications

Our 5-axis CNC machined housings and carriers are trusted by automation integrators across the semiconductor fab:

• Wafer Handling Robot Arm Joints & Base Gearboxes
• Vacuum Automation Load Port Actuator Housings
• CMP (Chemical Mechanical Polishing) Tool Drives
• High-Precision Planetary & Strain Wave (Harmonic) Gear Carriers
• Die Bonding and Flip-Chip Packaging Equipment

Comprehensive Engineering & DFM Support

We do not merely execute standard blueprints; we provide full Design for Manufacturability (DFM) analysis. Our engineering team collaborates closely with you to optimize structural geometries, refine critical tolerances, and improve assembly logic. By identifying potential manufacturing bottlenecks early in the design phase, we help reduce production costs and shorten lead times without compromising product performance.

Expert Material Selection Consulting

Selecting the correct material is the foundation of product success. We offer expert consulting across a vast portfolio of industrial-grade materials, including Aluminum, Stainless Steel, Brass, Copper, Titanium, and advanced Engineering Plastics. We carefully match the material's mechanical strength, thermal properties, and environmental resilience directly to your specific application and working environment.

Advanced CNC Machining Capabilities

Equipped with state-of-the-art multi-axis CNC milling centers and Swiss-type turning lathes, our facility excels at producing highly complex geometries and tight-tolerance components. From rapid prototyping to high-volume mass production, we ensure absolute dimensional consistency, perfect concentricity, and superior surface finishes across every single batch.

Functional & Cosmetic Surface Treatments

To meet both performance and aesthetic requirements, we offer a comprehensive suite of surface finishing solutions. Whether your project requires functional treatments—such as hard anodizing, passivation, and electroplating for enhanced corrosion resistance—or high-end cosmetic finishes, we deliver ready-to-assemble components.

Rigorous Quality Control & Industry Compliance

Quality assurance is deeply embedded in every step of our manufacturing workflow. We utilize advanced inspection equipment, including Coordinate Measuring Machines (CMM) and optical comparators, to strictly verify all critical dimensions and GD&T specifications. Furthermore, we provide full material certifications and ensure our manufacturing processes comply with stringent global industry standards, including RoHS and REACH directives.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
