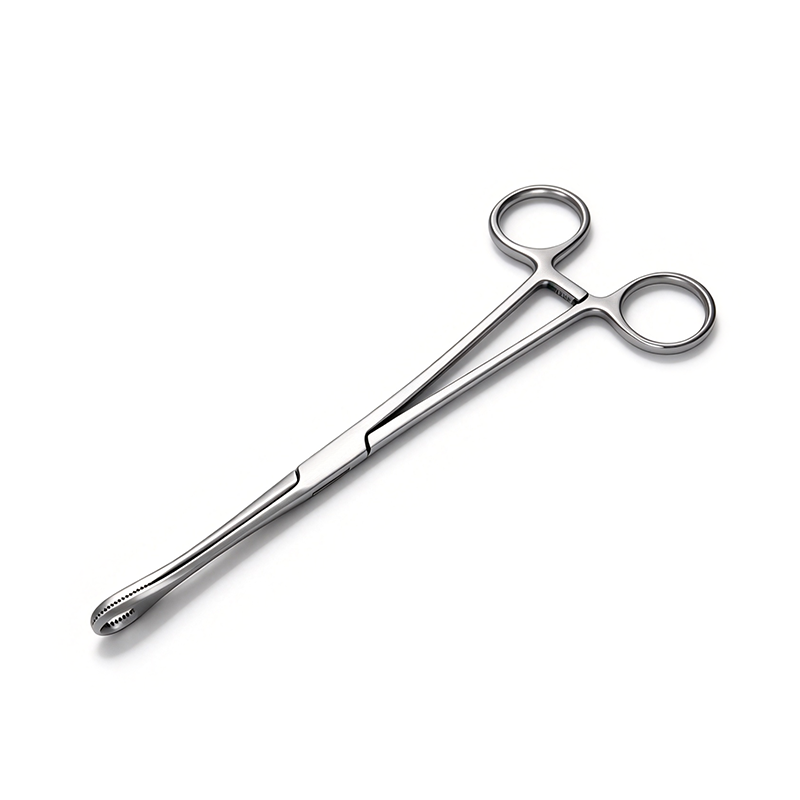

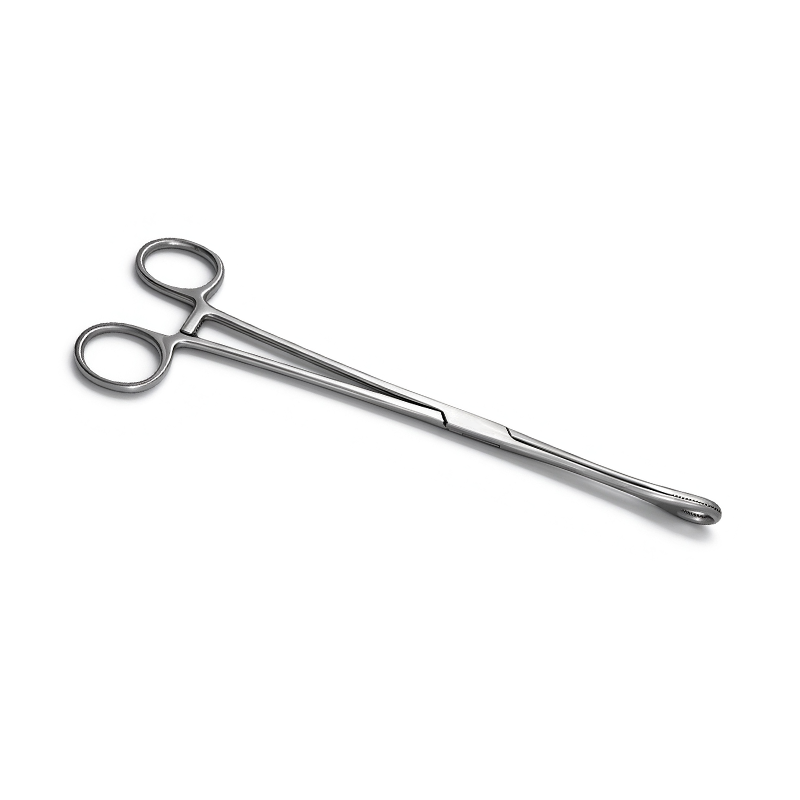

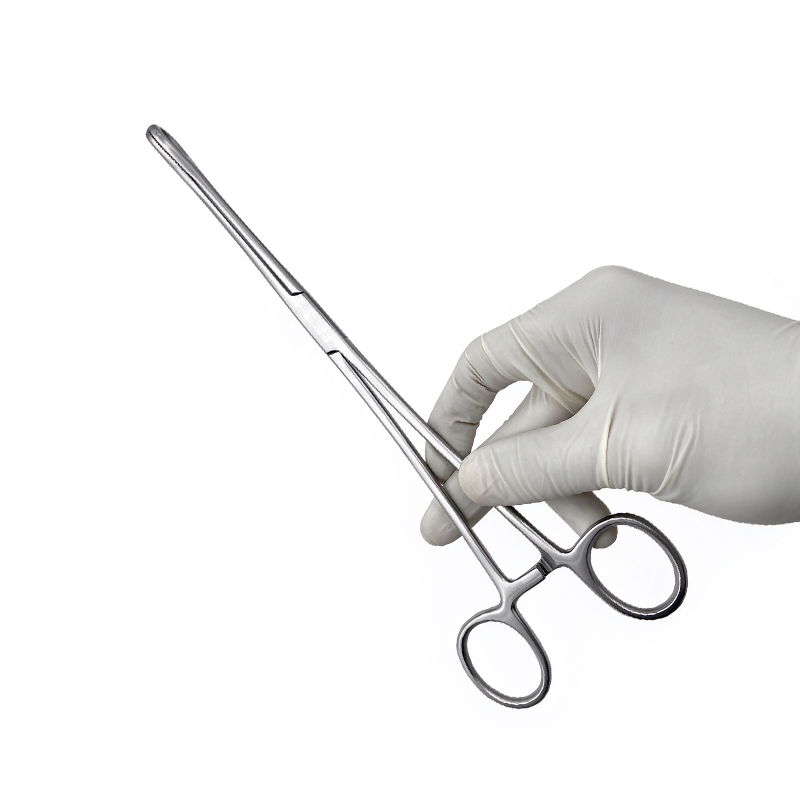

Premium Quality Surgical Instrument Jaws Custom

Premium Quality Surgical Instrument Jaws Custom
FlexiTurn provides custom CNC machining of surgical instrument jaws for medical device manufacturers and surgical instrument companies. These components often combine compact dimensions, complex gripping profiles, pivot features, fine edges, and close-fitting interfaces, requiring careful control throughout the machining process. We manufacture non-standard jaws according to customer drawings, CAD files, or samples, with the machining strategy selected according to the part geometry, material, and functional requirements.

Machining Complex Jaw Geometries

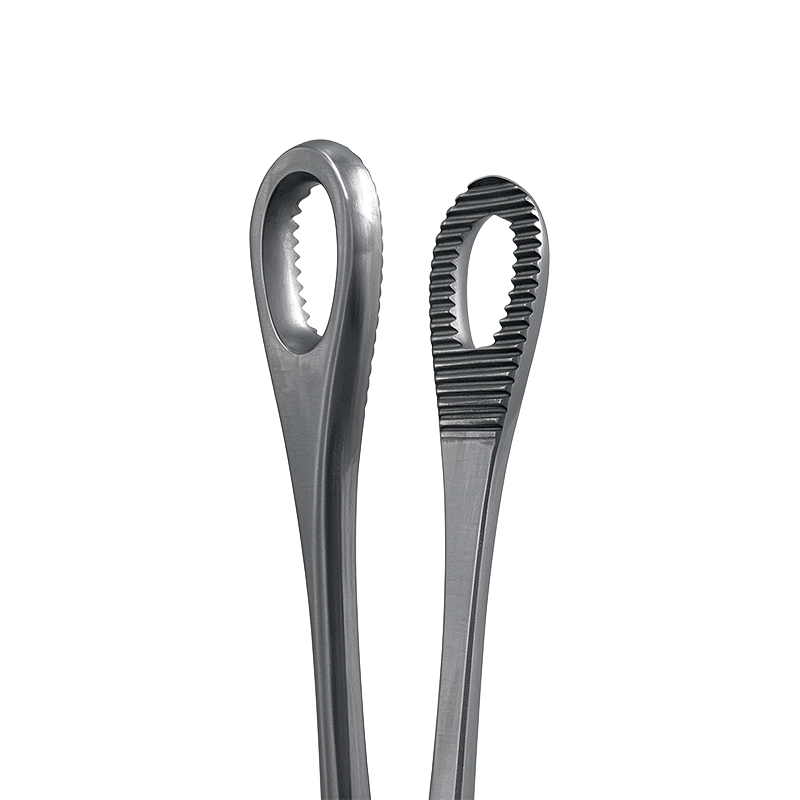

Surgical instrument jaws are functional components rather than simple machined blocks. Their gripping surfaces, contours, grooves, holes, and mating features must work together correctly after assembly. Depending on the design, these features may require multi-axis machining, multiple setups, and carefully planned tool access.

FlexiTurn uses 3-axis, 4-axis, and 5-axis CNC machining to produce different jaw geometries, with 5-axis machining particularly useful for complex curved surfaces and features that are difficult to access from a single direction.

Control of Critical Features
For surgical instrument jaws, dimensional consistency is important because the jaw must maintain the intended relationship with the handle, pivot, linkage, or opposing jaw during assembly and operation.

We pay particular attention to critical dimensions such as pivot holes, mating surfaces, jaw alignment, profile geometry, and feature position. CMM inspection and dimensional verification can be applied according to the requirements of the individual project to confirm critical features before shipment.

Materials Selected for the Application
The appropriate material depends on the instrument design, mechanical requirements, corrosion exposure, sterilization conditions, and other application-specific factors. FlexiTurn can machine commonly used medical and engineering materials according to customer specifications, including stainless steel and other suitable alloys or engineering plastics.

For stainless steel surgical components, machining parameters and tool selection need to account for material characteristics such as work hardening and heat generation. Our machining process is adjusted according to the selected material and the geometry of the jaw to maintain dimensional stability and surface quality.

Fine Details and Clean Surface Finishes
Small burrs, sharp unwanted edges, and surface imperfections can interfere with assembly and the intended operation of a surgical instrument. For this reason, machining is followed by appropriate deburring and finishing processes according to the component requirements.

Where specified, FlexiTurn can support surface finishing such as polishing and electropolishing for suitable materials and applications. The required finish is determined by the customer's drawings and functional requirements rather than applying the same treatment to every surgical component.

From Prototype to Repeat Production
Medical device development often requires several rounds of prototype evaluation before entering repeat production. FlexiTurn supports custom surgical instrument jaw projects from initial prototypes and small batches through recurring production.

Our engineering team can review drawings and manufacturing requirements before production, identify potential machining challenges, and select an appropriate process route. This helps address issues such as thin sections, difficult tool access, complex contours, tolerances, and workholding before machining begins.

Custom Surgical Instrument Jaws from FlexiTurn
As a source CNC machining factory, FlexiTurn focuses on manufacturing the actual non-standard component specified by the customer rather than offering a catalog of standard surgical jaws. We work from customer drawings, CAD data, or samples to produce jaws according to the required geometry, dimensions, material, surface condition, and inspection requirements.

From complex 5-axis machining and precision milling to CMM inspection and finishing support, FlexiTurn provides an integrated manufacturing solution for custom surgical instrument jaws, supporting medical device manufacturers from prototype development to repeat production.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
