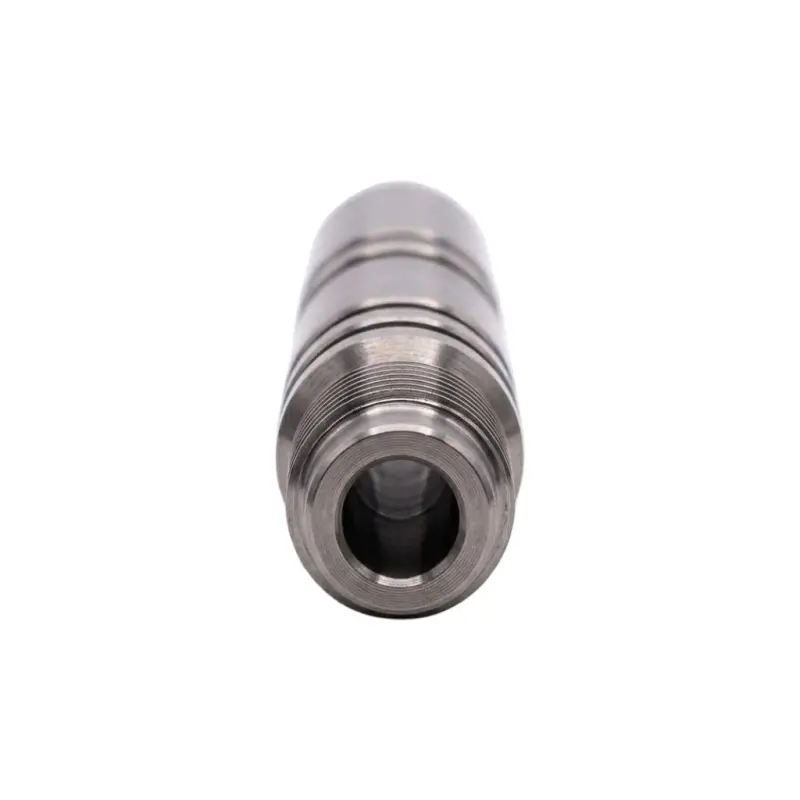

Custom CNC Machined Inconel 625 Shafts

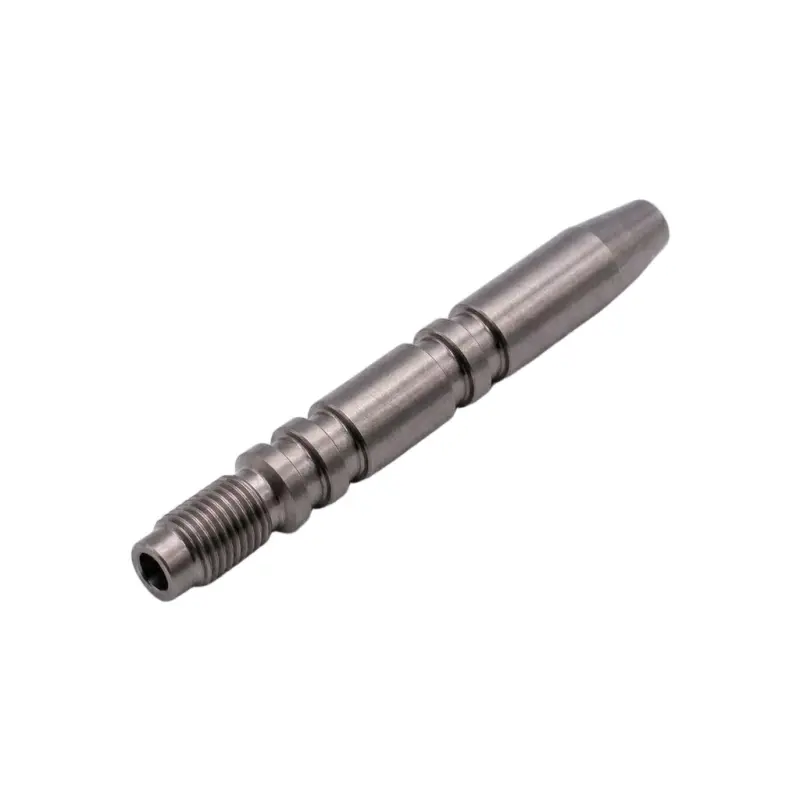

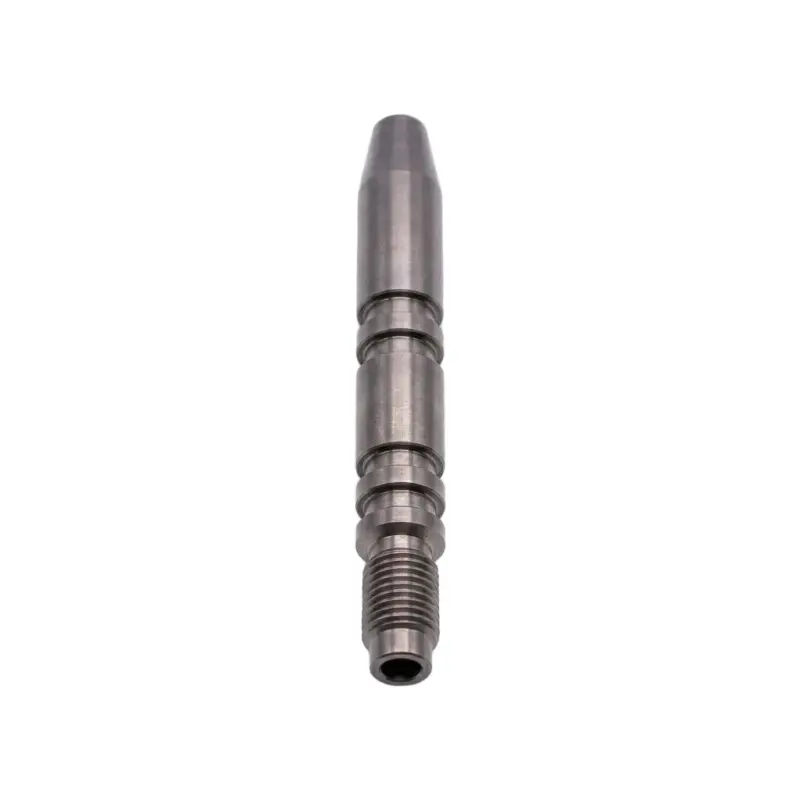

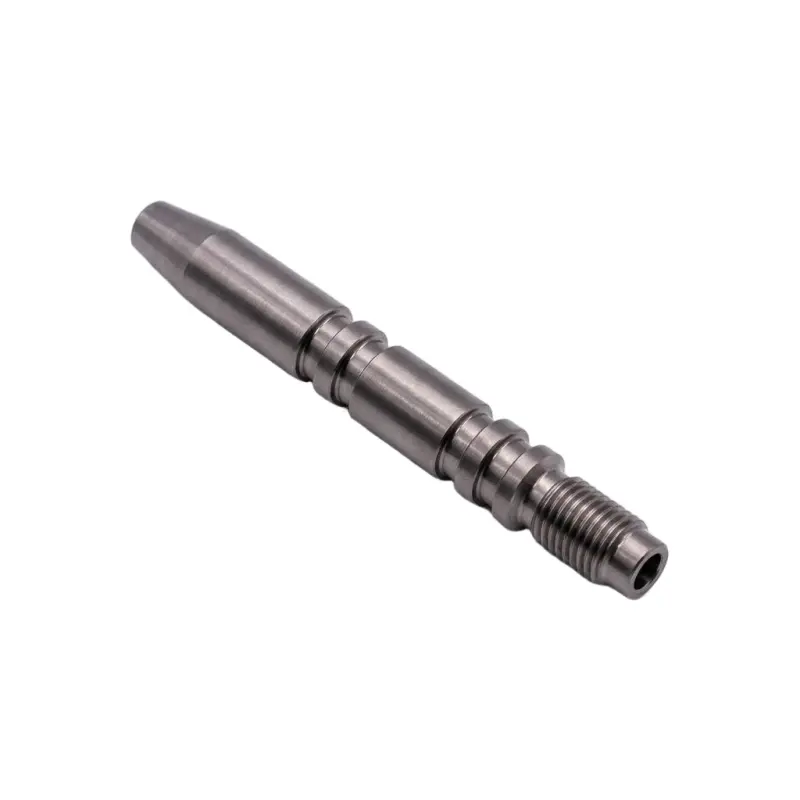

 This part integrates stepped cylindrical profiles, an axial through bore, external male threads, a tapered nose, and integral seal grooves. All dimensions, geometric tolerances, and surface finishes are manufactured according to customer-supplied 2D/3D CAD data.

FlexiTurn operates as a dedicated precision CNC machining service provider. Our core deliverable is the controlled manufacturing process that converts design specifications into functional superalloy shafts with consistent geometric accuracy and material performance. Order volumes cover single-piece prototypes, low-volume development batches, and full serial production.

Machining Capabilities Demonstrated

Manufacturing this Inconel 625 shaft requires sequential precision operations, demonstratPing FlexiTurn’s process control and superalloy turning competence:

CNC Turning: For stepped OD profiles, axial through bore, tapered nose, and seal grooves, with controlled concentricity, cylindricity, and surface finish.

CNC Milling: For keyways, drive flats, and transverse features where specified.

CNC Drilling: For cross holes, lubrication ports, and pilot bores with positional tolerance control.

Precision Tapping: For internal and external threads to standard 6g/6H or custom fit grades.

Deburring & Edge Conditioning: For all bore intersections and external profiles to remove sharp edges and minimize residual burrs.

Optional CNC Grinding: For critical journal diameters and sealing surfaces requiring IT5/IT6 tolerance and fine surface finish.

Material Specifications

FlexiTurn machines a full range of nickel-based superalloys for high-temperature and corrosion-critical shaft applications, all sourced from accredited mills with documented batch traceability and original mill test certificates (MTCs):

Inconel 625 (UNS N06625 / W.Nr. 2.4856): Standard grade for general corrosion and continuous high-temperature service.

Inconel 718 (UNS N07718 / W.Nr. 2.4668): For higher mechanical strength at elevated temperatures.

Inconel X-750 (UNS N07750): For spring temper and high-strength fastener applications.

Alternative materials including 17-4PH stainless steel, 316L, and titanium alloys are available upon specification.

Inconel 625 is specified for shaft applications for its inherent resistance to pitting, crevice corrosion, and stress corrosion cracking in chloride and acidic environments, combined with retained tensile strength and creep resistance at continuous elevated temperatures. It is an established material for valve stems, pump shafts, and fluid handling components in aggressive service conditions.

Tolerances and Quality Assurance

FlexiTurn enforces strict geometric and dimensional control across all critical features of Inconel 625 shafts. Standard tolerances are held to ±0.02 mm for external diameters and bore sizes, with total indicator runout (TIR) controlled to ≤0.01 mm across the full shaft length. Tolerances as tight as ±0.005 mm are achievable for high-precision journal and sealing features upon explicit specification.

All production orders undergo incoming material inspection, in-process dimensional verification at key operation stages, and final dimensional verification prior to shipment. Material test certificates, dimensional inspection reports, and surface finish data are available on request. Our manufacturing quality management system is ISO 9001:2015 certified.

Specialized Inconel Shaft Machining Expertise

Nickel-based Inconel 625 presents well-documented turning challenges: high work hardening rate, low thermal conductivity, and accelerated cutting tool wear. FlexiTurn deploys dedicated superalloy turning protocols to address these characteristics: wear-resistant coated carbide and ceramic tooling, high-pressure through-tool coolant delivery (≥70 bar) for efficient chip evacuation and thermal management, optimized feed and speed parameters calibrated for shaft turning, and rigid tailstock support with steady rests to minimize deflection. These controls support consistent concentricity, stable surface integrity, and predictable tool life across both prototype and production runs.

Why Choose FlexiTurn

FlexiTurn is a China-based precision CNC machining service provider focused on custom machined engineered components. We serve global customers with adherence to drawing specifications and delivery schedules.

• Custom Machining: Executed to customer CAD data and engineering specifications.
• Scalable Production: Covering prototype, low-volume pilot, and high-volume serial requirements.
• Multi-Axis Capability: 3-axis, 4-axis, and 5-axis CNC milling and turning.
• Specialized Expertise: Process control for Inconel, Hastelloy, and other difficult-to-machine nickel superalloys.
• Pre-Production DFM: (Design for Manufacturability) review to optimize feature accessibility, reduce production cost, and mitigate manufacturing risk.
• Dedicated Project Management: For every order with single-point communication and proactive progress updates.
• Certified Raw Materials: With documented batch traceability and mill certification.
• Transparent Lead Times: With formal production scheduling.

Get Started

To initiate a project, submit your CAD drawings (STEP/IGS/DXF/PDF), required quantity, material grade, tolerance specifications, surface treatment requirements, and target delivery date to FlexiTurn. Our engineering team will conduct a complete design review, provide actionable DFM feedback, and issue a detailed formal quotation.

Contact FlexiTurn today to discuss your precision CNC machining requirements.

FlexiTurn – Precision Machining, Delivered with Trust.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
