OEM CNC Machined Medical Components
Product Overview:
From precision surgical ball head pivot pins to custom medical instrument components, Flexiturn delivers one‑stop CNC turning and spherical grinding – from rapid prototyping to validated production with micron‑level accuracy, clean packaging, and full material traceability.
Workmanship: CNC Grinding, CNC Turning, Metal Polishing
Material: Titanium
Inquiry Email: sales@flexiturn.com
OEM CNC Machined Medical Components Details

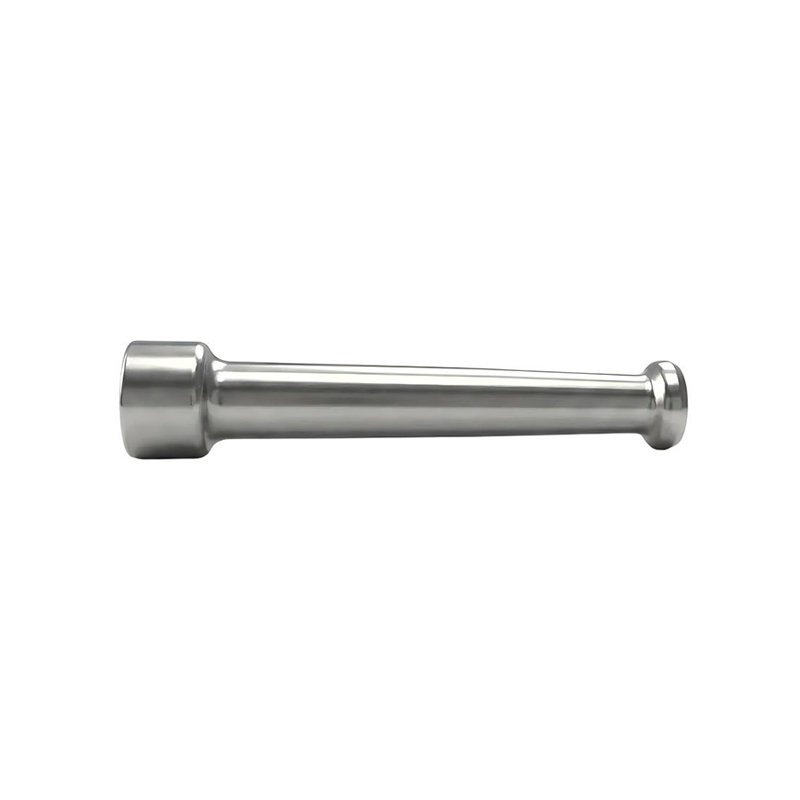

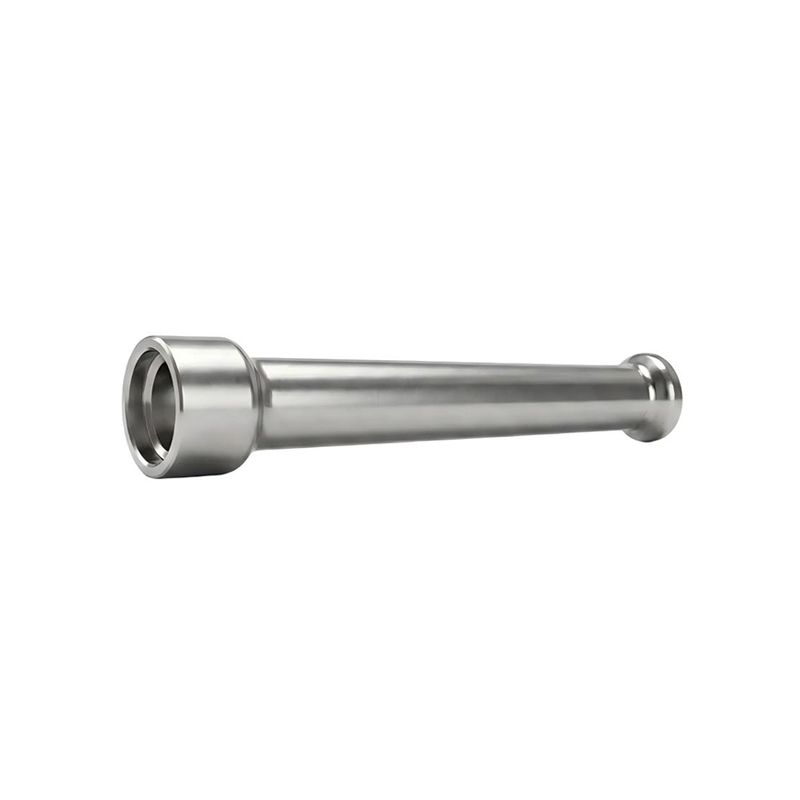

Custom Precision Medical Ball Head Pivot Pin
This precision medical ball head pivot pin (also known as surgical instrument hinge pin or articulating pivot shaft) is a critical load-bearing and articulating component widely used in surgical forceps, needle holders, bone rongeurs, dental instruments, and laparoscopic tools – where smooth articulation, positional accuracy, and long-term durability under repeated sterilization are essential.
The stepped shaft integrates a precision-bored mounting hub for assembly and axial load transfer, and a precision-ground ball head that acts as the hinged fulcrum for oscillating and universal motion. Machined from medical-grade 316L stainless steel with a medical-grade polished finish, each pin is designed for high cycle life and consistent clinical performance.
Flexiturn offers full customization: ball head diameters, shaft lengths, bore sizes, surface finishes, and thread profiles – all machined exactly to your drawings and specifications. MOQ: 1-piece prototypes welcome; production follows validated process specifications. Rapid prototyping is available for urgent projects, with free DFM feedback included with every quote. Flexiturn also manufactures identical or similar custom surgical instrument components, pivot pins, hinge shafts, and precision medical device parts to your drawings.
Quick Specifications
| Parameter | Value |
| Dimensional tolerance (critical features) | ±0.01mm |
| High-precision tolerance | ±0.005mm (with grinding) |
| Ball head sphericity | ≤ 0.01mm |
| Concentricity (shaft to bore) | ≤ 0.02mm |
| Surface roughness | Ra ≤ 0.8μm (as-turned); Ra ≤ 0.2μm (polished) |
| Standard material | 316L stainless steel |
Design Intent & Engineering Execution
| Feature | Purpose | Flexiturn's Manufacturing Solution |
| Ball head – precision sphere at the articulation end | Smooth, low-friction pivoting with minimal play | CNC turning rough-forms the sphere; dedicated spherical grinding achieves ≤ 0.01mm sphericity, verified by roundness tester |
| Precision bore – internal mounting hub | Accurate assembly and axial load transfer | Swiss-type turning holds ±0.01mm bore tolerance; concentricity to shaft within 0.02mm |
| Stepped shaft profile – multi-diameter geometry | Interfaces with multiple instrument components | Single-setup turning ensures consistent geometry and minimizes cumulative error |
| Medical-grade polished surface – Ra ≤ 0.2μm | Eliminates wear debris, reduces friction, allows easy cleaning | Mechanical polishing removes all burrs and sharp edges; electropolishing and passivation available for enhanced corrosion resistance |
| Autoclave-ready material – 316L stainless steel | Withstands repeated steam sterilization without corrosion or fatigue | Material certifications confirm material grade; passivation preserves the protective oxide layer; optional electropolishing improves cleanability |
1. Precision CNC Turning & Grinding
Flexiturn operates Swiss-type sliding head CNC lathes and multi-axis turn-mill centers, routinely holding ±0.01mm on critical features and achieving ±0.005mm with secondary grinding.
CNC Turning (single-setup): Machines the stepped shaft, rough ball form, and bore in one clamping – ensuring concentricity and eliminating setup errors.
CNC Spherical Grinding: Finishes the ball head to ≤ 0.01mm sphericity and ultra-smooth mating surfaces – the critical process that distinguishes high-end surgical pins from general-purpose shafting.
Micro-Machining: Handles miniature diameters, thin wall sections, and fine thread pitches typical of instrument pins.
2. Surface Finish
In surgical instruments, surface finish is a clinical performance parameter, not just appearance.
| Treatment | What It Does for This Pin |
| Mechanical polishing | Delivers Ra ≤ 0.2μm – removes burrs, eliminates sharp edges, reduces friction against mating parts |
| Electropolishing | Brightens surface, removes microscopic peaks, further improves corrosion resistance and cleanability |
| Passivation | Applies to all stainless steel variants – restores and strengthens the passive oxide layer after machining |
3. Material Selection
| Material | Best For |
| 316L stainless steel (standard) | Patient-contacting instruments – proven biocompatibility, autoclave-safe, corrosion-resistant |
| 17-4 PH stainless steel (precipitation hardened) | Heavy-load pivots requiring high strength and wear resistance |
| 304 stainless steel | Non-patient-contact auxiliary components – cost-effective |
| Ti-6Al-4V ELI (with DLC/TiN coating) | Lightweight, high-strength surgical components where weight reduction is critical |
4.Quality Assurance
Pre-machining DFM review: Our engineering team assesses sphericity tolerance, bore concentricity, surface finish targets, and edge break requirements before production.
Multi-instrument metrology: Roundness testers verify ball head sphericity; optical measuring systems, CMM, and surface roughness testers complete the inspection in a temperature-controlled lab.
FAI per medical protocols: Full First Article Inspection reports accompany every first-batch order.
Full material traceability: Mill test certificates and inspection records are included with every shipment, using FDA-recognized medical-grade raw materials.
Why Partner With Flexiturn?
One-stop process chain: Turning → grinding → polishing → inspection → cleaning – one supplier, one quality standard.
Prototype to validated production: 1-piece prototype orders accepted; production runs follow fully validated process specifications.
Lead time predictability: 5–7 working days for prototypes; 7–10 days with full finishing and inspection. Expedited options available. Coating/secondary processes may extend timeline – we confirm when quoting.
Design confidentiality: NDA protection for all client designs – your geometries remain exclusively yours.
Start Your Next Project Today
Submit your CAD drawing (STEP, IGES, or DXF) for a free consultation and quote within 24 hours . Whether you need this exact ball head pivot pin, a custom precision surgical component, or fullscale production, we're ready to help.
Contact FlexiTurn's engineering team today – no obligation, no hidden fees, just a straightforward conversation about your project. FlexiTurn is ready to turn your designs into clinically compliant, precision surgical components.
