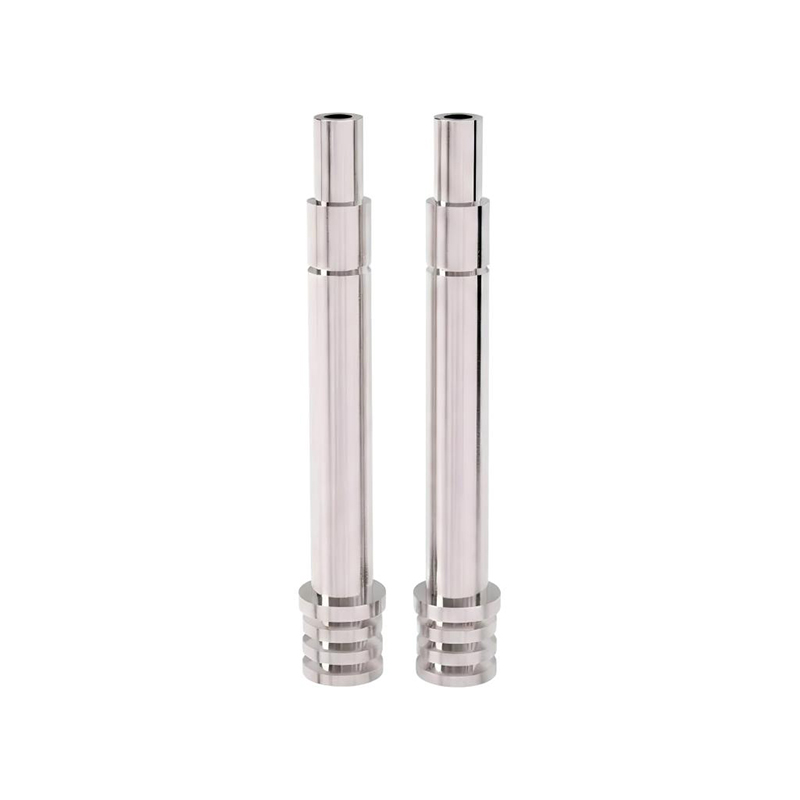

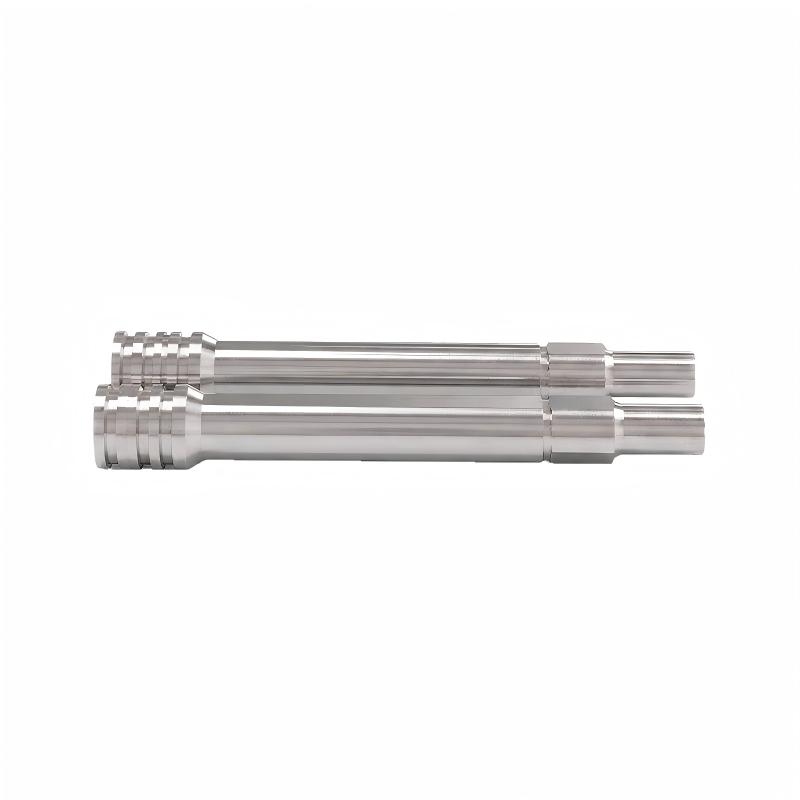

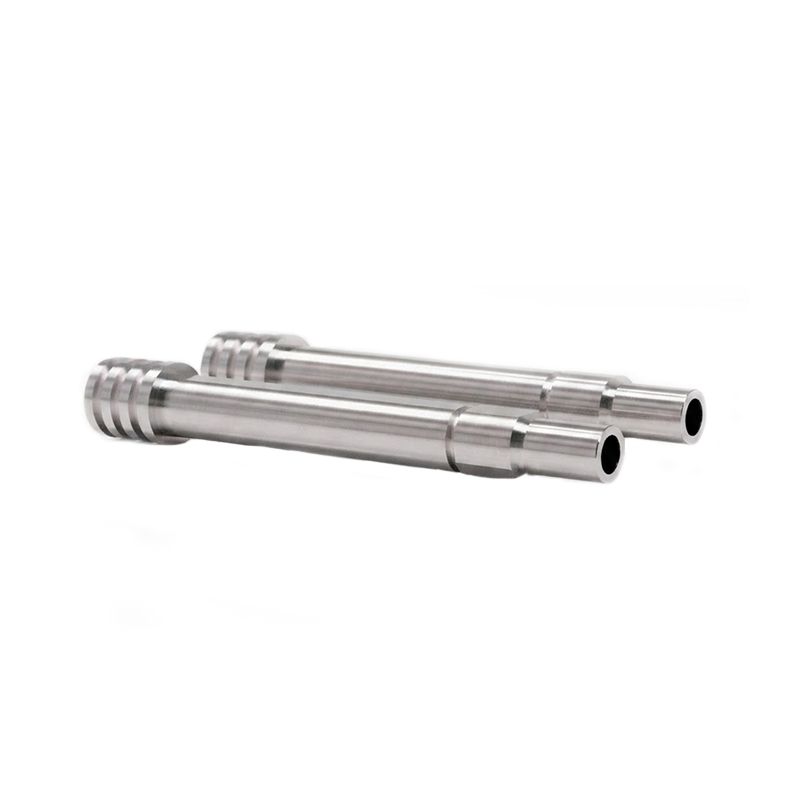

CNC Machined Medical Device Components

In the medical device industry, precision isn't just a requirement—it's a matter of patient safety. Our CNC Machined Medical Device Components are engineered to bridge the gap between complex digital CAD designs and flawless, physical medical-grade parts.

Leveraging advanced multi-axis subtractive manufacturing, we provide a high-precision, "mold-less" production model that eliminates long lead times and high upfront tooling costs. Whether you need functional prototypes for clinical validation or a low-volume production run for market launch, our tailored machining solutions guarantee extreme consistency from the first unit to the last.

Key Features

Micro-Tolerance Precision: Consistently achieve dimensional tolerances ≤ ±0.01 mm (±0.0002inches) on critical mating slots, housing seals, and implant interfaces.

Mold-Free Low-Volume ROI: Bypass lengthy tool design and fabrication phases. Ideal for short production runs (10 to 1,000 pieces), minimizing financial risk and inventory burden.

Superior Fine Finishing: Offers exceptional surface finishes (Ra≤0.2μm) essential for optical devices, fluidics, or smooth surgical instrument surfaces.

Design Flexibility for Iteration: Modify and test designs fluidly between small batches without obsolete inventory or expensive mold re-works.

Full Traceability & Compliance: Adheres to strict quality inspection protocols, ensuring comprehensive lot segregation and material ID retention throughout the manufacturing value chain.

Technical Parameters

Processes: CNC Milling (3/4/5-Axis), CNC Turning, Drilling, Boring, Grinding, Wire EDM

Standard Tolerance: ±0.01mm to ±0.05mm (Tightest up to ±0.005 mm upon request)

Surface Roughness: Ra 0.2μm - Ra 3.2μm (Depending on requirements)

MOQ: 1 - 10 pieces (Highly flexible low-volume options)

Metal Materials: Titanium (Gr5/MedG23), Stainless Steel (316L/304/17-4 PH), Aluminum (6061-T6/7075), Cobalt-Chrome

Plastic Materials: PEEK (Medical Grade), PTFE (Teflon), Delrin (POM), Polycarbonate (PC), PPSU

Post Processing: Passivation, Anodizing, Sandblasting, Electropolishing, Laser Etching

CNC Machining Processes Implemented

To achieve the intricate geometries required for medical applications, we implement a comprehensive range of core and specialized CNC subtractive technologies:

Multi-Axis CNC Milling: 3-axis, 4-axis, and 5-axis milling enable the fabrication of highly complex contours and deep cavities in a single setup, drastically reducing geometric errors.

Precision CNC Turning: Perfect for high-speed, uniform production of cylindrical parts like bone screws, pins, and connectors, ensuring perfect concentricity.

CNC Grinding & Boring: Corrects any minute axial deviations and achieves smooth, mirror-like surfaces on high-hardness materials.

Wire EDM: Utilizes ultra-fine wire discharge to cut through hardened metals, forming sharp internal corners, slot micro-features, and complex shapes that traditional mechanical tools cannot reach.

Applications

Our custom-machined medical components are widely integrated across high-stakes healthcare sectors:

Surgical Instruments: Scalpel handles, endoscopic cameras housings, clamps, forcep hinges, and robotic surgery arm links.

Orthopedic & Implants: Titanium bone screws, spinal fixation devices, bone plates, and artificial joint components.

Diagnostic & Laboratory Equipment: MRI/CT scanner internal fixtures, ultrasound probe housings, fluidic valves, and alignment brackets.

Fluid Management Devices: High-precision pump rotors, micro-valves, connectors, and analysis cartridges.

Why Choose Us CNC Machined Medical Device Components?

Rapid Time-to-Market: With fully digitized workflow programming, we can move from CAD files to physical components in as fast as 3 to 7 days, giving you an agile edge in product rollouts.

Comprehensive Medical Materials Stock: We maintain verified supply chains for certified biocompatible metals (like Titanium) and engineering plastics (like PEEK), providing comprehensive material certificates (MTRs).

Advanced 5-Axis Capability: Our investment in state-of-the-art multi-axis machinery minimizes setups, eliminating human stacking errors and maximizing part accuracy.

On-Demand Scaling: We comfortably handle high-mix, low-volume orders. Test the market or finalize clinical trials with small batches, and seamlessly scale up to mass production when you are ready.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
