OEM CNC Turned Aluminum Parts

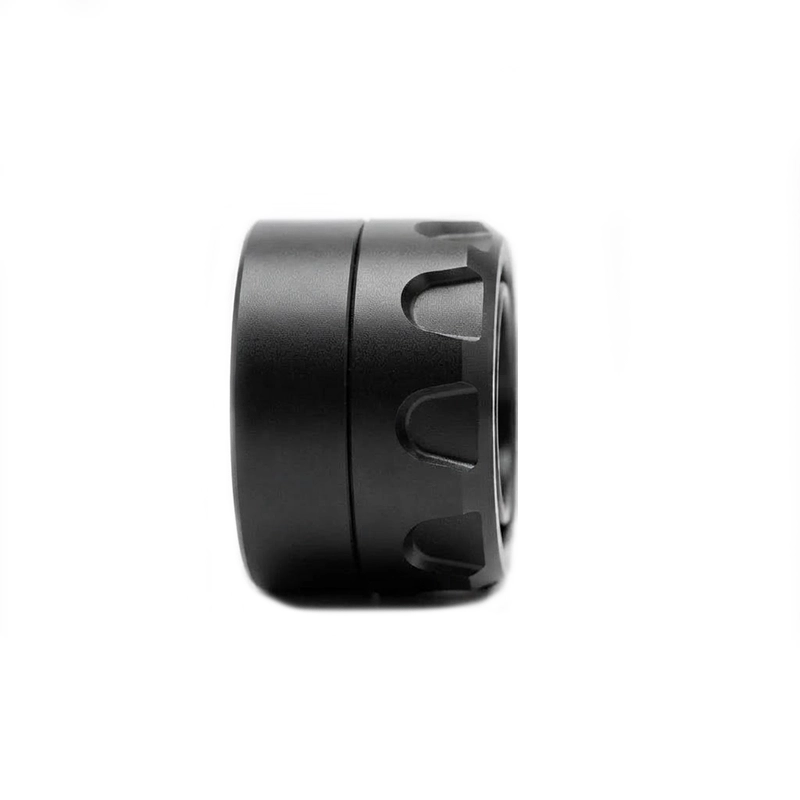

FlexiTurn provides precision CNC turning and precision indexed 3-axis milling for custom 6061-T6 aluminum two-piece anti-slip optical lock rings. Finished with Type III hard black anodizing for matte anti-glare performance and wear resistance, these components deliver precise axial adjustment, ergonomic grip, and secure position locking across lens barrels, optical positioning modules, and industrial imaging systems.

To eliminate thread runout, uneven recess indexing, and post-coating thread binding, FlexiTurn applies single-setup machining with pre-compensated anodize dimensional allowances. Our controlled process guarantees strict thread concentricity relative to locating faces, uniform locking torque, and repeatable drop-in assembly fit from prototype through high-volume OEM production.

Machining Process & Capabilities

FlexiTurn executes all core machining in-house, with tooling, cutting parameters and anodize allowances calibrated specifically for aluminum optical components to preserve thread quality and dimensional stability.

• Single-Setup Precision CNC Turning: Internal threads, bore diameters, locating faces and outer profiles are finished from solid 6061-T6 bar stock in one chucking with a unified primary datum, eliminating re-chucking error and ensuring true thread concentricity and face runout control. Rough and finish passes are separated with polished carbide tooling and air-blast chip clearing to minimize built-up edge (BUE) and maintain uniform thread surface finish.
• Indexed Milling of Anti-Slip Recesses: Circumferential grip recesses are milled on precision indexing fixtures tied directly to the turning datum, ensuring equal angular spacing and consistent recess geometry for uniform manual adjustment feel.
• Anodize Thickness Compensation: Type III hard black anodizing is performed with pre-machined dimensional allowances calibrated to verified coating thickness (20±5 μm), ensuring post-anodize thread and bore dimensions remain within tolerance.
• Precision Grinding Option: For high-tolerance optical alignment applications, internal grinding achieves upgraded bore diameter tolerance and surface finish for enhanced concentricity and optical axis alignment.

Materials & Dimensional Specifications

FlexiTurn sources certified premium aluminum bar stock, with full material traceability and mill test reports for every OEM order.

• Standard material: 6061-T6 aluminum alloy; 6063-T5, 7075-T6 and other grades available on request
• Standard surface finish: Type III hard black anodize; alternate anodize colors and chem film available on request
• Thread concentricity: ≤ 0.02 mm relative to reference face datum
• Recess indexing accuracy: ±0.5° relative to central bore axis
• Diameter tolerance: ISO 286 H7 standard; precision grades available on request
• As-machined surface finish: Ra 1.6–3.2 μm; ground Ra 0.4–0.8 μm available on request
• Maximum turning diameter: 150 mm

Why Choose FlexiTurn

Single-Setup Turning Eliminates Thread Runout and Binding

Most shops process threaded lock rings across 2–3 separate chucking operations for internal and external features, introducing cumulative runout that causes binding, uneven locking torque and premature wear. FlexiTurn’s optimized turning workflows complete all critical rotational features in one setup with unified datum control, delivering superior concentricity without re-fixturing drift.

Aluminum-Specific Cutting Controls Eliminate BUE and Thread Degradation

Aluminum forms built-up edge rapidly under cutting when processed with generic steel tooling and feeds, leading to rough thread surfaces, dimensional scatter and accelerated tool wear. FlexiTurn uses polished carbide tooling, optimized chip loads and air blast cooling purpose-built for aluminum, delivering clean, consistent thread profiles and stable batch-to-batch dimensions.

Anodize Thickness Compensation Built Into Machining Dimensions

Hard anodizing adds measurable thickness to all surfaces, which can push threads and bores out of tolerance when unaccounted for — a common oversight at commodity shops that leads to high post-treatment rejection. FlexiTurn calibrates pre-anodize machining dimensions to validated coating thicknesses, ensuring finished parts remain within specification after surface treatment.

Scalable OEM Production With Locked Process Parameters

FlexiTurn supports full product lifecycles: low-volume prototypes machined directly from bar stock with zero tooling cost, and high-volume OEM production with locked process parameters and in-process SPC checks to meet consistency and delivery requirements.

Full In-House Control & Full Traceability

All core operations — turning, milling, deburring and final inspection — are completed in-house with zero subcontracting of critical processes. Anodizing is performed via audited, approved suppliers with controlled coating parameters. Full material batch traceability is maintained from raw bar stock to finished part, and all production adheres to our ISO 9001:2015-aligned quality management system.

Full-Spectrum CNC Machining Partner

Beyond aluminum turned components, FlexiTurn is a full-spectrum precision CNC machining manufacturer producing parts in stainless steel, brass, copper and engineering plastics, plus precision pre-machined billets. We can consolidate your complete bill of materials for optical and electromechanical assemblies from a single source.

How to Proceed

• Submit your 2D (PDF/DWG) or 3D (STEP/IGES) CAD files, along with material grade, tolerance requirements, finish specifications, order quantity and operating environment details.
• Receive an aluminum-specific DFM assessment and transparent OEM quotation from FlexiTurn within 24 hours.
• Prototype parts are manufactured and delivered with full inspection reports and material certification for design validation and performance testing.
• Scale seamlessly to volume OEM production with locked process parameters and scheduled in-process dimensional verification.
• Global shipping with protective packaging, delivered directly to your facility.

For OEM CNC turned aluminum lock rings and precision optical components backed by tight process control and consistent batch quality, partner with FlexiTurn. Contact our engineering team today to submit your CAD files and request your free project assessment and custom quotation.

FlexiTurn – Precision Machining, Delivered with Trust.
