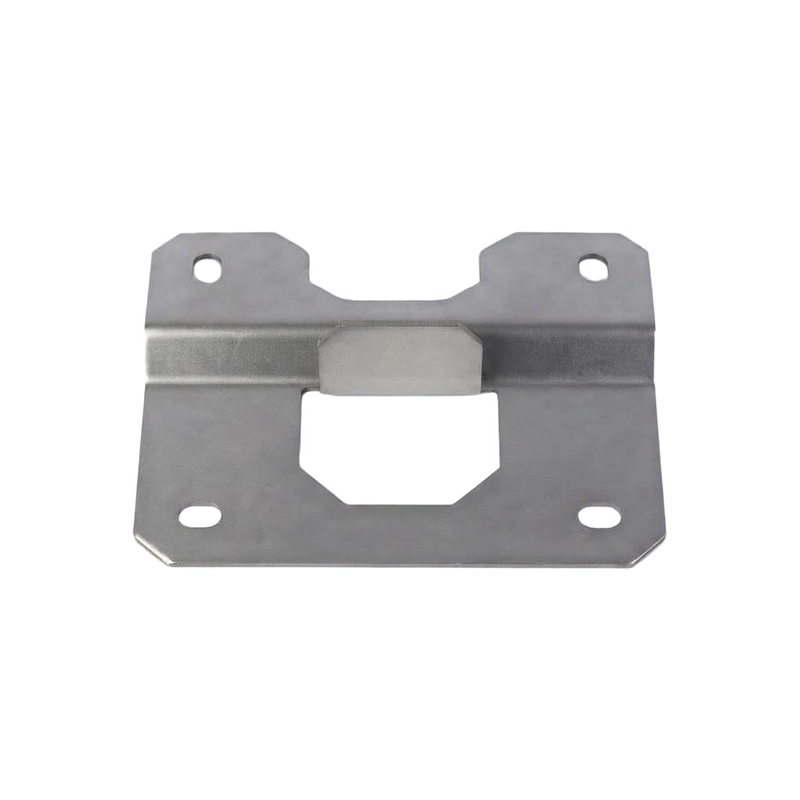

Custom 316 Stainless Steel Sheet Metal Parts

FlexiTurn provides precision sheet metal fabrication for custom 316 stainless steel mounting brackets featuring integrated central locating tabs. Engineered for corrosive industrial, medical, and cleanroom applications, these components deliver superior chloride resistance, reliable structural retention, and precise equipment alignment.

To manage the elevated springback and work hardening inherent to 316 stainless steel, FlexiTurn applies grade-specific CNC blanking and calibrated press-brake forming. This controlled process eliminates angular deviation, hole misalignment, and residual burrs, ensuring repeatable dimensional accuracy while preserving full material integrity across every

FlexiTurn executes the full production sequence in-house, with process parameters calibrated specifically for 316 and 316L stainless steel sheet to ensure consistent forming accuracy and material integrity.

• CNC Laser Cutting & Blanking: All blank profiles, clearance cutouts and mounting hole patterns are cut via fiber CNC laser with optimized nesting, delivering clean, near-burr-free edges and precise overall dimensions. Material grain orientation is controlled during nesting to ensure uniform bending behavior and minimize springback variation across all parts.
• Precision Press Brake Forming: All offset bends and central locating tab features are formed on calibrated CNC press brakes with 316-specific springback compensation programmed per material gauge and inner bend radius. In-process angle verification ensures accurate bend angles and consistent positional alignment of the locating feature relative to all mounting holes.
• CNC Punching & Secondary Drilling: Mounting holes and precision cutouts are punched or drilled with indexed fixturing, ensuring accurate hole spacing and true position relative to bend and locating features. All hole edges and cutout perimeters are deburred to eliminate sharp edges and stress risers that can initiate corrosion.
• Secondary Operations & Surface Treatment: Vibratory deburring, grained surface finishing and ASTM A967-compliant citric passivation are available on request to enhance corrosion resistance, remove free iron contamination and meet specific surface cleanliness requirements.

Materials & Technical Specifications

FlexiTurn works with certified premium stainless steel sheet, with full material test reports and complete batch traceability for every order.

All 316 stainless steel sheet metal components are manufactured under FlexiTurn’s ISO 9001:2015-aligned quality management system:

• 100% Material Traceability: Full batch tracking from mill certificate to finished part, with original material test reports and corrosion certification on file for every order.
• In-Process Verification: In-process angle, hole position and dimensional checks at all critical forming stages to catch deviation early and prevent scrap.
• Final Inspection: Full dimensional verification, edge burr screening and surface condition inspection to ensure compliance with drawing specifications and corrosion performance requirements.

Why Choose FlexiTurn

• Grade-specific forming accuracy: Most general sheet metal shops run 316 stainless steel parts with generic 304 bend parameters, leading to uncontrolled springback, angular drift and inconsistent hole alignment. FlexiTurn’s press brake operations use 316-specific springback compensation and in-process angle verification, delivering consistent locating accuracy and mounting fit that commodity fabricators cannot match.
• Full in-house process control: All operations — from blanking and forming to finishing and final inspection — are performed on FlexiTurn’s premises with zero subcontracting. This reduces lead time variability, eliminates third-party markup and maintains direct oversight of every quality-critical step.
• Sheet metal DFM engineering support: Every CAD submission receives a complimentary Design for Manufacturability assessment within 24 hours, focused on sheet metal forming constraints and 316 stainless steel corrosion performance. Our engineering team evaluates bend radii, hole-to-bend edge distances, cutout geometry and mounting hole patterns to mitigate production risk, optimize unit cost and maximize long-term corrosion performance in service.
• Cost-effective, reliable global partnership: As a China-based precision manufacturing enterprise, FlexiTurn leverages a mature industrial ecosystem to deliver competitive pricing without compromising quality or corrosion performance. We support orders from single prototypes to high-volume production, with dedicated project managers providing transparent, regular communication throughout every project. Your designs and intellectual property are fully protected by our strict confidentiality protocols and NDA frameworks.

Partner with FlexiTurn

Submit your 2D (PDF/DWG) or 3D (STEP/IGES) CAD files, along with material grade, thickness requirements, order quantity and operating environment details. FlexiTurn provides a sheet metal-specific DFM assessment and transparent factory-direct quotation within 24 hours. Prototype parts are manufactured and delivered with full inspection reports and material certification for design validation and fit testing. Scale seamlessly to volume production with locked process parameters and multi-point in-process dimensional verification. Global shipping with protective packaging, delivered directly to your facility.

For custom 316 stainless steel sheet metal components backed by grade-specific forming expertise and end-to-end quality control, partner with FlexiTurn. Contact our engineering team today to submit your CAD files and request your free project assessment and custom quote.

FlexiTurn – Precision Machining, Delivered with Trust.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
