Prismatic Cell Module Stacking Fixture
Product Overview:

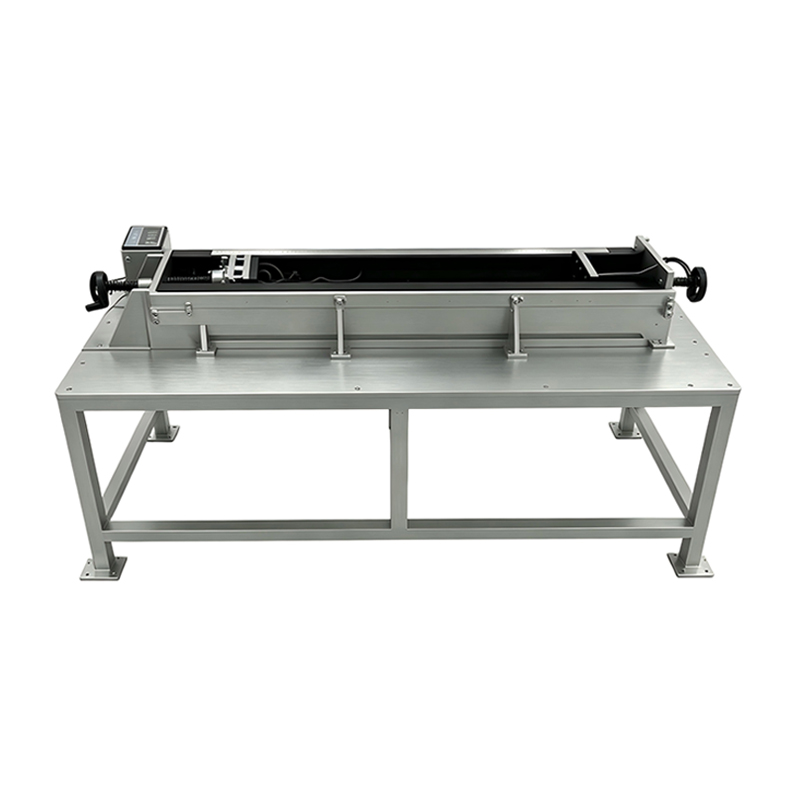

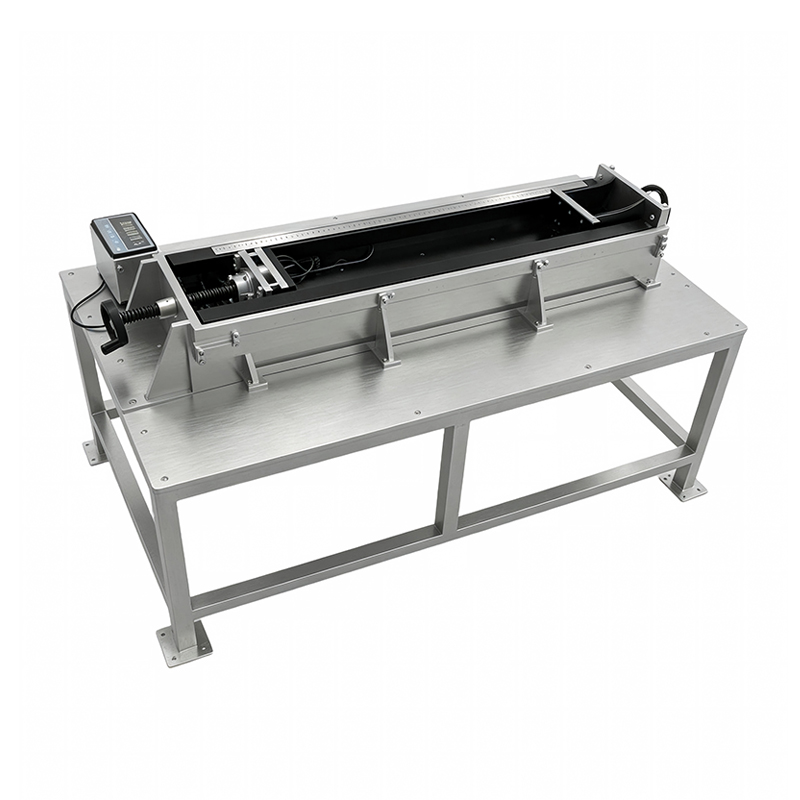

Prismatic Cell Module Stacking Fixture is a precision assembly fixture designed for the accurate positioning, alignment, and stacking of prismatic battery cells during module assembly. It helps improve assembly consistency, supports automated production, and ensures reliable preparation for subsequent processes such as compression, welding, and final module assembly.
Workmanship:
Material: Aluminum
Inquiry Email: sales@flexiturn.com
Prismatic Cell Module Stacking Fixture Details
The Prismatic Cell Module Stacking Fixture is a precision assembly fixture designed for the positioning, alignment, and stacking of prismatic battery cells during module assembly. It provides a stable and repeatable setup that helps ensure consistent cell placement while preparing modules for downstream processes such as compression, busbar welding, end plate installation, and final assembly.
To accommodate different cell formats, module designs, and production requirements, we offer fully customized fixture solutions tailored to each application. Our fixtures help improve assembly accuracy, streamline production, and support reliable battery module manufacturing for electric vehicles, energy storage systems, and other lithium battery applications.
Product Features
Designed for high-precision manufacturing, the fixture delivers excellent dimensional consistency and repeatability for both manual and automated assembly lines. Its optimized structure enables fast loading and unloading of battery cells while minimizing positioning errors and improving overall assembly efficiency.
Each fixture can be customized to match specific cell dimensions, equipment interfaces, and automation requirements, making it easy to integrate with robotic systems, conveyor lines, and automated battery assembly equipment.
Custom Design & Engineering
Our engineering team works closely with customers to develop fixture solutions based on cell specifications, module architecture, and manufacturing processes. Using 3D design tools and engineering simulation, we optimize fixture structures to achieve reliable positioning, smooth operation, and long-term durability.
From concept development to final production, every fixture is engineered to meet the specific requirements of your manufacturing line while helping reduce development time and improve production efficiency.
Precision CNC Manufacturing
All fixture components are manufactured using high-precision CNC machining, with complex geometries produced on advanced 5-axis machining centers. Critical locating features, guide surfaces, and assembly interfaces are carefully machined to ensure excellent dimensional accuracy and reliable assembly performance.
Our manufacturing process focuses on consistency, repeatability, and long-term reliability, making the fixtures suitable for continuous production environments.
Surface Finishing
A variety of surface finishing options are available to meet different operating environments and durability requirements, including anodizing, nickel plating, chrome plating, black oxide, and sandblasting.
For components that come into contact with battery cells, appropriate surface treatments and protective designs can be applied to help minimize the risk of scratching or damaging the cell housing during handling and assembly.
Quality Assurance
Every fixture undergoes a comprehensive quality inspection before delivery. Critical dimensions are verified using Coordinate Measuring Machine (CMM) inspection to ensure dimensional accuracy and assembly consistency.
From raw material selection and precision machining to final inspection, each manufacturing stage is carefully controlled to deliver reliable, high-quality fixtures that meet customer requirements.
Applications
The Prismatic Cell Module Stacking Fixture is widely used in lithium battery module assembly lines for electric vehicles, energy storage systems (ESS), and other prismatic cell manufacturing applications. It supports cell positioning, alignment, stacking, and pre-assembly operations before compression, busbar welding, and final module assembly.
It is an ideal solution for battery manufacturers, module and pack producers, automation integrators, and battery production equipment manufacturers.
Why Choose Us
We specialize in precision fixtures and custom components for lithium battery manufacturing. Our integrated capabilities include product design, engineering simulation, 5-axis CNC machining, surface finishing, CMM inspection, and fully customized manufacturing.
By combining engineering expertise with advanced manufacturing technologies, we provide high-quality fixture solutions tailored to each customer's production process and automation requirements. Whether you need prototype tooling or volume production, we are committed to delivering reliable products, consistent quality, and responsive technical support.
Contact us to discuss your project and discover how our custom fixture solutions can support your battery manufacturing applications.
