Custom CNC Turned Black POM Parts

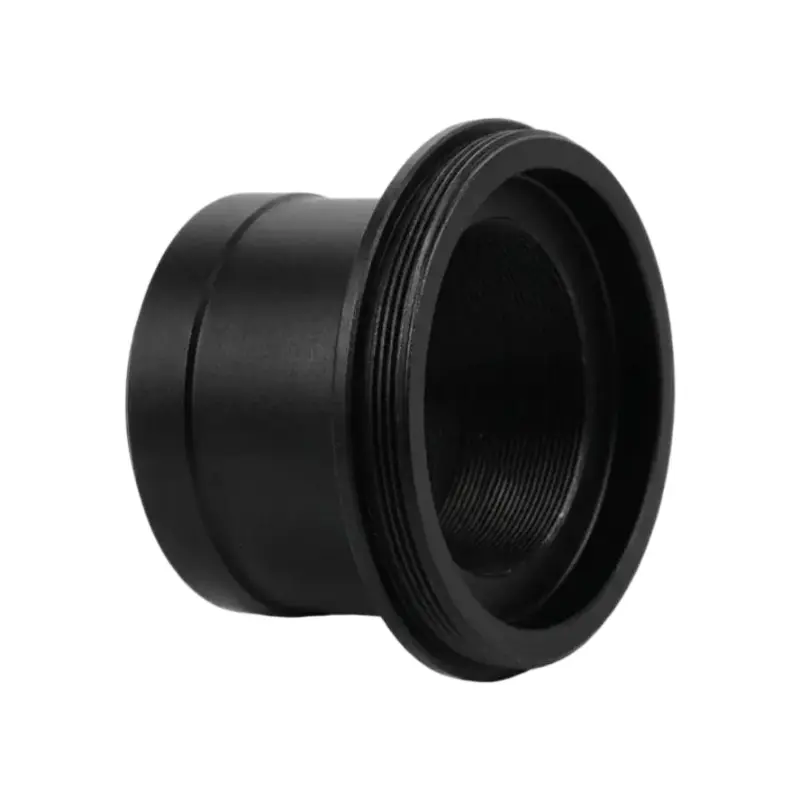

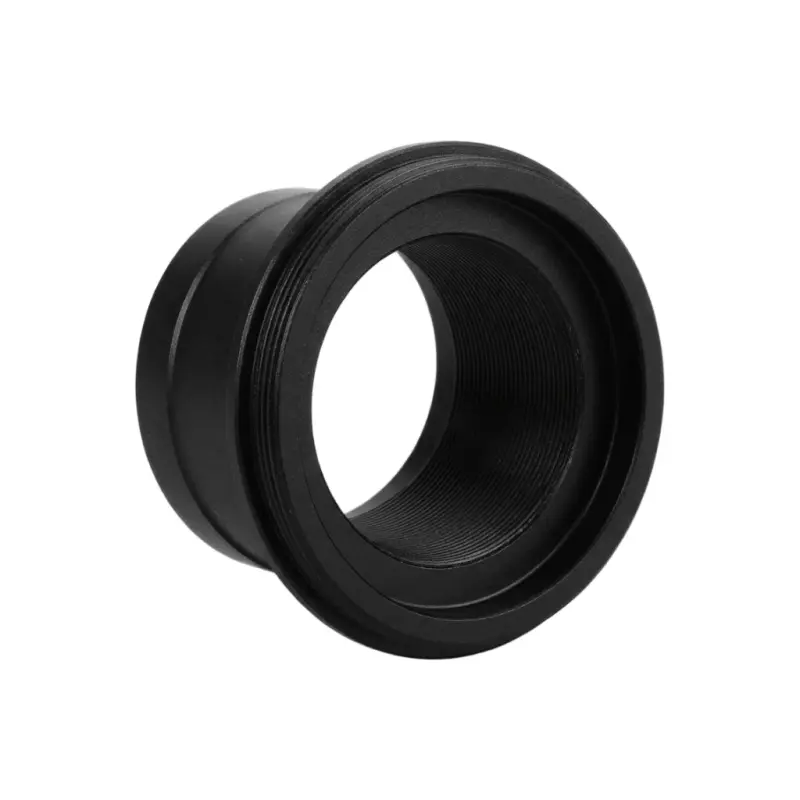

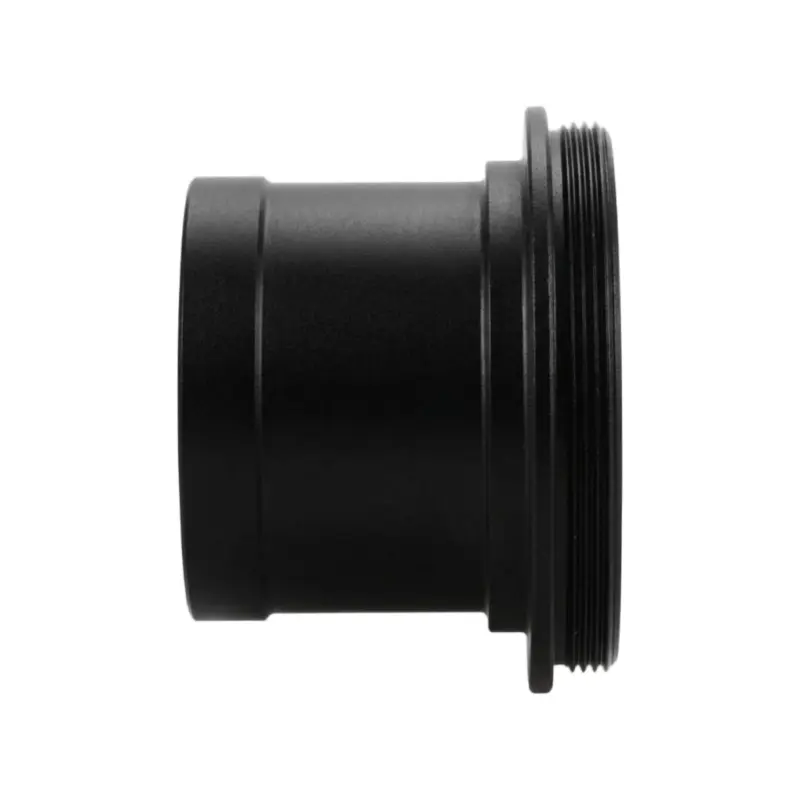

FlexiTurn provides custom CNC turning services for black POM (polyoxymethylene) components, exemplified by the flanged threaded adapter shown above. This part features external threads, internal threads, and an integral flange. FlexiTurn machines it from black POM rod stock to customer-supplied 2D or 3D CAD data. The component is not a standard catalog item — it is a custom part produced through FlexiTurn's CNC machining service.

The service FlexiTurn delivers is the controlled machining process: converting your design into a functional POM component with defined thread accuracy, bore size, and flange geometry. FlexiTurn works from your drawings and supports order volumes from single-piece prototypes to production quantities.

Machining Capabilities Demonstrated

This black POM adapter requires several operations that demonstrate FlexiTurn's process control:

• CNC Turning: For external threads, flange face, and outer diameter.
• Internal Threading & Boring: For precision internal threads and through bores.
• Thread Cutting: Single-point or die-head threading to specified class.
• Deburring & Edge Finishing: To remove sharp edges and burrs from thread entries and bore intersections.
• Material: Black POM (Acetal)

POM is an engineering thermoplastic known for high stiffness, low friction, and excellent dimensional stability compared to nylon. Black POM is commonly specified for aesthetic or light-blocking reasons, or as a base for anti-static grades. It is widely used for bushings, rollers, spacers, threaded adapters, and precision mechanical components.

 Machining POM

POM is heat-sensitive. Excessively high local temperatures during cutting can lead to melt edges, smearing, or dimensional deformation. POM also carries internal stress from the extrusion process. When material is removed, this stress can release and cause springback or warping after machining, particularly on thick sections or complex geometries. For threaded features, thermal growth and post-machining shrinkage can affect thread fit and concentricity.

FlexiTurn addresses these challenges through:

Material Stabilization: Allowing POM stock to equilibrate to workshop temperature before machining to reduce thermal expansion error.

Roughing & Semi-Finishing Separation: Roughing removes bulk material quickly; semi-finishing allows residual stress to relax before final passes, minimizing post-machining warpage.

Sharp, Dedicated Tooling: Sharp carbide or high-gloss tools with positive rake geometry reduce cutting heat and surface smearing on POM.

Controlled Threading: Threading parameters are adjusted for POM's elasticity to maintain thread form and fit after cooling.

Available Materials

FlexiTurn regularly machines POM in black, natural, and other colors. Alternative engineering plastics are available upon specification, including:

POM (Acetal): Standard black and natural grades.

Nylon (PA6 / PA66): Higher impact strength, higher moisture absorption.

PEEK: Higher temperature and chemical resistance.

PTFE: Lower friction, higher temperature limit.

All raw materials are sourced from certified suppliers with documented batch traceability.

Tolerances and Quality

Machining tolerances for POM depend on part geometry and wall thickness. FlexiTurn can achieve typical tolerances of ±0.05 mm on critical features, with tighter tolerances available upon engineering review. FlexiTurn performs in-process dimensional verification and final inspection. Material certificates and dimensional reports are available upon request. The quality management system is ISO 9001:2015 certified.

Why Choose FlexiTurn

FlexiTurn is a China-based precision CNC machining service provider focused on custom engineered components, not off-the-shelf distribution.

POM Machining Expertise: We understand POM's thermal sensitivity and internal stress behavior, and apply process controls to hold tolerances and surface finish.

Multi-Axis Turning & Milling: 3-axis, 4-axis, and 5-axis capability for complex features, cross-holes, and multi-sided parts.

DFM Review: We review your CAD data to optimize wall thickness, thread profiles, and feature accessibility for machining.

No Tooling Cost: CNC machining eliminates mold investment for prototypes and low-to-medium volume production.

Documented Traceability: Certified raw materials and inspection reports provided.

FlexiTurn serves industries including automation machinery, electronics, telecom, semiconductor, industrial equipment, and medical devices.

Get Started

Submit your 2D/3D CAD files, specify the POM grade (black or natural), and provide target quantity. FlexiTurn's engineering team will review your design, provide DFM feedback, and deliver a detailed quotation.

Contact FlexiTurn today to discuss your black POM machining requirements.

FlexiTurn – Precision Machining, Delivered with Trust.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
