Custom CNC Machined Copper Fittings

Product Overview

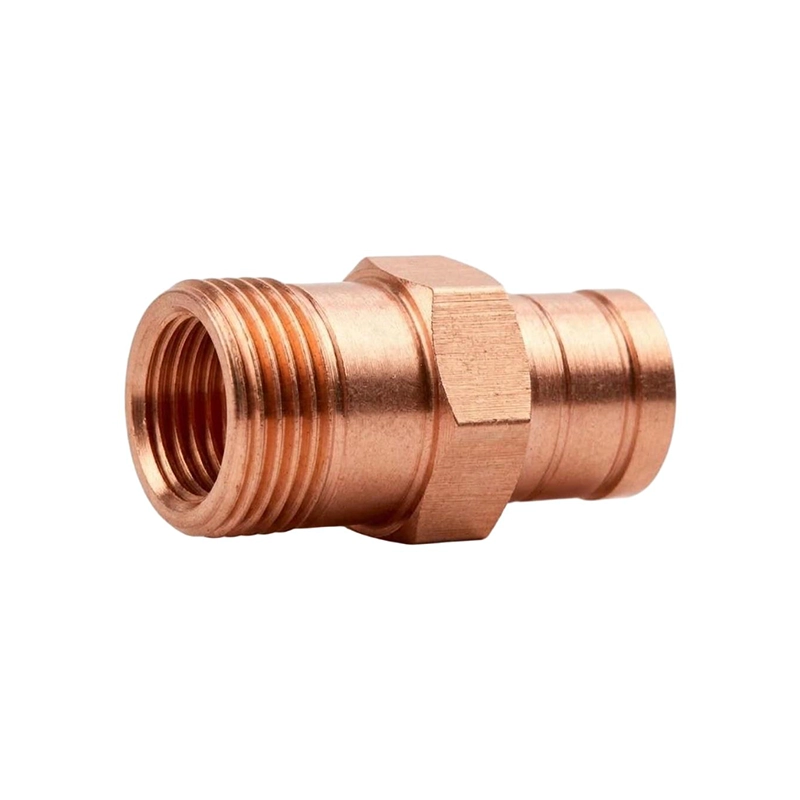

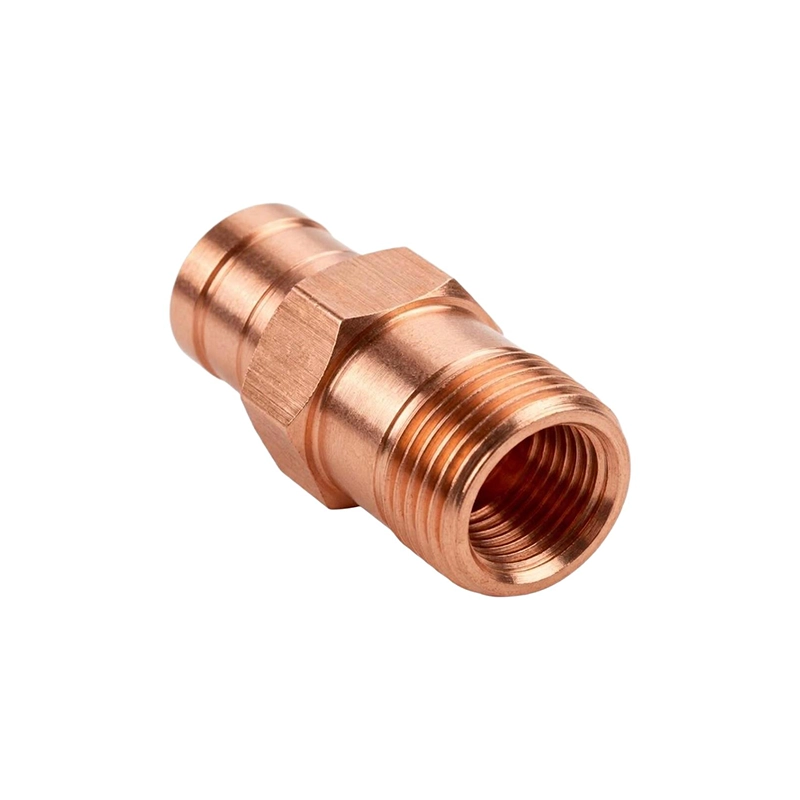

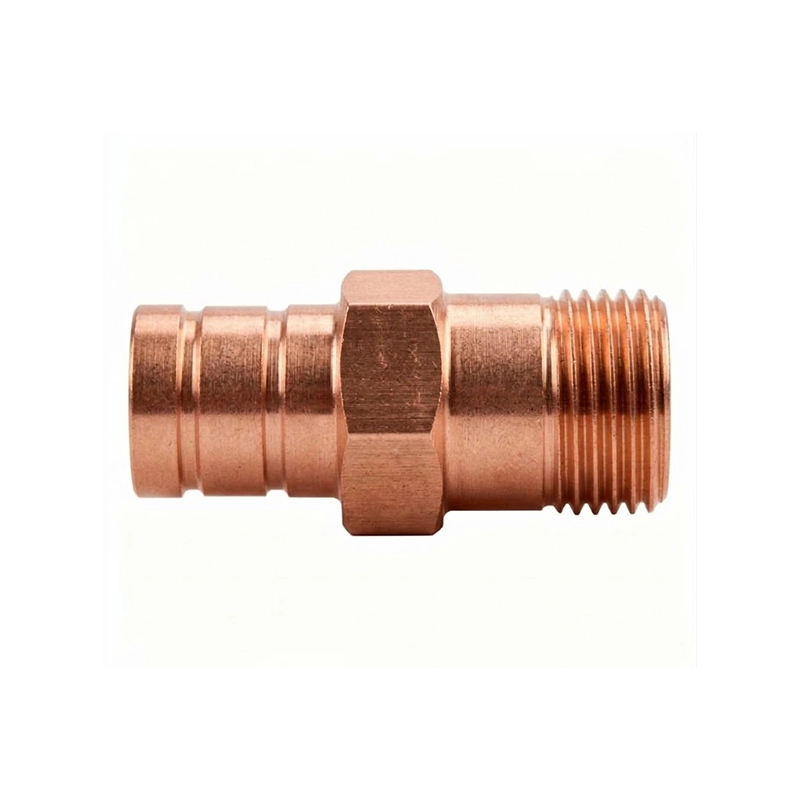

The copper hose barb fitting shown is a representative example of FlexiTurn’s custom CNC machining capabilities for fluid system components. This straight adapter integrates a male threaded end, a multi-barb hose connection end, a central wrenching hex, and a precision internal flow bore. Every dimension, thread specification, and barb geometry is produced according to customer 2D or 3D CAD files. FlexiTurn machines custom fittings to your specific application requirements.

FlexiTurn’s core offering is the CNC machining process itself: converting your design data into a fully functional fluid fitting with controlled thread accuracy, consistent barb form, and optimized internal bore finish. FlexiTurn supports orders ranging from one-off prototypes and low-volume batches through to high-volume serial production.

Machining Capabilities Demonstrated

Manufacturing this hose barb fitting requires multiple precision machining operations, reflecting FlexiTurn’s process control and equipment capability:

• CNC turning for external thread cutting, multi-ridge barb profile forming, cylindrical body finishing, and internal through bore machining
• CNC milling for the wrenching hex flats with accurate flatness and parallelism
• CNC drilling for the axial through bore with consistent surface finish
• Precision tapping for internal thread features where specified
• Deburring and edge finishing to remove sharp edges and burrs

Available Materials

FlexiTurn regularly machines copper and brass alloys for fluid fitting applications, including C11000 ETP copper, C36000 free-cutting brass, and phosphor bronze. For applications requiring higher mechanical strength or enhanced corrosion resistance, FlexiTurn also machines equivalent fittings in 304/316L stainless steel and 6061-T6 aluminum. All raw materials are sourced from certified suppliers with documented material traceability.

Tolerances and Quality Assurance

FlexiTurn maintains tight dimensional control on all critical fitting features. For hose barb fittings, typical tolerances are ±0.05 mm on barb diameters, thread positions, and bore concentricity; tighter tolerances can be achieved to meet specific requirements. FlexiTurn performs in-process dimensional verification and final inspection on every order. Material test certificates and dimensional inspection reports are available upon request. FlexiTurn’s manufacturing quality system is ISO 9001:2015 certified.

Surface Finishing Options

To meet functional and aesthetic requirements, FlexiTurn offers a range of secondary surface treatments: metal polishing, electroplating (nickel, tin, silver), sandblasting, brushed finish, and laser marking. Anodizing and powder coating are not applicable to copper and brass alloys and are not offered for these materials. Where plating is specified, FlexiTurn controls pre-plating dimensions to maintain final assembly fit after coating.

Why Choose FlexiTurn

FlexiTurn is a China-based precision CNC machining service provider focused on custom machined parts, not off-the-shelf component supply. FlexiTurn works with customers worldwide to deliver high-quality machined parts on time and at competitive cost.

Full custom machining based on your CAD drawings

Production scalability: prototype, low volume, and high volume capabilities

Multi-axis machining capacity: 3-axis, 4-axis, and 5-axis CNC turning and milling

DFM (Design for Manufacturability) review prior to production

Dedicated project management for every order

Certified raw materials with documented traceability

Fast turnaround and reliable lead times

FlexiTurn serves industries including automation machinery, robotics, non-safety-critical automotive, non-implantable medical equipment, general oil and gas (non-critical), industrial process equipment, and semiconductor peripheral equipment.

Get Started

If you require custom CNC machined copper or brass hose barb fittings, or similar fluid connection components, send your drawings to FlexiTurn. FlexiTurn’s engineering team will review your design, provide DFM feedback, and deliver a detailed quotation for your project.

Contact FlexiTurn today to discuss your precision CNC machining requirements.

FlexiTurn – Precision Machining, Delivered with Trust.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
