High Precision Steel Parts CNC Machining for Automotive & Machinery

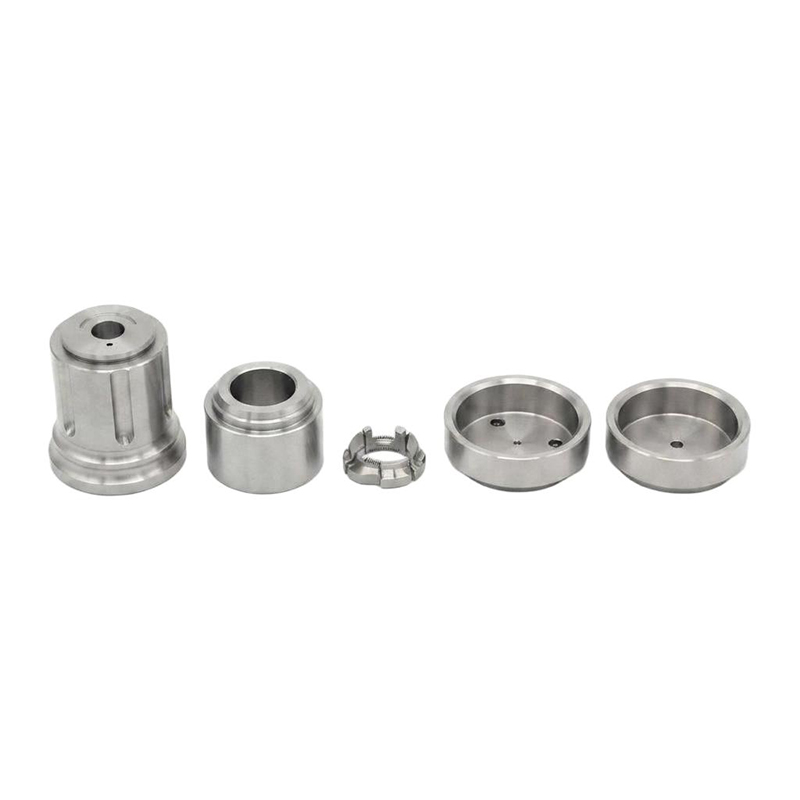

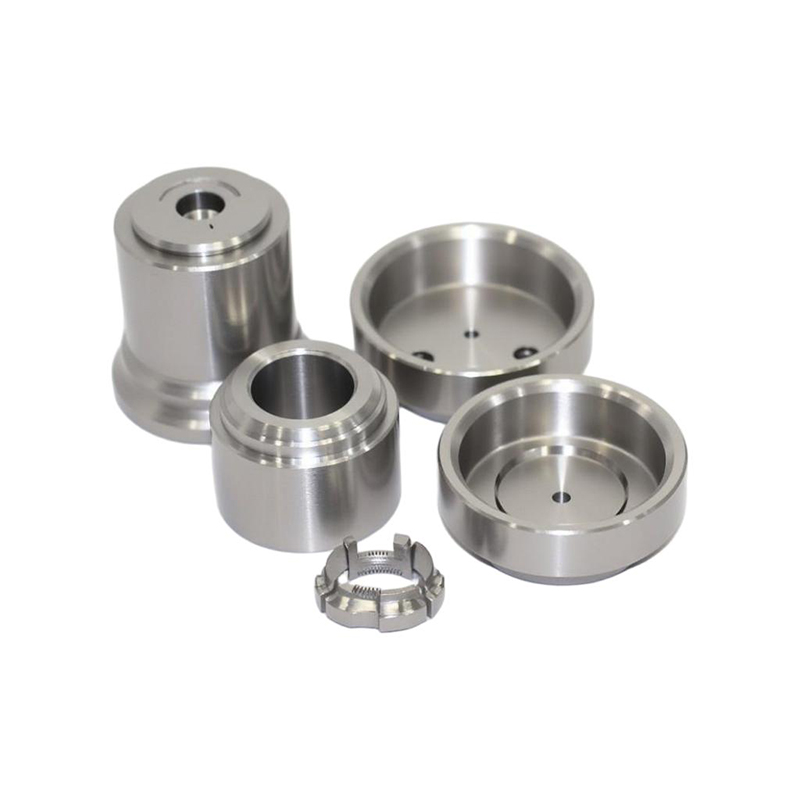

FlexiTurn provides full-process CNC machining services for precision actuator housings, mating sleeves, end caps, and segmented locking assemblies used in motion control and fluid power systems. We treat each project as a process development task, not a standard part order.

Engineering Review & DFM

Our engineering team begins with drawing review, including GD&T interpretation, tolerance stack-up analysis, and functional datum identification. For multi-part assemblies, we evaluate fit conditions across the complete tolerance chain.

DFM feedback covers:

Datum selection
Feature accessibility
Process sequence
Tolerance feasibility
Material Selection

Material selection is based on operating conditions and functional requirements.

Commonly machined materials:

Stainless steels: 17-4PH, 316L, 304, 440C
Alloy steels: 4140, 4340
Titanium: Grade 5

Mill test reports and full material traceability are provided for every batch.

Process Planning

We structure the process route around the interaction between:

• CNC precision machining
• 3/4/5-axis milling
• Wire EDM
• Internal/external grinding

Rotational features, sealing surfaces, radial ports, and locking tooth geometry are planned together to minimize re-clamping and datum shift. Wire EDM is used for tooth profiles and spring channels where feature density exceeds conventional milling limits. Finish grinding is performed after major material removal to reduce residual stress and thermal distortion.

Dimensional Control

Typical capabilities:

Mating bores and sliding diameters: IT5–IT7

Concentricity and cylindricity: ≤0.005 mm where required

Internal sliding surface finish: Ra 0.2–0.4 μm via precision grinding

These values are monitored in-process to maintain repeatability across the full production batch.

Burr Control & Cleanliness

Cross-holes, internal threads, and locking teeth are edge-broken and deburred using mechanical and ultrasonic methods. Special attention is given to features that could cause fluid contamination or premature seal wear. Documented cleaning and handling procedures are provided when required.

Quality Verification

Quality verification includes:

• CMM dimensional inspection
• Bore gauging
• Thread gauge testing
• Optical comparator checks where applicable

First article inspection is completed before serial production. In-process checks are performed at defined operations. Final inspection reports and material certifications are supplied with every shipment. All work is controlled under our ISO 9001:2015-aligned quality management system.

Prototype to Production

FlexiTurn supports prototype development, low-volume validation, and full serial production. Our focus is not only on meeting print tolerances, but on ensuring that machined parts function correctly when assembled and operated under load.

Contact FlexiTurn for a DFM-backed review of your actuator housing or locking assembly drawings.
