High Precision Custom Meta CNC Machining Parts
Product Overview:
From precision CNC turned bushings to custom rotational components, we deliver one‑stop CNC turning, grinding and honing – from rapid prototyping to full‑scale production with consistent quality, fast turnaround, and global delivery.
Workmanship: CNC Grinding, CNC Turning, Metal Polishing, 3 Axis CNC Machining
Material: Stainless Steel
Inquiry Email: sales@flexiturn.com
High Precision Custom Meta CNC Machining Parts Details

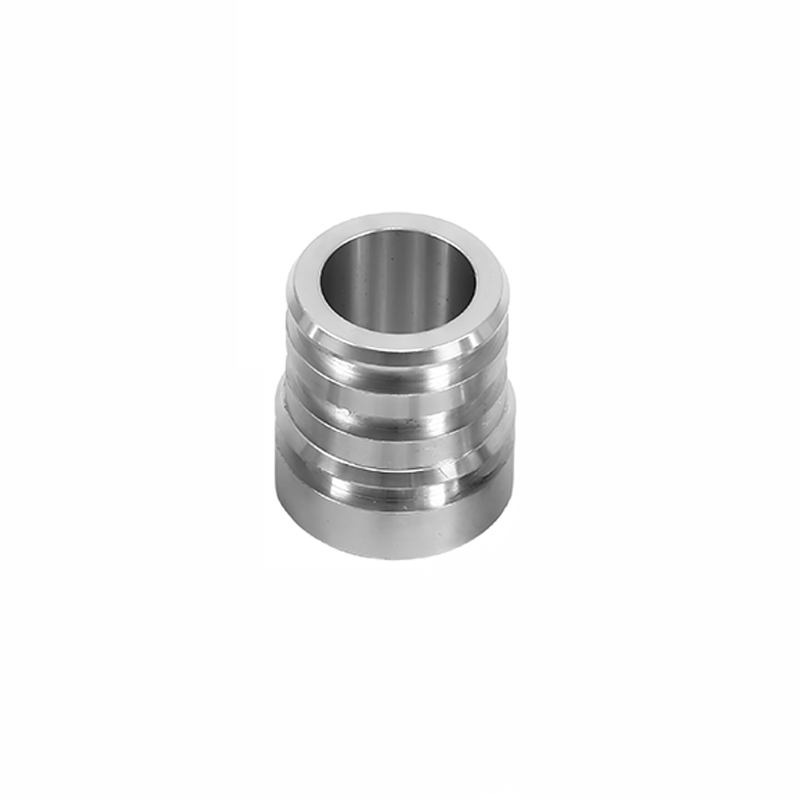

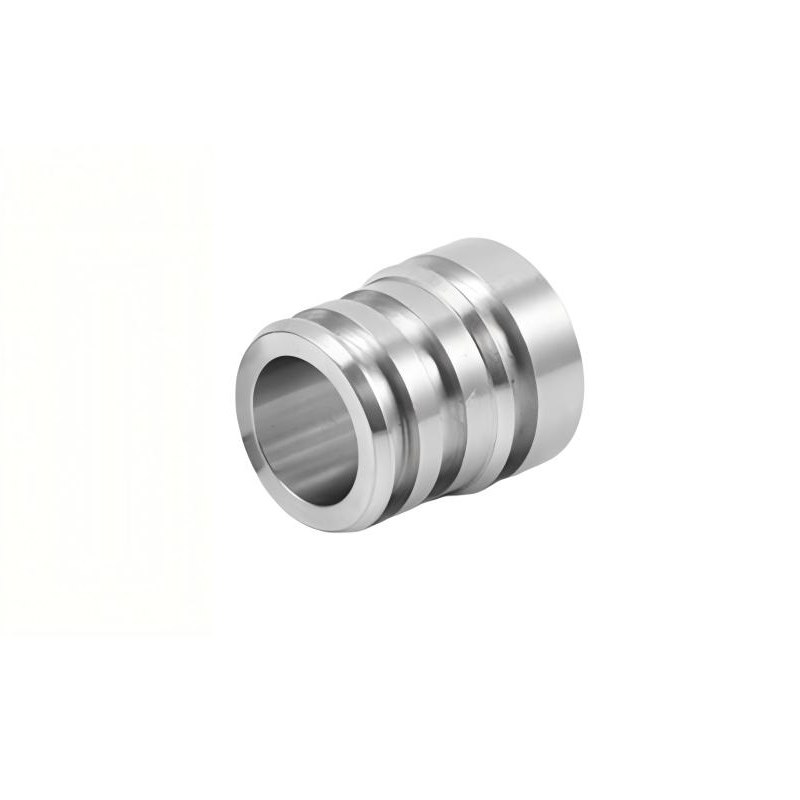

Custom Precision CNC Turned Bushing
This precision CNC turned bushing (also known as bearing sleeve or wear-resistant locating sleeve) is a non-standard custom machined rotational component widely used in hydraulic & pneumatic systems, mechanical transmissions, precision jigs, fluid equipment, and automation devices – where precise guidance, concentric locating, and wear-resistant support are essential.
Machined from solid bar stock via CNC turning, this one-piece sleeve structure delivers excellent rigidity and stable geometric accuracy. The precision inner bore serves as the core functional surface, providing guidance, concentric locating, and wear support for shafts, valve spools, or guide rods – with tight requirements for roundness, concentricity, and surface finish. The external annular grooves serve multiple purposes: O-ring seal grooves for hydraulic/pneumatic sealing, retaining ring grooves for axial positioning, and relief grooves for machining. The end locating step provides an axial mounting reference for precise assembly positioning.
We offer full customisation: groove profiles, dimensions, materials, and tolerances are all machined exactly to your drawings. MOQ starts at 1 piece, with rapid prototyping for urgent projects and free DFM feedback included with every quote. We also manufacture identical or similar custom bushings, sleeves, and precision rotational components to your drawings.
Key Specifications
| Parameter | Value |
| Standard dimensional tolerance (critical bore dimensions, for typical-sized parts) | ±0.01mm |
| High-precision tolerance (bore) | Down to ±0.005mm achievable with internal grinding / honing |
| Concentricity (bore to outer diameter / O.D.) | ≤ 0.02mm |
| Roundness | ≤ 0.01mm |
| Surface roughness (standard turning) | Ra ≤ 1.6μm |
| Surface roughness (with grinding / honing) | Ra ≤ 0.8μm |
| Materials | 304/316 stainless steel (standard), hardened carbon steel, bronze (lead free available), aluminum alloy |
| Surface Finish | As-turned, passivation, electropolishing, zinc and nickel plating, anodizing |
This Part Is Made In-House – From Start to Finish
This bushing is fully produced in-house – from DFM analysis and CNC turning to CMM inspection – exactly the service we deliver for every part.
Our Core Manufacturing Services
1. Precision CNC Turning
We operate advanced CNC lathes and mill-turn centers with live tooling, routinely holding ±0.01mm on critical bore dimensions for typical-sized parts, and capable of ±0.005mm with secondary grinding or honing.
| Service | Applied to This Bushing |
| CNC Turning | Turns the O.D., bore, end step, and multiple groove profiles in a single setup for superior concentricity |
| Internal Grinding / Honing | Achieves ultra-tight bore tolerances and Ra 0.8μm surface finish for high-precision applications |
| CNC Milling (live tooling) | Available for flats, cross-holes, or drive features on bushing variants |
| CNC Drilling & Tapping | Available for cross-holes or threaded mounting features |
2. Surface Finishing Services – Applied to This Component
| Process | Capabilities |
| Passivation | Standard corrosion-resistant finish for 304/316 stainless steel versions |
| Electropolishing | Smooth, bright finish for fluid and hygienic applications |
| Zinc and Nickel Plating | Corrosion protection for carbon steel bushings |
| Anodizing | Wear-resistant coating for aluminum bushing variants |
| Mechanical Finishing | Deburring, polishing, and surface texturing |
3. Multi-Material Expertise – With Application Insights
| Material | Key Applications |
| Stainless Steel (304, 316) | Fluid handling, food/medical equipment, corrosion-prone environments |
| Hardened Carbon Steel | High-wear transmission bushings, sliding friction applications |
| Bronze (lead-free available) | Self-lubricating bushings for low-speed, heavy-load sliding |
| Aluminum (6061, 7075) | Lightweight bushings for low-load precision equipment |
| Titanium | High strength-to-weight, corrosion-resistant applications |
| Plastics (POM, PEEK, Nylon) | Lightweight, insulating, self-lubricating solutions |
4. Quality Assurance – ISO 9001:2015 Certified
Free DFM Analysis – We don't just machine your parts; we optimize them. For this turned bushing, our DFM review focuses on bore roundness control, groove geometry, tool access, surface finish optimization, and tolerance stack-up – ensuring manufacturability without sacrificing performance.
Strict Inspection – All critical dimensions are verified in our temperature-controlled metrology lab using CMM, optical measurement, surface roughness testing, air gauging for bore accuracy, and First Article Inspection (FAI) protocols. Full FAI reports are provided with all first-batch orders.
Full Traceability – Inspection reports, material certifications, and dimensional records accompany every shipment.
5. Additional Integrated Manufacturing Services
Beyond CNC turning, we offer complementary capabilities to consolidate your supply chain. These services support full project requirements, so you can source all custom components from a single partner:
3/4/5-axis CNC Milling – For complex structural components requiring multi-axis machining
Sheet Metal Fabrication – Laser cutting, CNC punching, bending, stamping, welding
Injection Molding – Mold design, tooling, high-volume plastic production
Assembly Services – Component assembly and sub-assembly
Why Partner With Us?
| Benefit | What It Means For You |
| One-Stop Convenience | CNC turning, milling, finishing, molding, assembly – one supplier |
| Low MOQ – 1 Piece Welcome | Prototypes to mass production – same dedication |
| Fast Delivery | 3–5 days for bare turned parts; 5–7 days with surface finishing. Expedited prototyping available upon request. |
| Competitive Pricing | Efficient turning processes, volume purchasing |
| Technical Expertise | DFM, material selection, process optimization |
| Confidentiality | Strict IP protection and data security |
Start Your Next Project Today
Submit your CAD drawing (STEP, IGES, or DXF) for a free consultation and quote within 24 hours – whether you need this exact turned bushing, a custom precision rotational component, or full-scale production.
Contact our engineering team today – we're ready to turn your drawings into precision parts.
Q1. What types of machining services do you offer?
We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.
Q2. What materials can you work with?
We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.
Q3. What is your typical lead time?
Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.
Q4. How do you price your services?
Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.
Q5. What quality control measures do you have in place?
We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
