Custom Precision CNC Machining Parts
Product Overview:
From prototyping to full production, we offer one-stop precision CNC machining and integrated manufacturing services including milling, turning, 5-axis, grinding, drilling, injection molding, sheet metal fabrication, and surface finishing for custom metal and plastic parts.
Workmanship: CNC Milling, CNC Turning, CNC Drilling, Metal Polishing
Material: Aluminum
Inquiry Email: sales@flexiturn.com
Custom Precision CNC Machining Parts Details

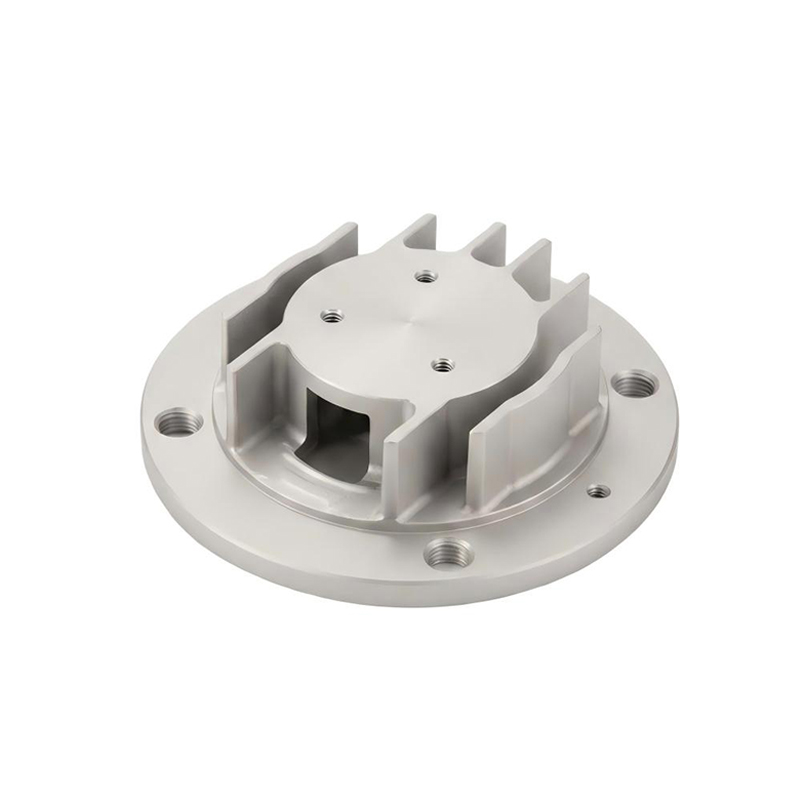

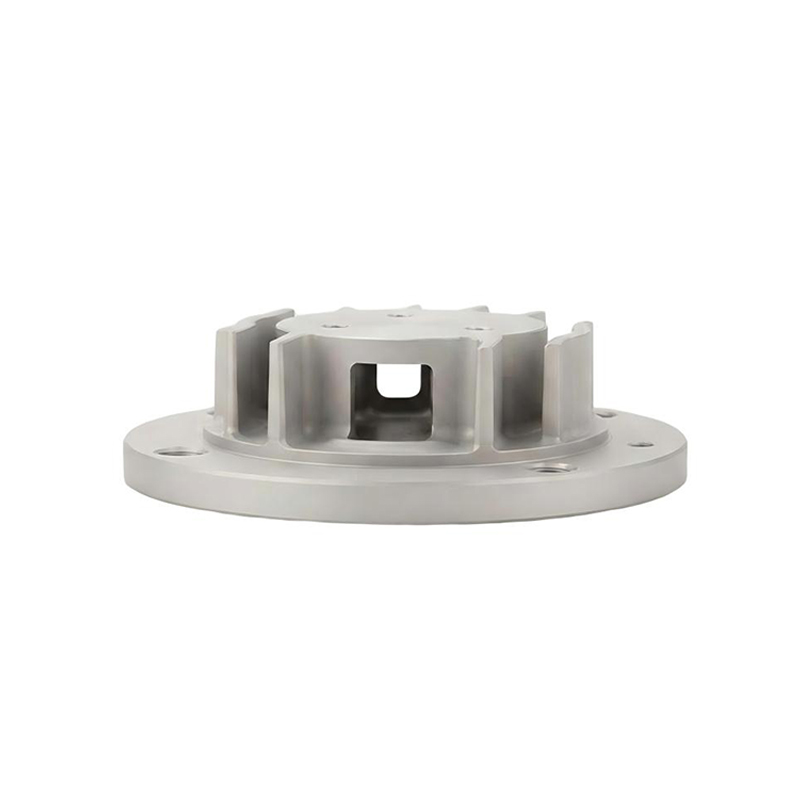

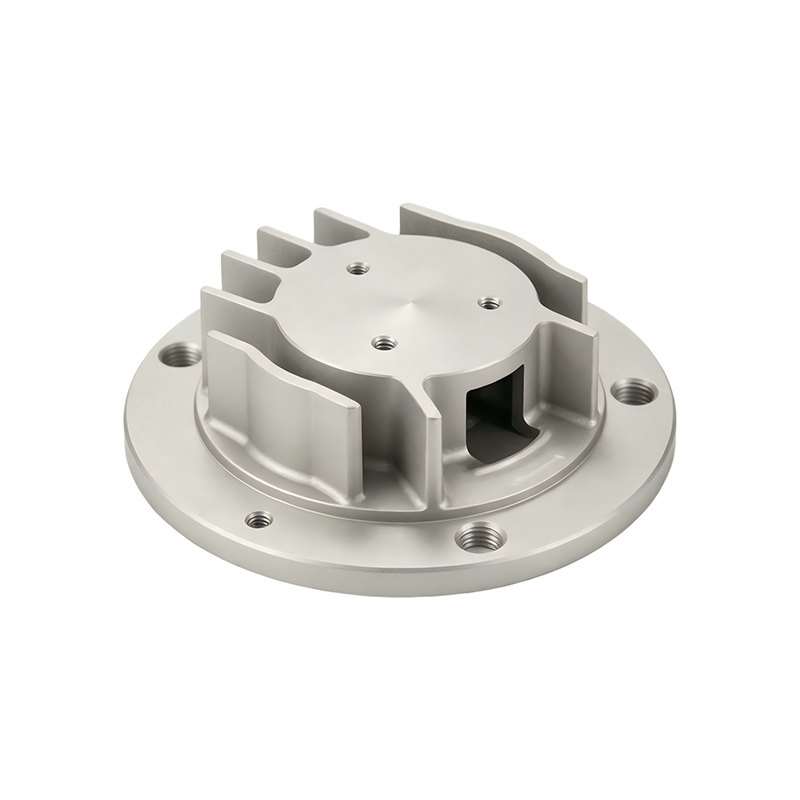

Custom Turn-Mill Heat Sink Flange
This circular flange-type heat sink mounting base (also known as motor cooling flange or optoelectronic module base) is a non-standard OEM component widely used in automation servo motors, industrial vision systems, and precision optical modules – where effective thermal management and accurate component positioning are mission-critical.
Product Highlights
| Feature | Function & Specification |
| Radial cooling fins | Maximise heat dissipation for reliable thermal management |
| Flange mounting face with threaded holes | Ensures flatness and coaxiality – coaxiality ≤ 0.02mm |
| Centre locating platform | Accurately mounts motors, sensors, or light sources |
| Side windows | Serve as cable ducts or airflow paths |
| Surface finish | As-machined or anodised (black hard anodising available) – Ra 0.1~3.2 or as per client’s needs |
| Material | 6061/6063 aluminium (stainless steel alternatives available) |
| Dimensional tolerance | ±0.01mm ~ ±0.001mm, or as per client’s specific requirements |
We offer custom manufacturing for identical or similar heat sink flanges and precision structural parts according to your drawings – whether you need minor modifications or a completely new design, we are ready to support you.
This Part Is Made In-House – From Start to Finish
This heat sink flange is fully produced in-house – from DFM analysis and precision turn-mill machining (holding tolerances from ±0.01mm to ±0.001mm) to anodising and final CMM inspection – exactly the end-to-end service we provide for all your parts. Our capabilities are not just promises; they are processes already proven on this very component.
Our Core Manufacturing Services
Precision CNC Machining
We operate state of the art 3-, 4-, and 5-axis machining centers, turning centers, and grinding equipment to deliver high-complexity parts with micron-level tolerances – routinely holding ±0.01mm and capable of ±0.001mm when required, always tailored to client specifications.
| Service | Description |
| CNC Milling | 3/4/5-axis simultaneous for complex geometries |
| CNC Turning | Including mill-turn capabilities for rotational parts |
| CNC Drilling & Tapping | Precision holes and threads |
| CNC Grinding | Surface & cylindrical precision grinding |
Not sure which material is right for your project? Our engineers offer free material selection guidance based on your application requirements:
| Material | Key Applications |
| Aluminum CNC Parts (6061, 6063, 7075) | Lightweight structural components, heat sinks, mounting bases |
| Copper CNC Parts | Electrical and thermal conductivity applications |
| Brass CNC Parts | Precision threads and complex miniature features |
| Titanium CNC Parts | High strength-to-weight, corrosion-resistant components |
| Stainless Steel CNC Parts (304, 316) | Superior corrosion resistance, high-strength structures |
| Plastic CNC Parts (POM, PEEK, Nylon, ABS, PTFE) | Lightweight, non-metallic, insulating solutions |
Integrated Manufacturing Services
Beyond CNC machining, we provide comprehensive manufacturing solutions to consolidate your supply chain:
Injection Molding Service – Complete solutions from mold design and tooling to high-volume plastic production with strict quality control. We support insert molding, overmolding, and multi-shot molding for complex plastic components.
Sheet Metal Fabrication – Laser cutting, CNC punching, bending, stamping, and welding for enclosures, brackets, chassis, and structural assemblies. Rapid prototyping and production runs available.
Assembly Services – Value-added component assembly and sub-assembly services to reduce your supplier management burden and streamline your final production.
Surface Finishing Services
We enhance both function and appearance with a full range of post-processing – including the hard anodising applied to the heat sink flange above.
| Process | Capabilities |
| Anodizing | Hard coat , color, clear – including hard anodizing for heat sinks |
| Electroplating | Chrome, nickel, zinc, gold, silver – for conductivity, corrosion resistance, and aesthetics |
| Electroless Nickel Plating | Uniform coating for complex geometries with excellent corrosion and wear resistance |
| Powder Coating | Any RAL color, matte/gloss/textured finishes – durable and decorative |
| Additional | Black oxide (for steel), passivation (for stainless steel), PVD coating, chemical film (Alodine) |
Quality Assurance – ISO 9001:2015 Certified
Quality is built into every step of our process – from the first design review to the final inspection of parts like the heat sink flange:
Free DFM Analysis – We don't just machine your parts; we optimize them. Our free Design for Manufacturability (DFM) analysis identifies potential manufacturing issues and cost-saving opportunities before production starts, ensuring smooth production and consistent quality.
Strict Inspection – We use CMM (Coordinate Measuring Machines), optical measurement systems, surface roughness testers, and First Article Inspection (FAI) protocols to ensure every part meets your exact specifications. In-process inspections are conducted at every critical stage – precisely how we verify dimensional tolerances (down to ±0.001mm), coaxiality (≤ 0.02mm), and surface roughness (Ra ≤ 1.6μm) on every heat sink flange – with the flexibility to adjust tolerances according to your specific needs.
Supply Chain Quality – We work only with approved, certified material suppliers, and conduct incoming inspection on all raw materials before they enter our production floor.
Why Partner With Us?
One-Stop Convenience: Consolidate CNC machining, molding, fabrication, assembly, and finishing under one roof – significantly reduce supplier complexity and logistics costs.
Low MOQ – 1 Piece Welcome: From single prototypes to high-volume mass production – every order receives the same dedication and quality standards.
Fast Delivery:3–5 days for bare machined parts; 5–7 days with surface finishing. Expedited prototyping available upon request.; global shipping to North America, Europe, Asia, Australia, and beyond.
Competitive Pricing: Efficient workflows, advanced equipment, and volume purchasing deliver professional quality at cost-effective prices.
Technical Expertise: Experienced engineering team for DFM, material selection, process optimization, and design for assembly (DFA) consulting.
Confidentiality: We treat your designs as your intellectual property; strict confidentiality agreements and data protection protocols are standard
Ready to Start Your Next Project?
Contact our engineering team today for a free consultation and a quote within 24 hours. Simply upload your CAD drawing (STEP, IGES, or any common format) or share your specifications – our experienced engineers will review your design, provide DFM optimization suggestions, and deliver a detailed manufacturing proposal.
Whether you need a custom heat sink flange like the one shown, a complex 5-axis component, or a full-scale production order – we deliver the precision, reliability, and value you need to succeed.
Q1. What types of machining services do you offer?
We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.
Q2. What materials can you work with?
We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.
Q3. What is your typical lead time?
Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.
Q4. How do you price your services?
Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.
Q5. What quality control measures do you have in place?
We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
