Custom CNC Turned Aluminum Parts

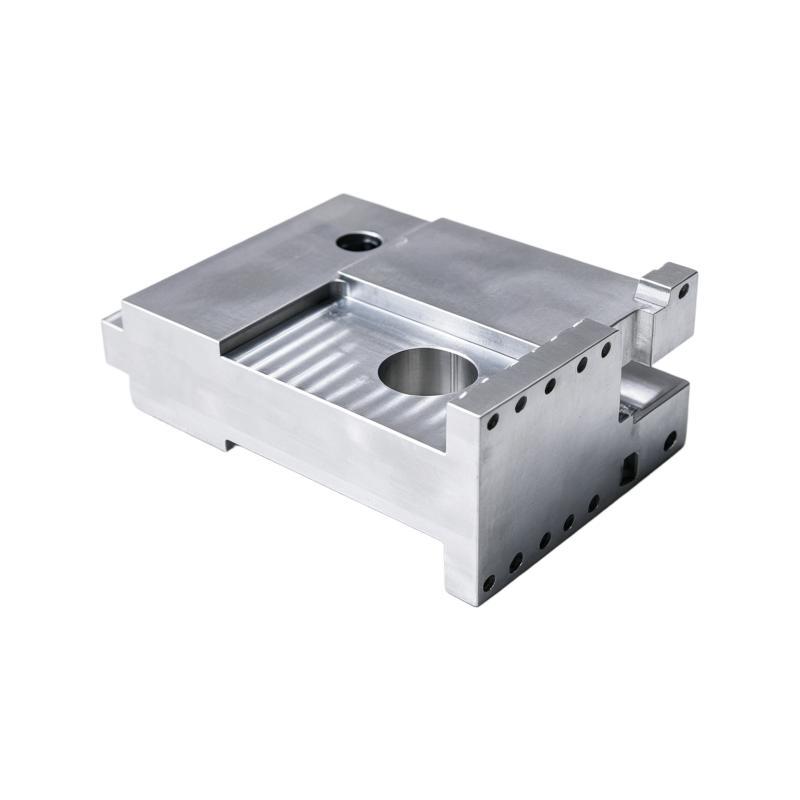

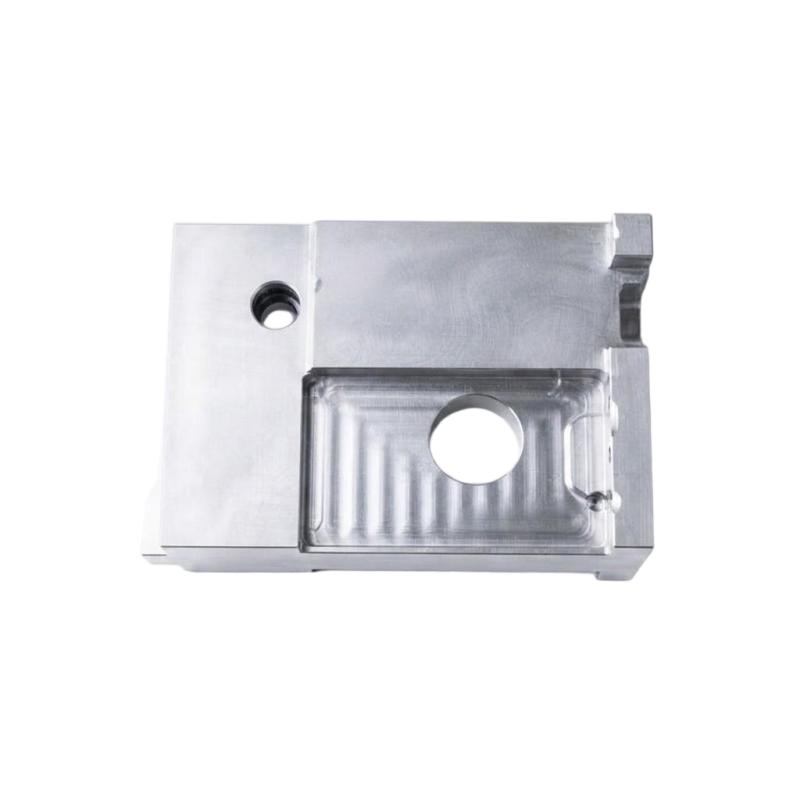

FlexiTurn provides precision CNC milling services for custom aluminum equipment bases, including this multi-cavity mounting housing engineered for structural support, component integration and precision locating in automation and robotic systems.

Integrated CNC Turning, 4-Axis Milling & Surface Finishing

• Single-Setup Rotational Turning: External diameters, internal bores, thread profiles, and end-face datums are turned in a single setup on certified 6061-T6 aluminum stock, maintaining strict bore-to-OD concentricity (≤0.01 mm) and thread alignment.
• 4-Axis Indexed Slot Milling: Circumferential radial side slots are machined via 4-axis indexing workholding, eliminating cumulative positioning errors and guaranteeing precise angular spacing between openings.
• Aluminum Process Calibration: Feeds, speeds, and cutting tool geometries are fine-tuned for 6061-T6 to eliminate burr formation along slot edges, suppress chatter, and prevent thermal dimensional drift.
• Pre-Compensated Hard Anodizing: Fully managed Type III hard anodizing delivers an abrasion-resistant black oxide layer. Internal threads are pre-compensated during machining to account for coating growth, guaranteeing final pitch tolerance.

Every aluminum equipment base is manufactured under FlexiTurn’s ISO 9001:2015-aligned quality system with comprehensive technical verification:

• 100% Raw Material Traceability: Complete batch tracking for solid aluminum billets, backed by original Mill Test Certificates.
• CMM & Flatness Verification: Multi-axis CMM profiling and surface plate dial indicator testing confirm datum flatness, hole coordinates, and cavity step heights.
• 100% Burr & Thread Inspection: Calibrated Go/No-Go thread plug gauge testing and optical edge screening ensure residual burrs and metal chips are fully removed from internal passages and tapped holes.

Why Choose FlexiTurn

• Multi-Axis Milling Expertise: Specialized 3-axis and 4-axis platforms equipped with aluminum-optimized tooling deliver complex cavity profiles and multi-sided mounting features in minimal setups, reducing lead times and cumulative setup error.
• Deformation-Minimizing Workholding: Customized fixturing and low-stress clamping strategies minimize alignment errors and reduce machining-induced part distortion for consistent long-term dimensional stability.
• 100% In-House Process Control: Raw material verification, multi-axis milling, drilling, tapping, deburring, and CMM inspection are conducted entirely on-site with zero subcontracting, ensuring consistent quality and reliable lead times.
• Complimentary DFM Review: Engineering teams evaluate wall thickness ratios, tool accessibility, and tolerance schemes to prevent machining bottlenecks and optimize unit costs.
• Strict Intellectual Property Protection: CAD models, drawing specifications, and project data are managed under encrypted internal protocols, with NDAs executed prior to file transfer.

Partner with FlexiTurn

Submit your 2D/3D CAD drawings (STEP/IGES/PDF) with material requirements, geometric callouts, and target batch quantities. FlexiTurn delivers technical DFM feedback and direct-factory quotations within 24 hours.

FlexiTurn – Precision Machining, Delivered with Trust.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
