Custom CNC Machined Copper Parts

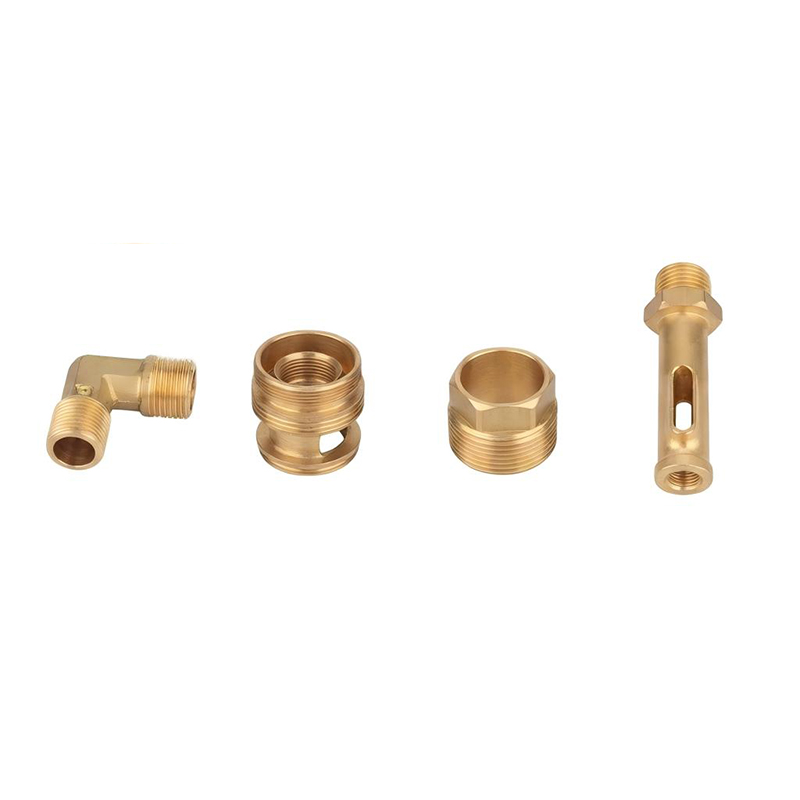

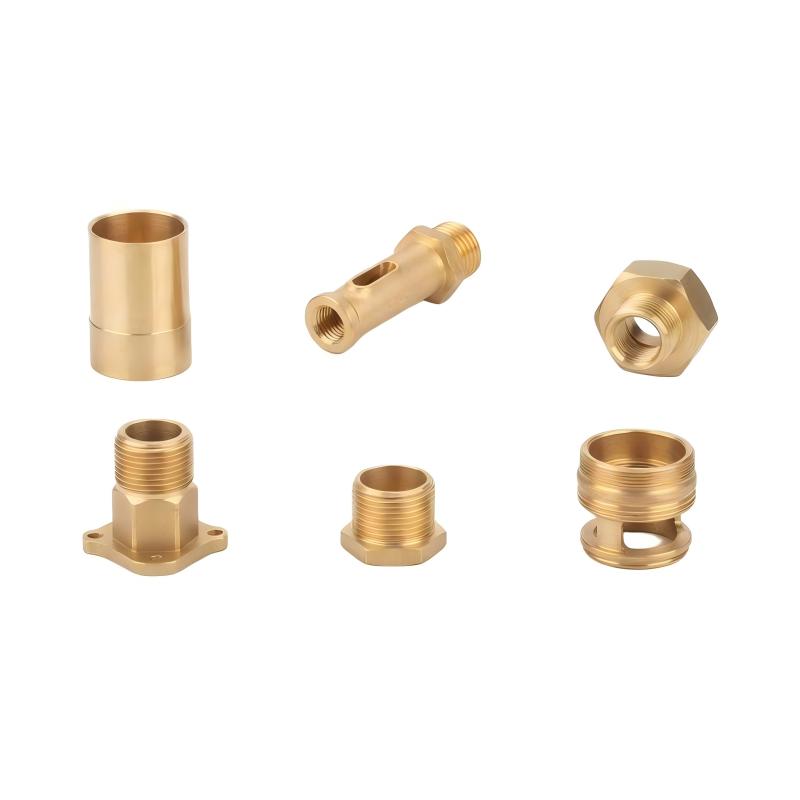

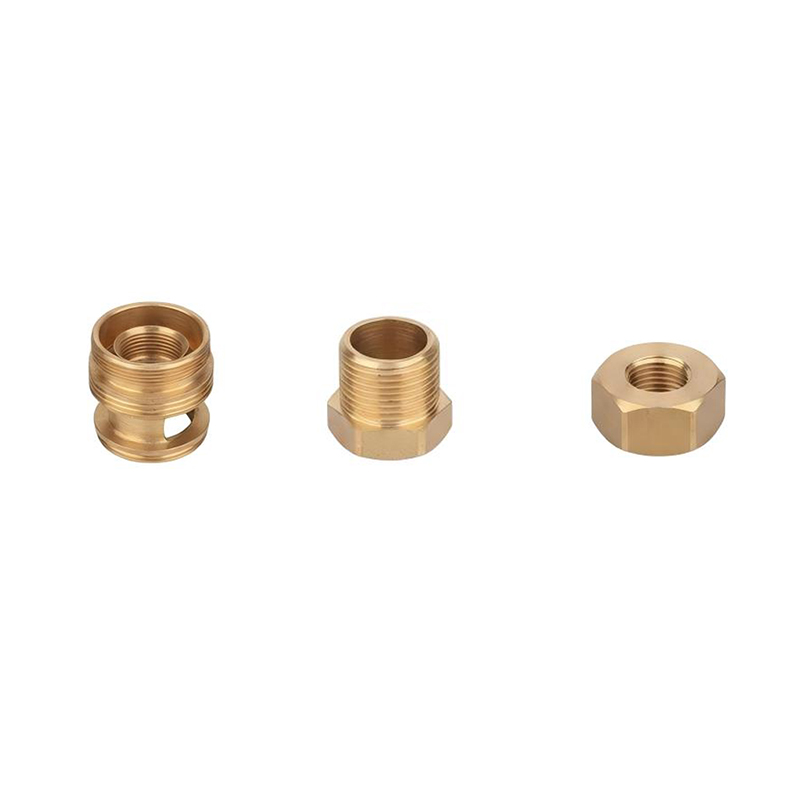

FlexiTurn produces precision brass fittings, bushings, and threaded connectors like the components shown above through our custom copper CNC machining services. We do not supply off-the-shelf standard parts — we deliver end-to-end CNC manufacturing solutions tailored entirely to your design requirements, turning your CAD drawings into finished, inspection-ready copper alloy components.

Advanced Processing & CNC Machining Capabilities

• Multi-Axis Turning & Milling Operations: High-speed lathe turning, 3/4-axis milling, and live-tooling turn-mill processes for complex multi-feature geometry in a single setup.
• Precision Threading & Geometry Control: Clean external and internal threads (NPT, BSPT, Metric, UNF), tight concentricity on stepped bores, radial slots, cross holes, and precision chamfered sealing faces.
• Comprehensive Copper Alloy Processing: Specialized machining across free-machining brass (C36000 / HPb59-1), eco-friendly lead-free brass, tellurium copper (C14500), pure copper (C11000), beryllium copper (C17200), and bronze alloys.
• High Surface Integrity & Burr-Free Edges: Precision deburring and controlled chip evacuation prevent micro-burrs inside fluid channels and threaded connections, achieving as-machined surface finishes of Ra 0.8–1.6 μm.

Why Choose FlexiTurn for Custom Copper Parts?

• Integrated In-House CNC Fleet: All turning, milling, drilling, and deburring operations are completed on our own equipment under one roof. Zero third-party outsourcing guarantees shorter lead times, stable quality control, and direct factory pricing with no middleman markups.
• Free 24-Hour DFM Engineering Review: Every submitted CAD file receives a complimentary Design for Manufacturability evaluation within 24 hours. Our engineering team assesses thread specifications, wall thickness, tool accessibility, and material selection to optimize unit costs and prevent manufacturing errors.
• Rapid Toolless Prototyping & No MOQ: Skip the upfront cost and long lead time of tooling. We machine functional prototype samples directly from certified brass and copper bar stock in 1–3 business days, with zero minimum order quantity for both prototype and production runs.
• Single-Source Multi-Material Capability: Beyond copper and brass, FlexiTurn machines aluminum, stainless steel, carbon steel, and engineering plastics in the same facility. We support hybrid assemblies and multi-material projects under a single vendor relationship.
• ISO-Aligned Quality Assurance: All production follows our ISO 9001:2015 aligned quality management system. Every order includes dimensional inspection records and material batch certifications, with RoHS and REACH compliance documentation available upon request.

Technical Capabilities & Scope

Service Model: Custom CNC Turning, Multi-Axis Milling, Turn-Mill Machining, Precision Threading & Sub-Assembly

Equipment Setup: Precision CNC Lathes, Live-Tooling Turning Centers, 3/4-Axis CNC Milling Machines, Automatic Bar Feeders

Machinable Copper Alloys: Brass (C36000, C37700, HPb59-1), Lead-Free Brass, Pure Copper (C11000/C10200), Tellurium Copper (C14500), Beryllium Copper (C17200), Bronze (C93200)

Dimensional Tolerances: ±0.01 mm to ±0.02 mm on critical turned features

Surface Finishes: As-Machined (Ra 0.8–1.6 μm), Electroless Nickel Plating, Passivation, Tin Plating, Polishing

Quality Assurance: 3D CMM inspection, Optical profile measurement, Thread plug/ring gauge verification, Material Certification with every batch

Project Workflow & How to Order

1. Submit CAD Drawings: Upload your 2D (PDF/DWG) or 3D (STEP/IGES) CAD files specifying material grade, plating requirements, and target quantity.
2. Fast DFM & Proposal: Receive a thorough DFM engineering evaluation and transparent direct-factory quote within 24 hours.
3. Rapid Toolless Prototyping: Direct CNC machining of evaluation samples from certified bar stock, complete with dimensional inspection reports.
4. Volume Production: Scalable CNC production, precision deburring, ultrasonic cleaning, and multi-point QC inspection.
5. Global Express Delivery: Protective packaging shipped directly to your facility worldwide.

Partner with FlexiTurn for reliable, precision-driven custom copper CNC machining services. Contact our engineering team today for your free review and quote!

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
