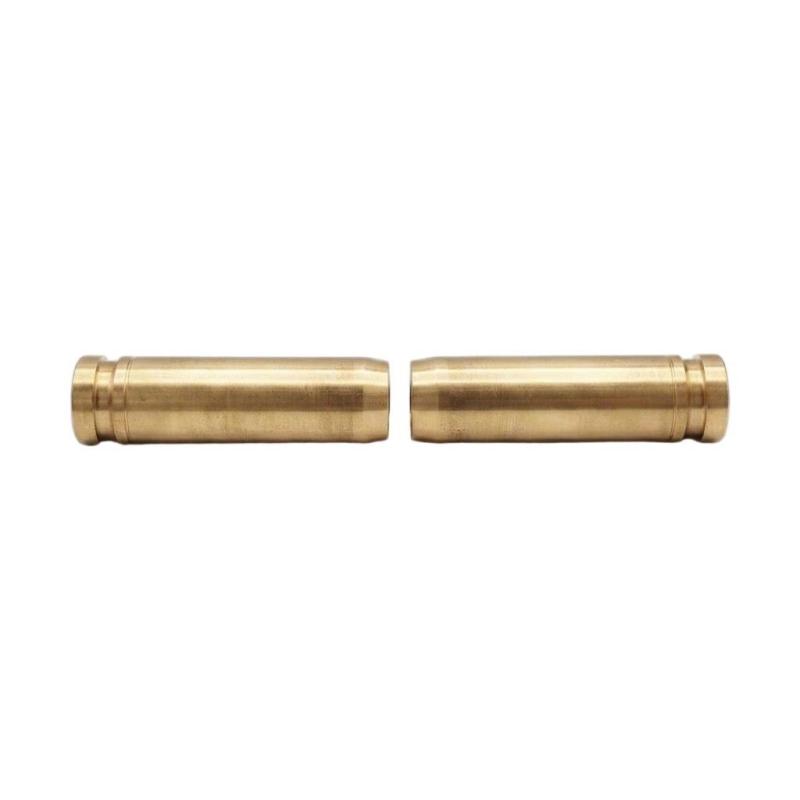

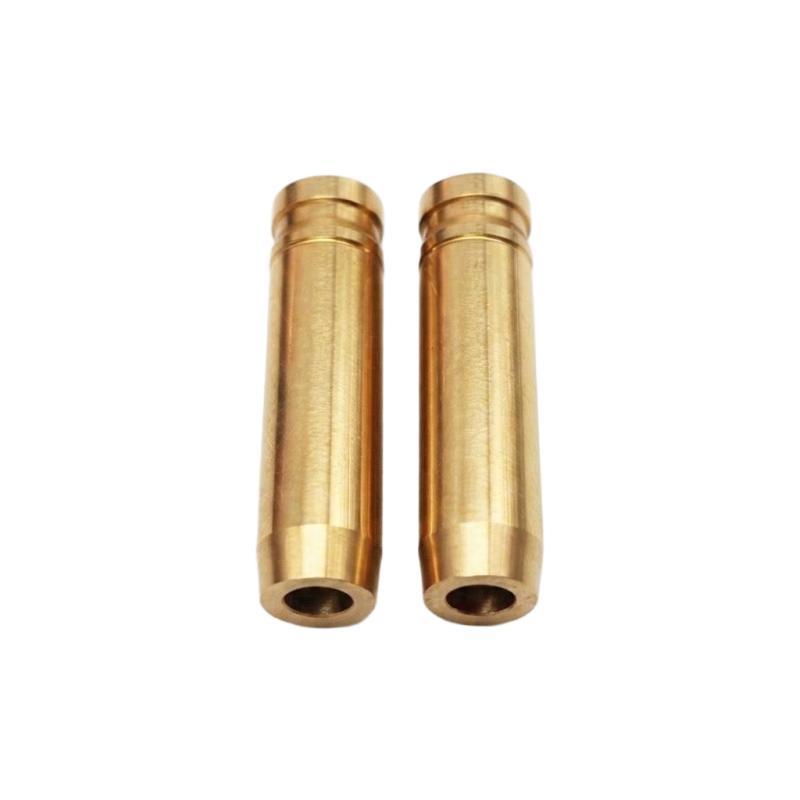

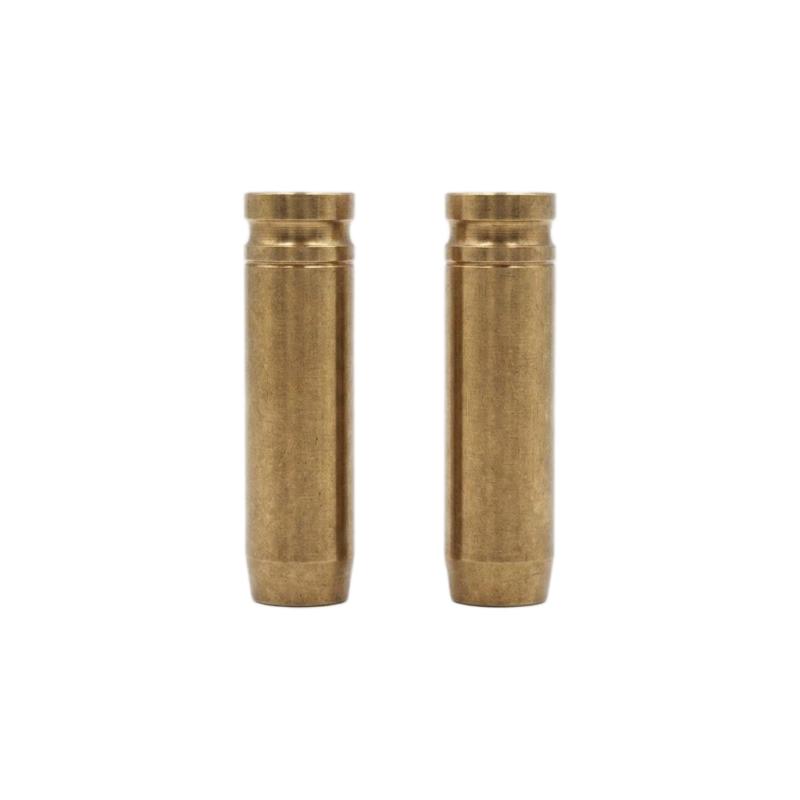

Custom Bronze Valve Guide CNC Machining

At FlexiTurn, we specialize in manufacturing high‑precision bronze valve guides and wear components through our dedicated CNC machining services. Every part shown in our portfolio is a representative example of our custom capabilities—we machine each component strictly to your CAD specifications, delivering finished, dimensionally verified parts tailored to your engine and equipment requirements.

Our in-house fleet of high-precision CNC lathes and internal grinding equipment enables us to process bearing-grade copper alloys with consistent accuracy and surface integrity. We maintain full control over all critical features of precision valve guides:

• Concentric bearing bores
• Stepped outer diameters
• Locating snap ring grooves
• Tapered lead-in faces and chamfered ends

Strict process control ensures uniform bore straightness, wall thickness consistency and dimensional repeatability across every production batch.

We work with certified bronze grades including tin bronze, leaded bearing bronze and aluminum bronze, with complete raw material batch traceability for every order.

General turned features: ±0.02 mm Precision ground internal bores: down to ±0.01 mm under controlled production conditions Surface finish: Ra 0.4–0.8 μm, supporting reliable lubrication, low wear and extended service life in reciprocating motion applications

Why Partner with FlexiTurn?

1. Integrated In-House Turning & Grinding

All turning, boring, grinding and deburring operations are completed on our own equipment under one roof. No third-party outsourcing delivers:

• Shorter lead times
• Stable process control
• Transparent pricing with no middleman markups

2. Free 24-Hour DFM Engineering Review

Submit your CAD files and receive a complimentary Design for Manufacturability evaluation within 24 hours. Our engineering team reviews:

• Wall thickness and fit tolerances
• Surface finish requirements
• Material selection

We provide actionable recommendations to optimize manufacturability, reduce unit costs and prevent premature wear or failure in service.

Skip the cost and lead time of dedicated tooling. We machine functional prototype valve guides directly from certified solid bronze bar stock in 1–3 business days.

No minimum order quantity (MOQ) for both prototype trials and full production runs Seamlessly scale from a single test piece to high-volume production with the same reliable supplier

4. Single-Source Multi-Material Capability

Beyond bronze and copper alloys, FlexiTurn also machines aluminum, stainless steel and engineering plastics in the same facility. We support hybrid assemblies and multi-material projects, giving you one trusted partner for all your custom component needs.

5. ISO-Aligned Precision Quality Assurance

All production follows an ISO 9001:2015-aligned quality management system. Every order includes:

• Dimensional inspection records
• Raw material batch certifications
• RoHS and REACH compliance documentation (available upon request) Typical Applications

How to Get Started

Simply upload your 2D (PDF/DWG) or 3D (STEP/IGES) CAD files, along with your material grade, required quantity and any special performance requirements. We will respond with detailed DFM feedback and a transparent quotation within 24 hours.

Partner with FlexiTurn for precision, reliability and full-service support on your custom bronze valve guide machining projects. Request your free DFM review and quote today.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
