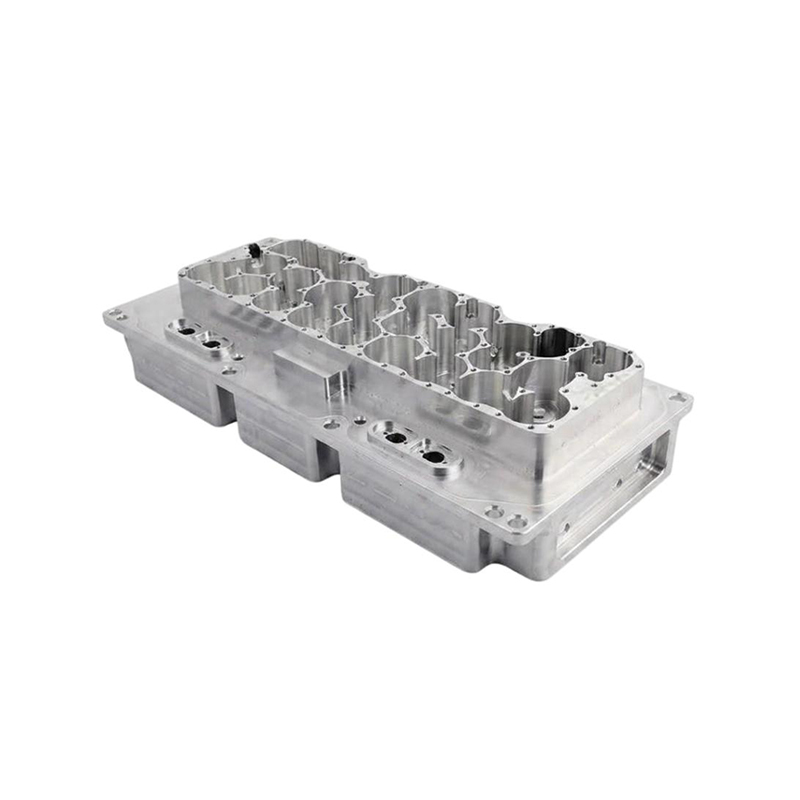

Custom Precision Magnesium Alloy CNC Machining Cavity Filter

In the rapidly expanding 5G telecommunications infrastructure, Base Station Antennas (BSA) and Remote Radio Units (RRU) are becoming increasingly complex and heavily loaded. The Cavity Filter is the core component responsible for transmitting clear signals while eliminating frequency interference. To meet the strict weight limits of tower mounting without sacrificing structural integrity or signal isolation, engineers are turning to the lightest structural metal available: Magnesium Alloy.

At FlexiTurn, we specialize in the high-precision CNC machining of non-standard 5G telecom components. We carve highly intricate resonant cavities directly into lightweight magnesium blocks. Our advanced CNC milling centers ensure that every internal dimension, tuning screw thread, and RF sealing surface is machined to absolute perfection, ensuring your 5G network hardware operates flawlessly in extreme outdoor environments.

Key Advantages of Our Magnesium Cavity Filters

Ultimate Lightweight Performance: Magnesium is 33% lighter than aluminum. By utilizing magnesium alloys, we drastically reduce the overall weight of the RRU equipment, making cell tower installations safer, faster, and significantly more cost-effective.

Superior EMI / RFI Shielding: Radio Frequency Interference (RFI) can destroy 5G signal clarity. Magnesium naturally provides exceptional electromagnetic shielding properties, ensuring high isolation and minimal insertion loss within the filter's resonant cavities.

Extreme CNC Milling Precision: The frequency response of a cavity filter is directly tied to its physical dimensions. We maintain ultra-tight tolerances (down to ±0.01mm) on cavity depth, wall thickness, and hole positioning to guarantee accurate frequency tuning and perfect O-ring sealing for IP67 waterproof ratings.

Excellent Thermal Dissipation: 5G equipment generates immense heat. Our magnesium filter housings act as highly efficient heat sinks, quickly pulling heat away from sensitive internal electronics to maintain stable operational temperatures and extend device lifespan.

Applications

Our precision-machined magnesium components are trusted by leading telecommunications equipment manufacturers for:

• 5G Base Station Remote Radio Units (RRU)
• Active Antenna Units (AAU) Enclosures
• Microwave Cavity Filters & Diplexers
• Telecommunication Heat Sinks and Chassis
• Aerospace and Military RF Communication Systems

Comprehensive Engineering & DFM Support

We do not merely execute standard blueprints; we provide full Design for Manufacturability (DFM) analysis. Our engineering team collaborates closely with you to optimize structural geometries, refine critical tolerances, and improve assembly logic. By identifying potential manufacturing bottlenecks early in the design phase, we help reduce production costs and shorten lead times without compromising product performance.

Advanced CNC Machining Capabilities

Equipped with state-of-the-art multi-axis CNC milling centers and Swiss-type turning lathes, our facility excels at producing highly complex geometries and tight-tolerance components. From rapid prototyping to high-volume mass production, we ensure absolute dimensional consistency, perfect concentricity, and superior surface finishes across every single batch.

Functional & Cosmetic Surface Treatments

To meet both performance and aesthetic requirements, we offer a comprehensive suite of surface finishing solutions. Whether your project requires functional treatments—such as passivation, chemical conversion coating (essential for magnesium corrosion resistance), and electroplating—or high-end cosmetic finishes, we deliver ready-to-assemble components.

Rigorous Quality Control & Industry Compliance

Quality assurance is deeply embedded in every step of our manufacturing workflow. We utilize advanced inspection equipment, including Coordinate Measuring Machines (CMM) and optical comparators, to strictly verify all critical dimensions and GD&T specifications. Furthermore, we provide full material certifications and ensure our manufacturing processes comply with stringent global industry standards, including RoHS and REACH directives.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
