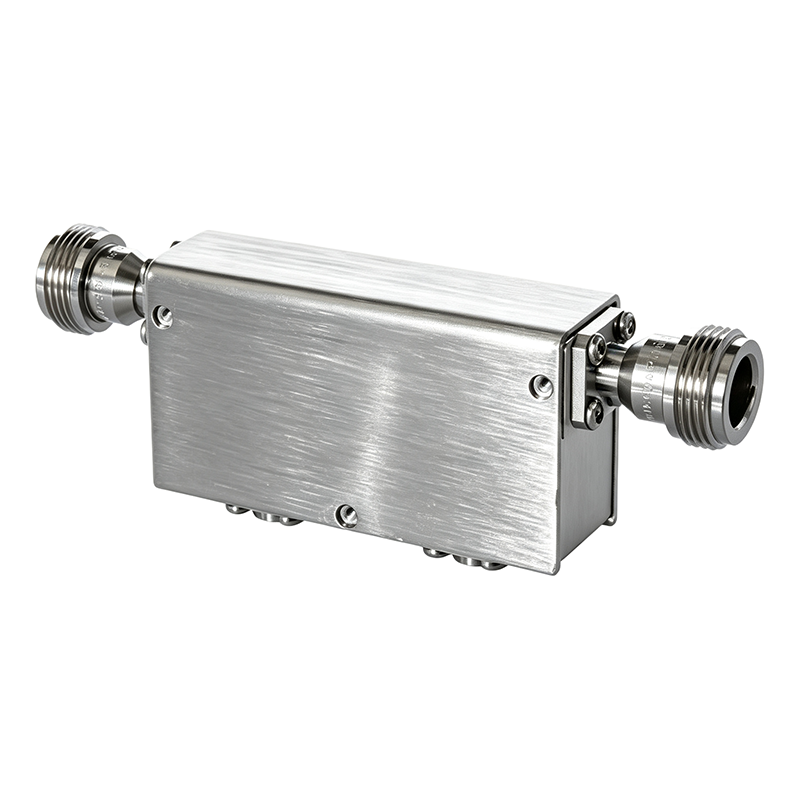

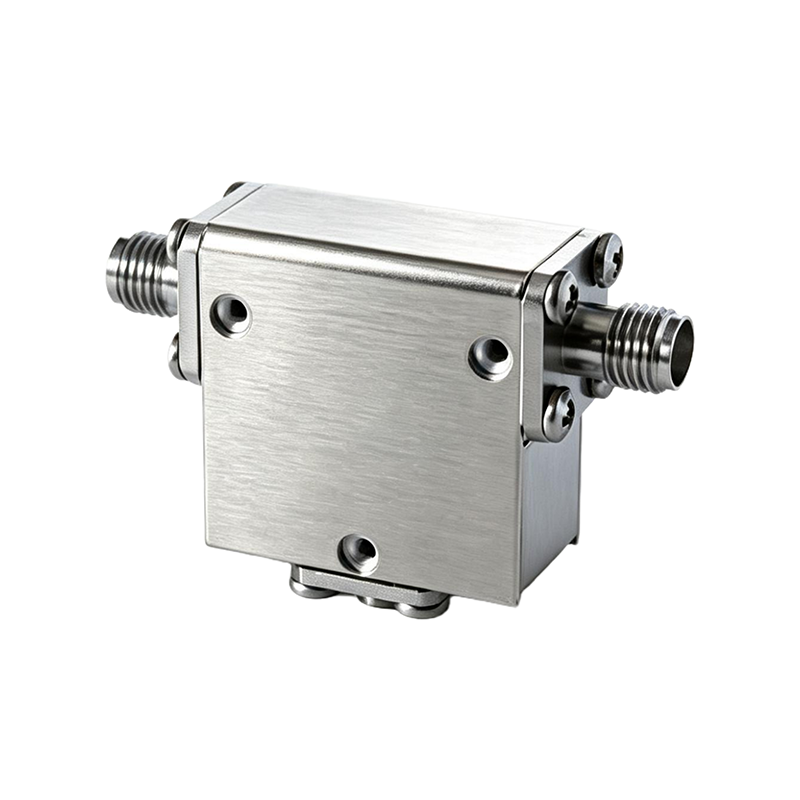

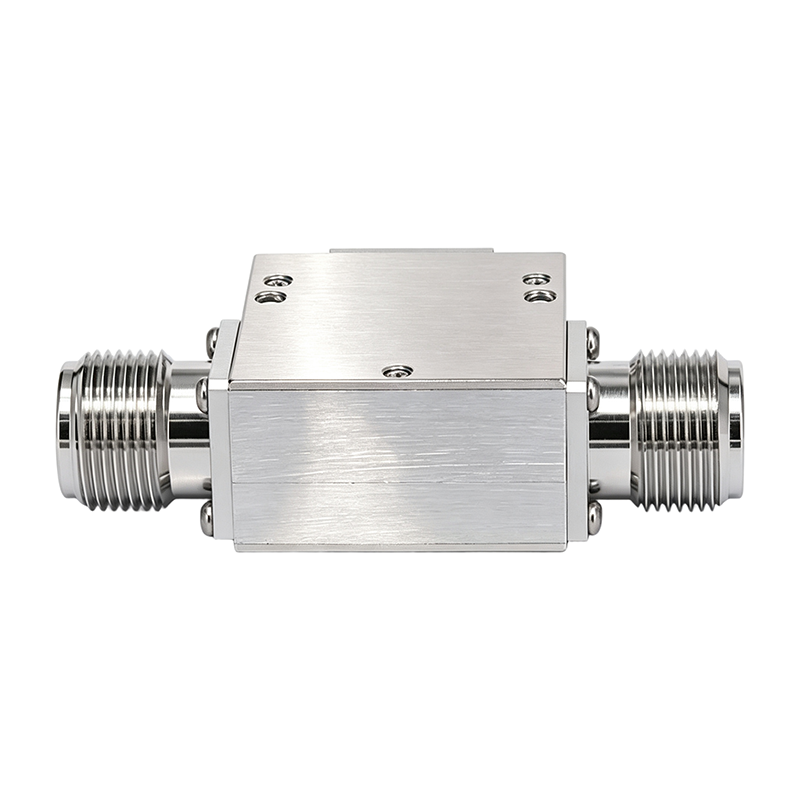

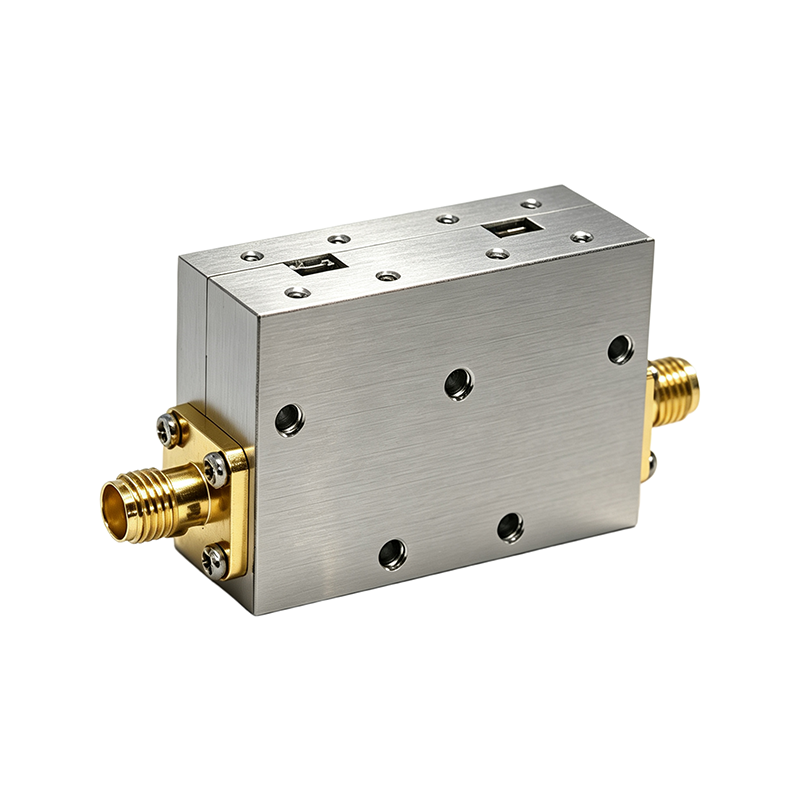

Precision Machined RF Isolator Housings

Precision Machined RF Isolator Housings
RF isolators are widely used in telecom and RF communication systems to protect sensitive components by controlling signal transmission direction and reducing the impact of reflected signals. The housing surrounding the isolator provides mechanical protection, maintains accurate component positioning, and creates reliable interfaces for integration into RF equipment.

FlexiTurn manufactures precision machined RF isolator housings based on customer drawings, CAD files, or samples, supporting non-standard housing designs for RF component manufacturers and communication equipment suppliers. We manufacture mechanical housings according to specific assembly requirements, including customized dimensions, interfaces, mounting structures, and material specifications.

Housing Design Focused on RF Component Integration
RF isolator housings are usually developed around the internal component structure and final equipment installation requirements. Unlike general mechanical covers, these housings require careful control of mounting surfaces, connector positions, and internal spaces to ensure proper assembly with other RF components.

FlexiTurn supports customized designs involving housing dimensions, port openings, mounting holes, fastening structures, cover interfaces, and wall thickness optimization. For customers developing new RF assemblies or modifying existing designs, our engineering team reviews drawings and samples to improve manufacturability while maintaining the required mechanical interfaces.

Materials Selected for RF Mechanical Requirements
The material choice for RF isolator housings depends on the application requirements, including weight, mechanical strength, thermal performance, and environmental conditions.

Aluminum alloys such as 6061 are commonly used because they provide good machinability, lightweight characteristics, and suitable thermal performance for telecom equipment. Copper alloys may be selected when higher thermal conductivity is required, while stainless steel can be considered for applications requiring enhanced mechanical durability or environmental resistance.

FlexiTurn provides flexible material options and machining support according to customer specifications and application requirements.

CNC Machining for Complex RF Housing Structures
Manufacturing RF isolator housings requires accurate machining of mounting interfaces, connector features, and assembly surfaces. FlexiTurn uses CNC milling, drilling, threading, and multi-axis machining processes to produce complex RF mechanical components with consistent dimensions.

Surface treatments such as anodizing, conductive coatings, and other protective finishes can also be applied depending on the material and application needs, helping improve corrosion resistance, surface protection, and long-term reliability.

Custom Manufacturing from Prototype to Production
FlexiTurn supports RF isolator housing projects from prototype validation to repeat production. Customers can provide 2D drawings, 3D CAD models, or existing samples, and our team assists with machining process review and production optimization.

By combining CNC machining capabilities with flexible customization, FlexiTurn delivers precision mechanical housings for RF isolators used in telecom infrastructure, wireless communication equipment, and other RF systems.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
