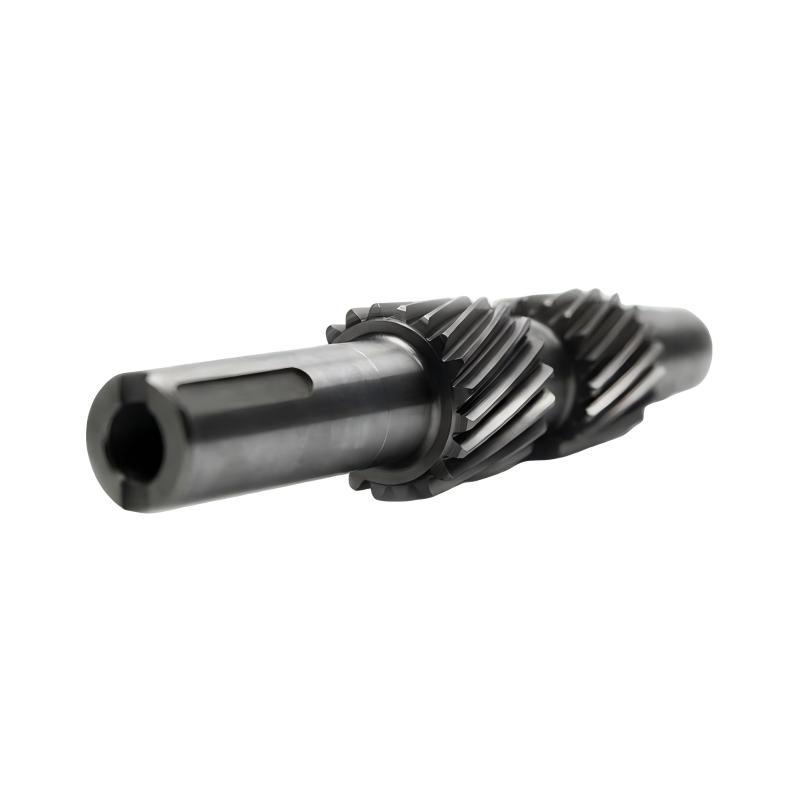

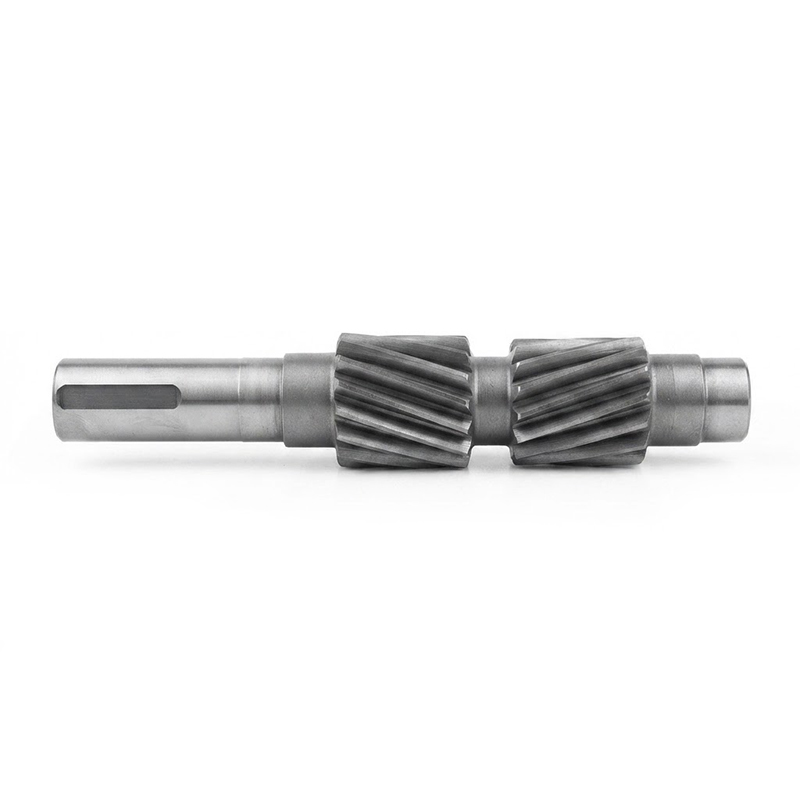

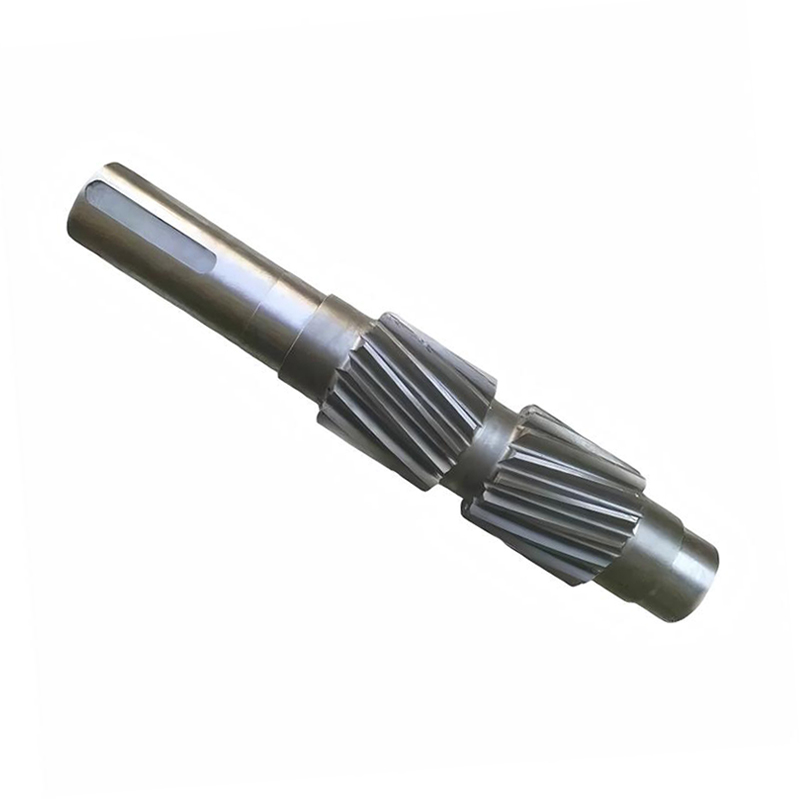

Mud Pump Power End Pinion Shaft Supplier

In the heavy-duty world of oil and gas exploration, the mud pump acts as the heart of the drilling rig, circulating vital drilling fluids under extremely high pressure. The Power End Pinion Shaft is the critical mechanical link that transfers raw motor power to the pump's crankshaft. Subjected to continuous high-torque loads, severe vibrations, and rapid, continuous cycles, a pinion shaft must be structurally flawless.

At FlexiTurn, we specialize in the manufacturing and precise CNC machining of heavy-duty mud pump power end components. By combining high-grade forged alloy steels with precision gear cutting and advanced heat treatment technologies, we supply OEM-quality pinion shafts that ensure seamless power transmission, reduce mechanical vibration, and drastically minimize rig downtime.

Key Advantages of Our Mud Pump Pinion Shafts

Premium Forged Alloy Steel: To combat metal fatigue and withstand massive rotational torque, we start with high-density forged alloy steels (such as AISI 4140, 4340, or heavy-duty carburizing steels). The forging process aligns the internal grain structure of the metal, maximizing the shaft's tensile strength and impact resistance.

Precision CNC Gear Machining: Smooth gear meshing is vital for reducing noise and preventing premature wear on the bull gear. We utilize advanced CNC gear hobbing and grinding equipment to achieve exact tooth profiles (involute splines/herringbone gears), ensuring perfect engagement and optimal load distribution.

Advanced Heat Treatment: Pinion shafts require a hard, wear-resistant surface combined with a tough, ductile core to absorb shock loads. We employ strictly controlled induction hardening or carburizing and quenching processes, achieving exceptional surface hardness while maintaining the core's structural integrity.

Universal Compatibility: Our gear shafts are reverse-engineered and precision-machined to be fully interchangeable with major industry-standard Triplex mud pumps, seamlessly integrating into F-Series models (F-500, F-800, F-1000, F-1300, F-1600, F-2200HL) and other leading brands.

Applications

Our heavy-duty pinion shafts and power end components are designed for rigorous energy sector applications:

• Oil & Gas Drilling Rig Triplex Mud Pumps
• High-Pressure Fracturing (Frac) Pumps
• Well Servicing & Cementing Pumps
• Heavy-Duty Industrial Reciprocating Pumps

Comprehensive Engineering & DFM Support

We do not merely execute standard blueprints; we provide full Design for Manufacturability (DFM) analysis. Our engineering team collaborates closely with you to optimize structural geometries, refine critical tolerances, and improve assembly logic. By identifying potential manufacturing bottlenecks early in the design phase, we help reduce production costs and shorten lead times without compromising product performance.

Expert Material Selection Consulting

Selecting the correct material is the foundation of product success. We offer expert consulting across a vast portfolio of industrial-grade materials, including Aluminum, Stainless Steel, Brass, Copper, Titanium, and advanced Engineering Plastics. We carefully match the material's mechanical strength, thermal properties, and environmental resilience directly to your specific application and working environment.

Advanced CNC Machining Capabilities

Equipped with state-of-the-art multi-axis CNC milling centers and Swiss-type turning lathes, our facility excels at producing highly complex geometries and tight-tolerance components. From rapid prototyping to high-volume mass production, we ensure absolute dimensional consistency, perfect concentricity, and superior surface finishes across every single batch.

Functional & Cosmetic Surface Treatments

To meet both performance and aesthetic requirements, we offer a comprehensive suite of surface finishing solutions. Whether your project requires functional treatments—such as hard anodizing, passivation, and electroplating for enhanced corrosion resistance—or high-end cosmetic finishes, we deliver ready-to-assemble components.

Rigorous Quality Control & Industry Compliance

Quality assurance is deeply embedded in every step of our manufacturing workflow. We utilize advanced inspection equipment, including Coordinate Measuring Machines (CMM), gear testing centers, and ultrasonic flaw detectors, to strictly verify all critical dimensions, gear profiles, and internal material integrity. Furthermore, we provide full material certifications and ensure our manufacturing processes comply with stringent global industry standards.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
