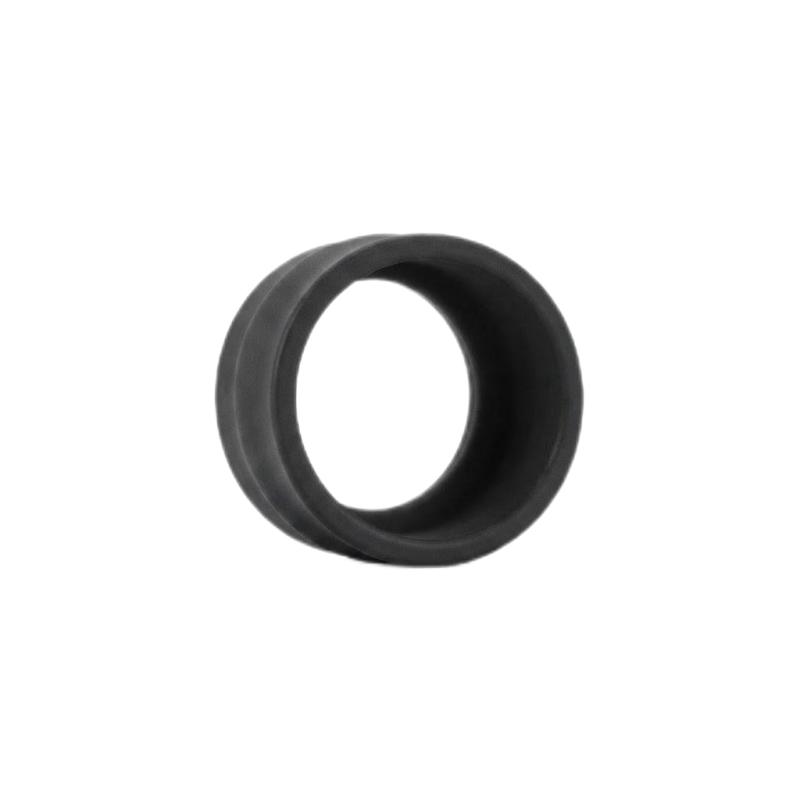

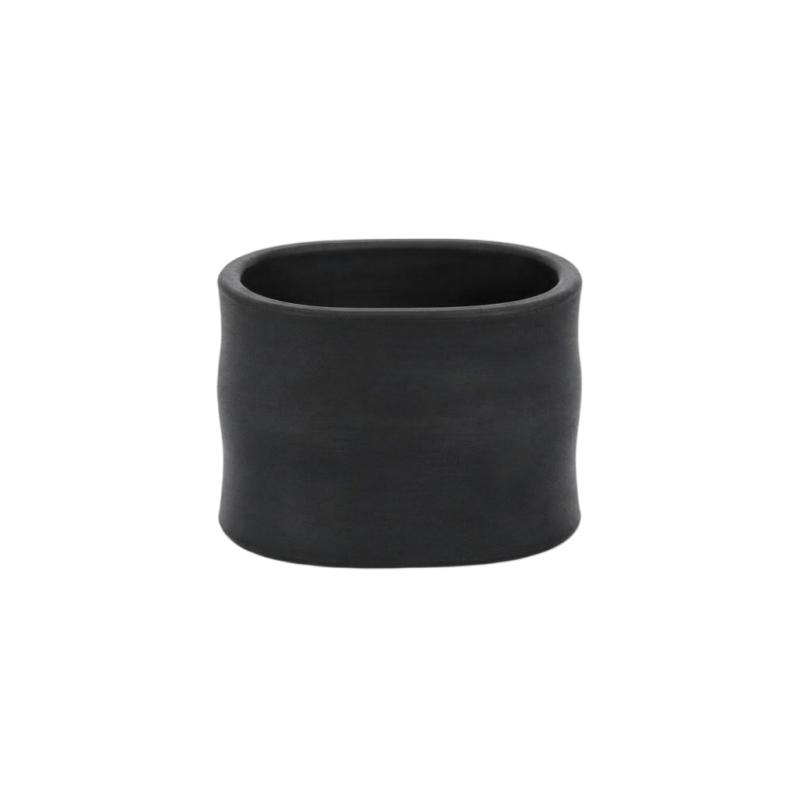

Custom Rubber Bushing Components

FlexiTurn manufactures custom precision CNC-machined grooved rubber bushings, delivering flash-free sealing grooves, strict bore-to-OD concentricity ($\le 0.015\text{ mm}$), and repeatable interface dimensions for press-fit resilient mounts and dynamic seals. Precision CNC turning and trimming resolve material elasticity, preventing cutting deflection, edge tearing, and clamping distortion across high-wear elastomeric components.

Precision Machining & Processing Capabilities

• Single-Setup Rotational Turning: Internal bores, outer diameters, circumferential lubrication/seal grooves, and end-face chamfers are turned in a single setup using custom vacuum or low-force collet chucking, eliminating re-clamping runout and preventing part distortion.
• Cryogenic Machining Options: For ultra-soft compounds (Shore A < 50) or intricate groove geometries, temporary cryogenic freeze-stabilization allows high-speed razor/diamond milling without edge tearing or thermal degradation.
• Edge & Groove Quality Control: Micro-shear rotary tooling and calibrated cutting feeds produce clean, burr-free groove edges and uniform wall thicknesses, eliminating downstream sealing failure risks.
• Secondary Feature Execution: Precision 3-axis CNC milling, side slotting, and hole punching performed on dedicated soft-material workcells for secondary-machined molded blanks.

Materials & Technical Specifications

Supported Polymers & Elastomers: PA66-GF30, PBT, ABS, POM, Nitrile (NBR), EPDM, Industrial Silicone, FKM, TPE

Dimensional Tolerances: ±0.02mm on machined polymer interfaces; ±0.05mm on elastomeric features

Geometric Tolerances: Datum Flatness ≤0.02 mm; True Position ≤0.05mm ; Perpendicularity  ≤0.03mm

Surface Finish: Ra 0.8-1.6 μm on machined datum faces

Quality Assurance & Material Traceability

Every elastomeric order processed under FlexiTurn’s ISO 9001:2015-aligned quality system undergoes rigorous soft-material verification:

• 100% Material Traceability: Compound Batch Certificates, Durometer Logs, and Material Test Reports (MTR) provided with every production lot.
• Non-Contact Optical Inspection: Non-contact optical CMM verification guarantees accurate dimensional profiling without compressing flexible part features during measurement.
• Optical Edge Inspection: 100% microscopic inspection of circumferential grooves and sealing lips to verify zero flash, tearing, or micro-cracks.

Why Choose FlexiTurn

• Specialized Elastomer Machining Know-How: Dedicated workcells, ultra-sharp shear tooling, and deformation-free workholding effectively defeat material elasticity, edge tearing, and tool deflection.
• Deformation-Free Clamping: Custom vacuum fixtures and low-pressure soft collets maintain strict concentricity without distorting thin-wall cylindrical bushings.
• 100% In-House Production: Raw compound verification, secondary turning, groove profiling, flash removal, and optical CMM inspection are managed entirely on-site with zero subcontracting.
• Complimentary 24-Hour DFM Review: Technical evaluations analyze groove corner radii, draft angles, and wall stability to eliminate production bottlenecks and lower unit costs.
• Strict Intellectual Property Protection: All CAD models, customer specifications, and compound formulations are secured under encrypted internal protocols, with NDAs executed prior to data transfer.

Partner with FlexiTurn

Submit your 2D/3D CAD drawings (STEP/IGES/PDF) with material durometer (Shore A), sealing requirements, and batch quantities. FlexiTurn provides rapid DFM evaluations and direct-factory quotations within 24 hours.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
