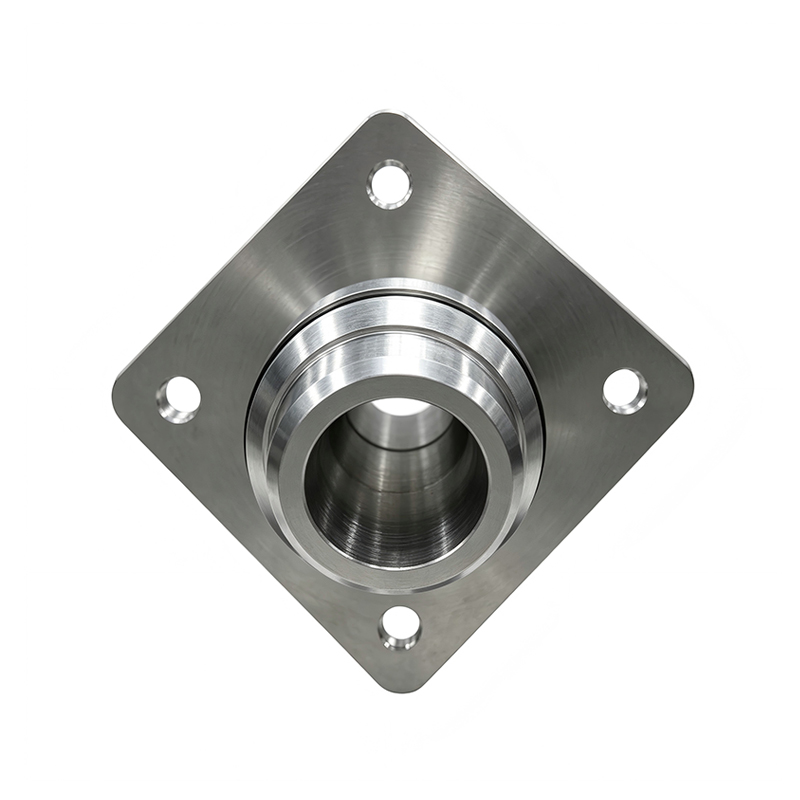

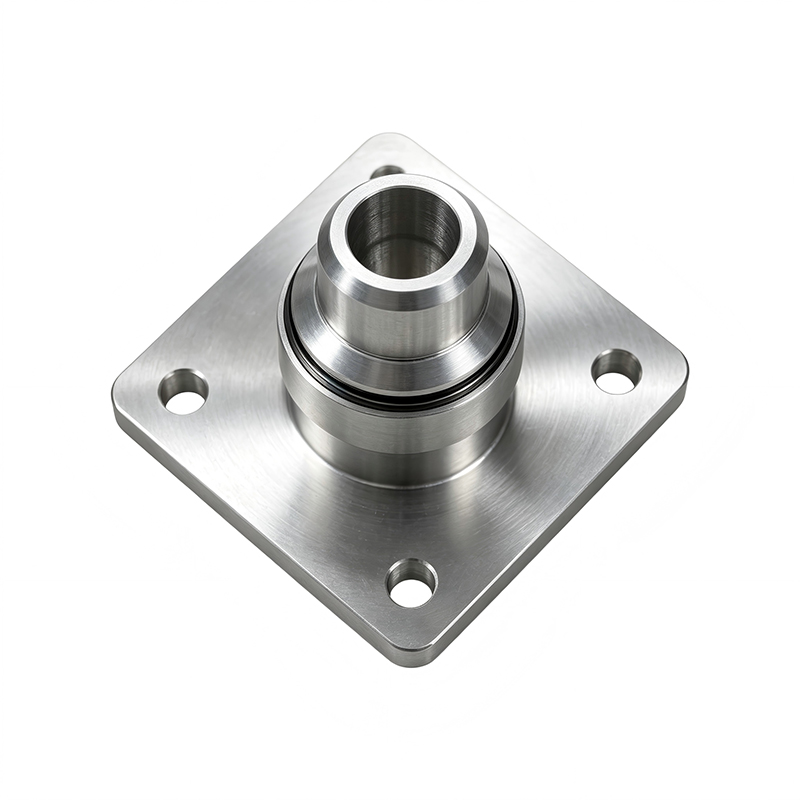

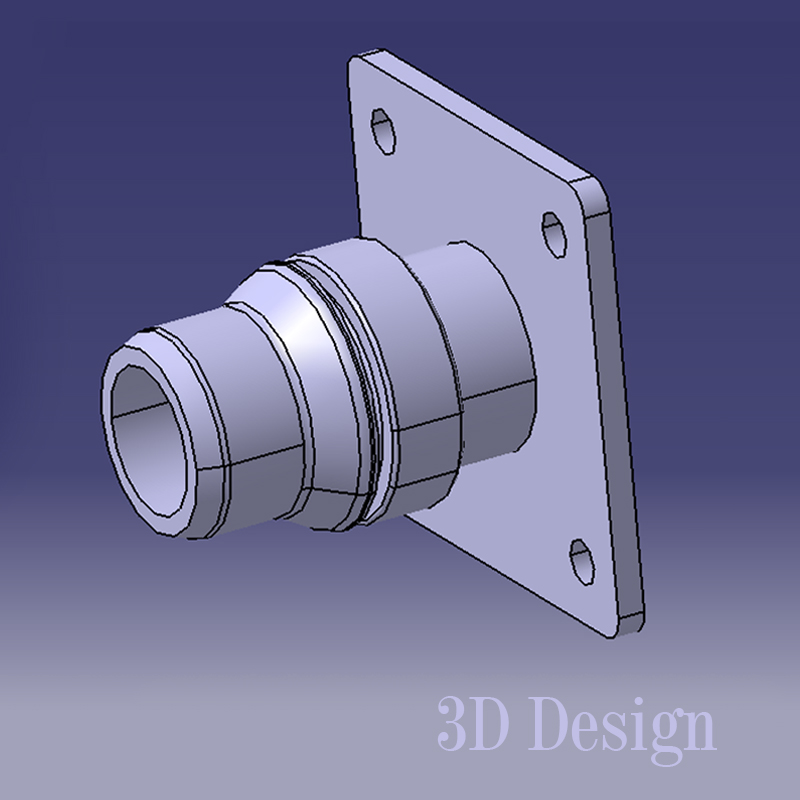

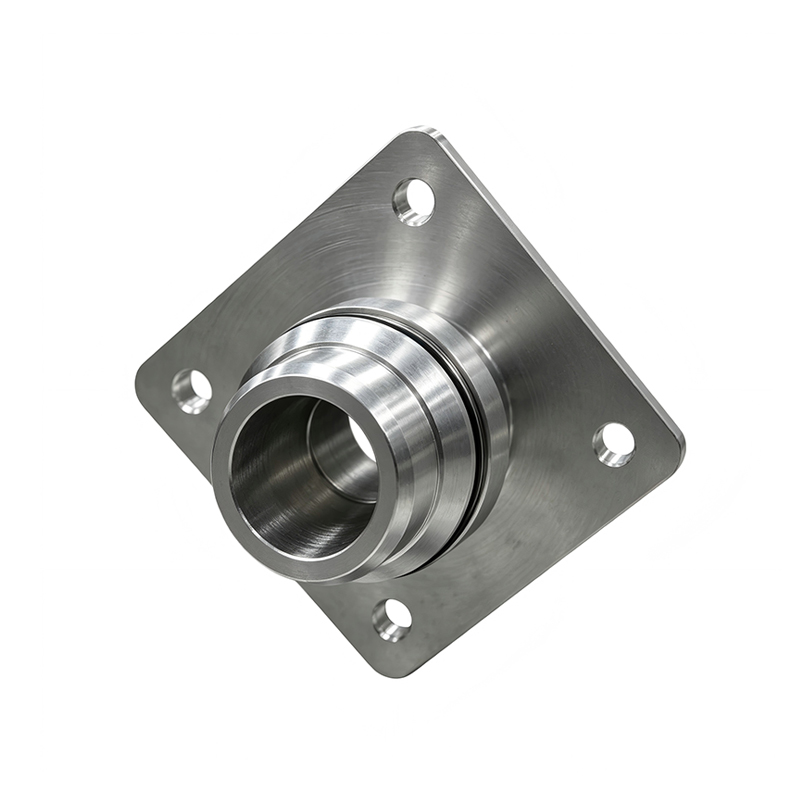

Custom CNC Machined Liquid Cooling Manifold Connector
Product Overview:
Maximize thermal management efficiency with our advanced liquid cooling connector series. Engineered for ultra-low leakage, high flow efficiency, and flexible modular maintenance to extend component lifespan across next-generation AI clusters, EV charging infrastructures, and battery energy storage systems.
Workmanship: CNC Milling, CNC Turning, CNC Drilling, Metal Polishing, 3 Axis CNC Machining
Material: Aluminum
Inquiry Email: sales@flexiturn.com
Custom CNC Machined Liquid Cooling Manifold Connector Details
Maximize thermal management efficiency in high-demand environments with our premium, flanged Liquid Cold Plate Connector, engineered explicitly for blind-mate quick disconnection to deliver consistent, ultra-low-leakage performance across next-generation AI computing clusters, EV charging infrastructures, and modular battery energy storage systems (BESS).
Key Features & Advantages
Optimized Flow & Thermal Performance: Designed with advanced fluid dynamics to minimize flow resistance and turbulence. By ensuring efficient coolant circulation, it significantly improves heat absorption and dissipation, maintaining optimal operating temperatures and extending component lifespan.
Ultra-Low Leakage Reliability: Equipped with high-precision O-ring seals and engineered to stringent tolerances, guaranteeing maximum fluid retention and zero-drip security during operation and connection phases.
Seamless Blind-Mate Design: Features a precision-chamfered entry guide that allows for smooth, tool-free automatic alignment and insertion—essential for rack-mounted servers and modular industrial enclosures.
Robust Flanged Construction: The heavy-duty integrated square flange with pre-drilled mounting holes distributes mechanical stress evenly, ensuring a secure, vibration-resistant connection directly to the cold plate
Technical Specifications
| Parameter | Specifications |
| Component Type | Male Plug / Quick Disconnect Connector |
| Mounting Style | Integrated 4-Bolt Square Flange |
| Mating Method | Blind-Mate / Push-to-Connect |
| Sealing Technology | High-Performance Radial O-Ring |
| Material | Premium Aluminum / Stainless Steel (Customizable Options) |
| Application Media | Water,Glycol-Water Solutions,Dielectric Fluids |
| Temperature Range | -40°C to +125°C |
| Craftsmanship | CNC Machining |
| Size | Custommized |
| Specification | Custommized |
| Equipment | CNC Machining 3 4 5 Axis |
Q1. What types of machining services do you offer?
We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.
Q2. What materials can you work with?
We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.
Q3. What is your typical lead time?
Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.
Q4. How do you price your services?
Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.
Q5. What quality control measures do you have in place?
We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
