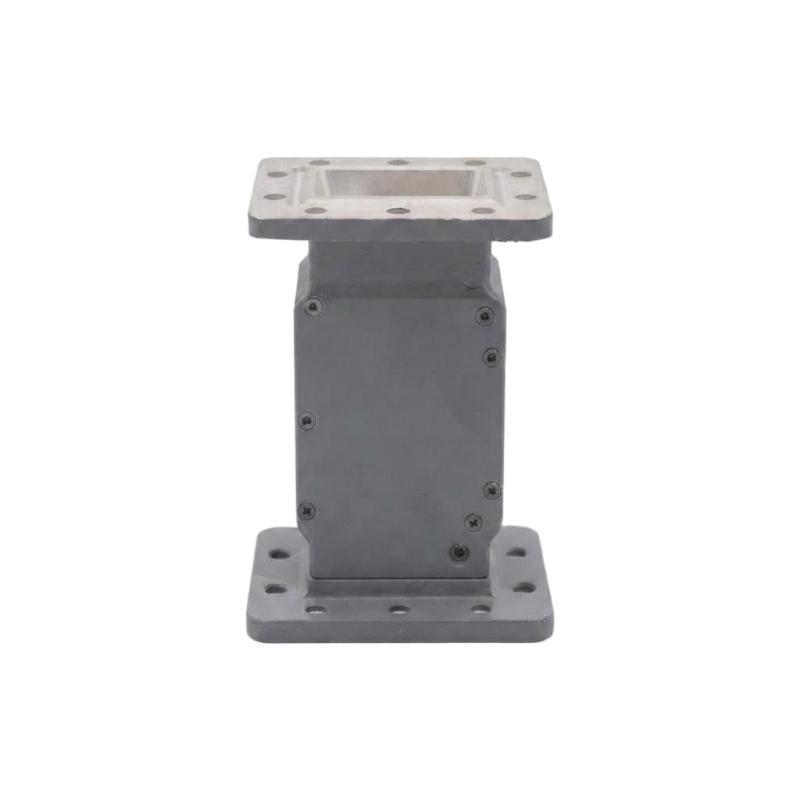

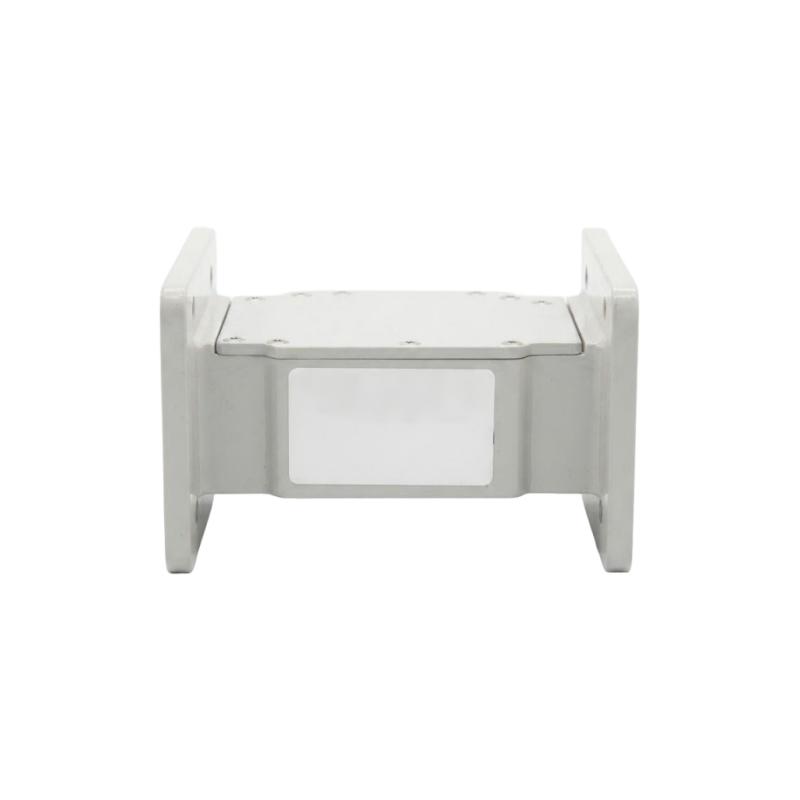

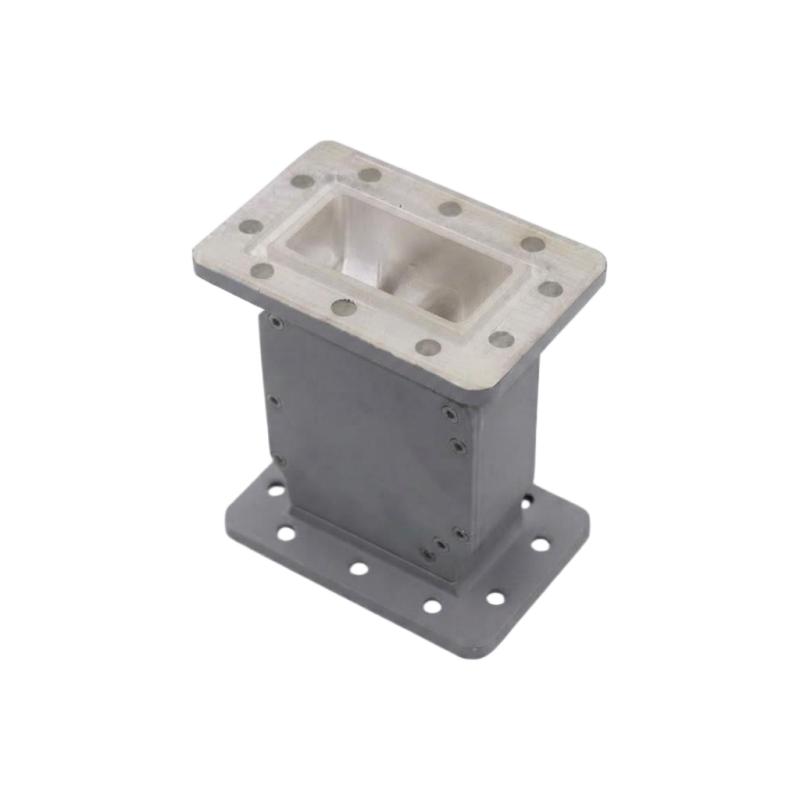

Precision CNC Machined RF Waveguides

Custom RF Waveguide Components
RF waveguides are precision components used to transmit and control high-frequency electromagnetic signals in microwave and RF systems. Their internal dimensions, geometry, and surface condition can directly affect signal transmission performance, making machining accuracy and consistency particularly important.

FlexiTurn manufactures custom CNC machined RF waveguides based on customer drawings, CAD models, or samples. We can produce waveguide bodies, flanges, ports, mounting features, and other customized structures for telecom and RF equipment.

CNC Machining RF Waveguides
Waveguides can include internal channels, stepped sections, flanges, threaded holes, and other features that require accurate positioning and careful machining. Complex designs may also benefit from multi-axis machining to reduce setups and maintain consistency between different surfaces.

FlexiTurn uses CNC milling and multi-axis machining according to the geometry of each waveguide. CNC turning can also be applied to cylindrical or rotational RF components when required.

For RF waveguide production, the machining approach is selected according to the part geometry, material, tolerance requirements, and production volume rather than applying the same process to every design.

Materials for RF Waveguides
Aluminum alloys are commonly selected for waveguide bodies because they combine low weight, good machinability, and suitable conductivity. Copper and brass can also be used where higher electrical conductivity or specific RF characteristics are required.

FlexiTurn can provide CNC-ready blanks in aluminum, copper, brass, and other metals according to the requirements of the component. Material selection can be matched to the waveguide's operating environment, weight requirements, and electrical performance.

Custom Manufacturing from Prototype to Production
Every RF waveguide can have different internal geometry, interfaces, and mounting requirements. FlexiTurn manufactures according to your specific design rather than supplying standard catalog waveguides.

We support prototype development, small-batch production, and volume manufacturing, with dimensional inspection to help ensure consistency across manufactured components.

FlexiTurn Advantages
Custom RF waveguides based on drawings, CAD files, or samples.

CNC milling and multi-axis machining for complex geometries.

Flexible material options for different RF applications.

Prototype, small-batch, and production manufacturing.

Dimensional inspection for critical features and interfaces.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
