Custom CNC Milled Bronze Mounting Brackets

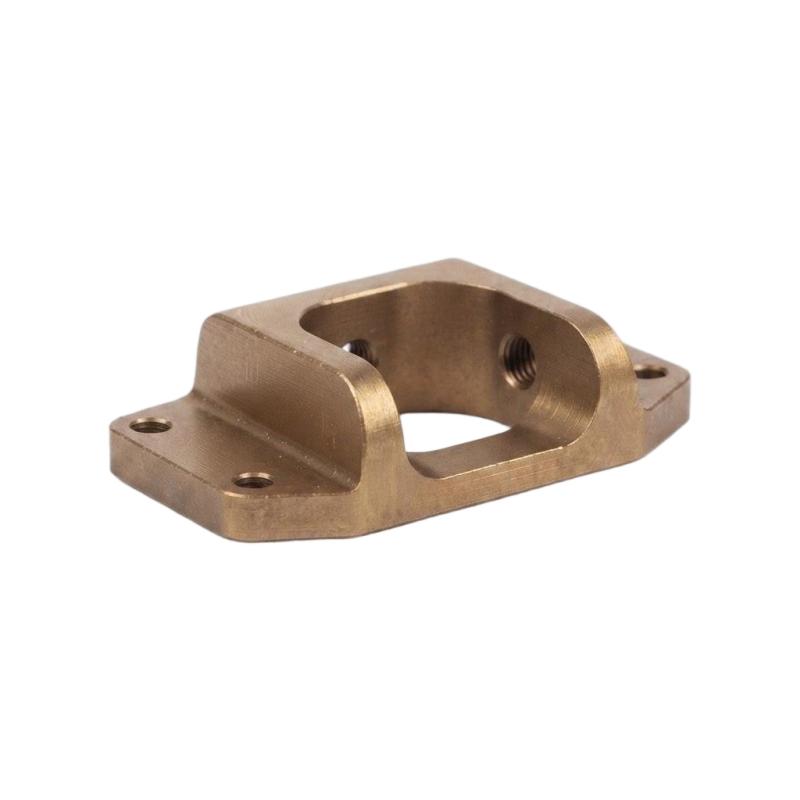

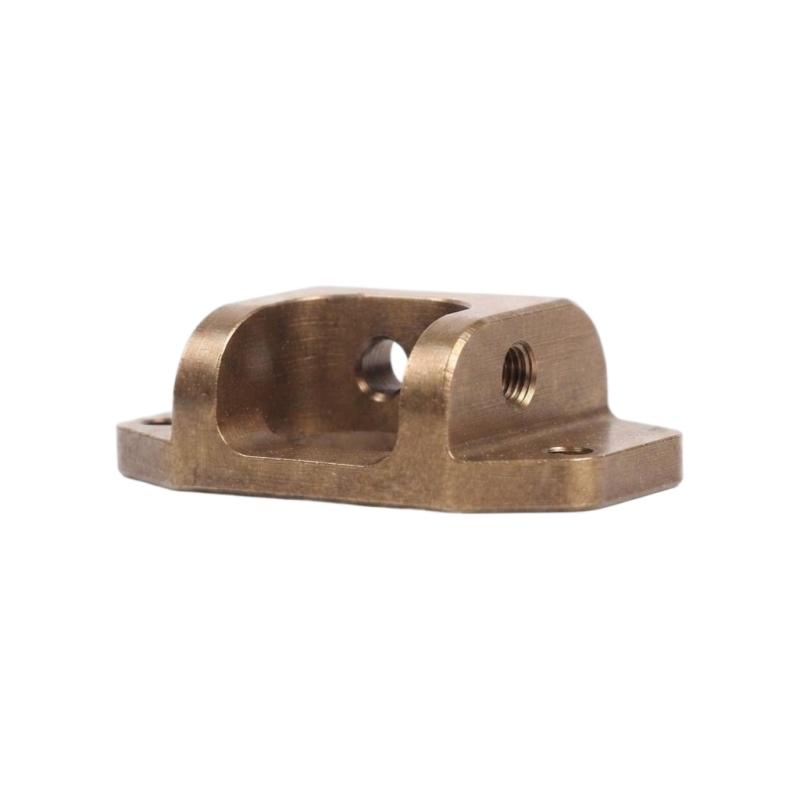

This U-shaped bronze mounting bracket demonstrates FlexiTurn’s precision CNC milling capabilities for prismatic copper alloy components. Key engineering challenges—including pocket parallelism, tight-tolerance side-hole tapping, flange flatness, and cross-feature alignment—are resolved through optimized 3-axis and 4-axis machining strategies. FlexiTurn supplies custom, burr-free structural components engineered for direct assembly integration.

Precision Milling & Processing Capabilities

• Multi-Axis Process Routing: 3-axis and 4-axis CNC milling platforms execute flange face milling, deep U-pocket profiling, perimeter trimming, and corner chamfering in minimized setups, preventing cumulative positional error.
• Precision Drilling & Tapping: Side-tapped holes and mounting through-holes are drilled and threaded with strict true-position control, ensuring thread engagement and bolt-pattern alignment during final assembly.
• Burr & Surface Management: Calibrated cutting feeds and speeds leverage bronze’s machinability to deliver crisp feature definition and uniform surface finishes directly from the machine, eliminating manual deburring defects.
• Optional Precision Grinding: Available for critical mating or sealing interfaces requiring enhanced flange flatness (≤ 0.005 mm) and refined surface finishes.

Materials & Technical Specifications

Supported Materials: Bearing Bronze (C93200 / SAE 660), Aluminum Bronze (C95400), Brass (C36000), Stainless Steel, Aluminum Alloys, Engineering Plastics

Dimensional Tolerances: ±0.01 mm for critical pocket features & hole centers; ±0.02 mm for general dimensions

Thread Standards: Metric / UNC / UNF / BSPT (100% thread plug gauge verified)

Geometric Limits: Parallelism ≤ 0.01 mm; Perpendicularity ≤ 0.015 mm

Surface Finish: Ra 1.6–3.2 μm (Standard Milled); Ra < 0.8 μm (Precision Ground)

Quality Control & Material Traceability

Every order produced under FlexiTurn’s ISO 9001:2015-aligned quality system includes full technical verification:

• 100% Material Traceability: Certified Mill Test Reports (EN 10204 3.1) provided for every material lot.
• In-Process Inspection: Dimensional monitoring at critical milling and tapping operations.
• Final Verification: Full 3D CMM inspection reports and thread gauge verification supplied with finished parts.

Why Choose FlexiTurn

• Specialized Copper Alloy Expertise: Optimized cutting parameters, tool geometries, and chip-evacuation protocols deliver superior surface finishes and consistent dimensional accuracy across prismatic bronze parts.
• Multi-Axis Setup Control: Strategic process routing maintains perpendicularity between flange faces and side-tapped holes while reducing total setup requirements.
• In-House Process Control: Raw material verification, multi-axis milling, secondary finishing, and inspection are executed entirely in-house with zero subcontracting.
• Free 24-Hour DFM Review: Engineering reviews analyze pocket corner radii, thread relief clearances, and wall transitions to optimize machinability and reduce unit costs.
• Strict Intellectual Property Protection: All CAD data and project documentation are secured under strict information security protocols, with non-disclosure agreements (NDAs) executed upon request.

Partner with FlexiTurn

Submit your 2D/3D CAD drawings (STEP/IGES/PDF) with material specifications, tolerance requirements, and order volumes. FlexiTurn provides rapid DFM evaluations and transparent direct-factory quotations within 24 hours.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
