Custom CNC Machined Titanium Alloy Gears

Product Overview

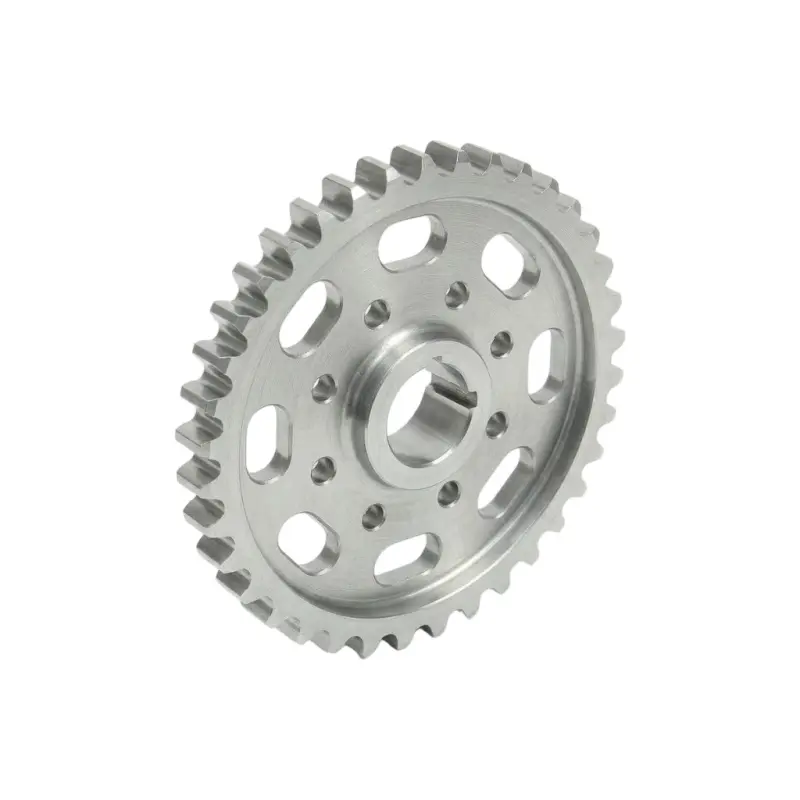

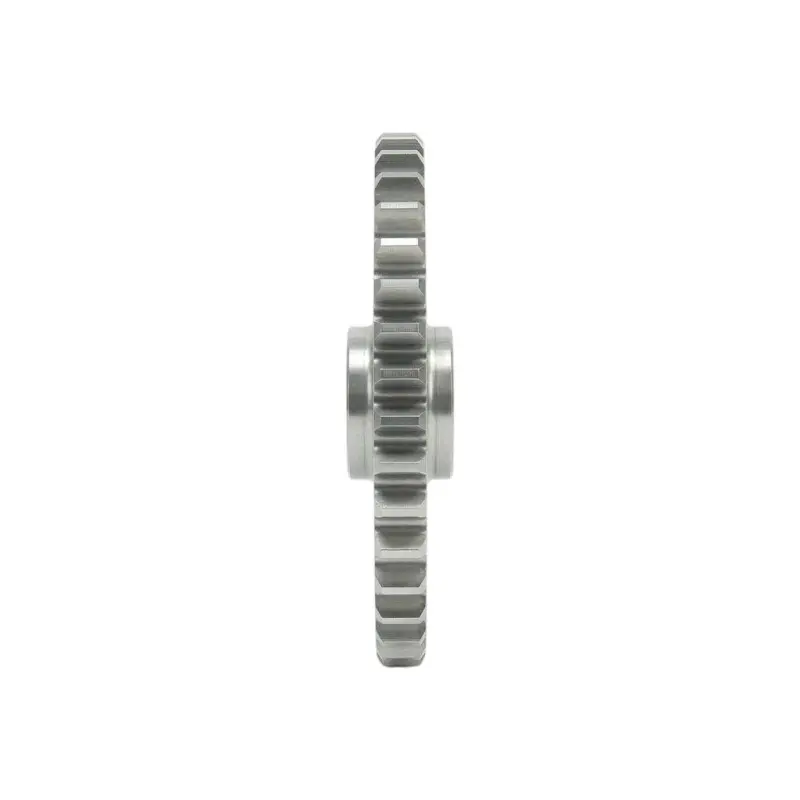

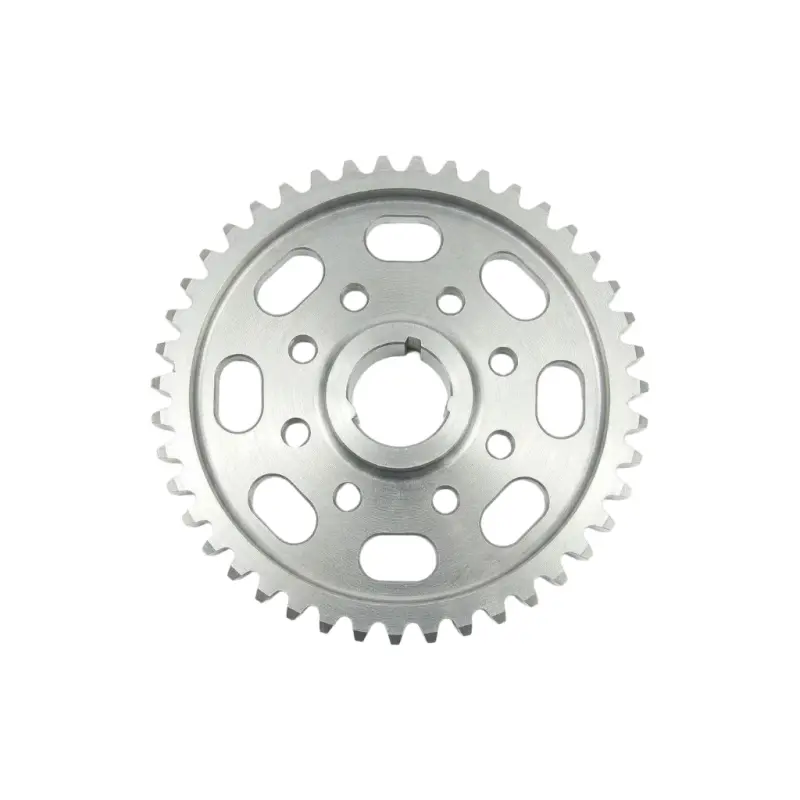

The titanium alloy spur gear shown is a representative example of FlexiTurn’s custom CNC machining capabilities for transmission components. This part features a machined outer tooth profile, a central bore with keyway, a raised hub, lightening holes, and circumferential bolt holes. All geometric features, tooth form, and dimensions are produced according to customer 2D or 3D CAD files.

FlexiTurn’s core offering is the CNC machining process: converting your design data into a functional titanium transmission component with controlled tooth profile accuracy, bore concentricity, keyway fit, and consistent surface finish. FlexiTurn supports orders from one-off prototypes and low-volume batches through to high-volume production.

Machining Capabilities Demonstrated

Machining this titanium gear requires multiple operations, reflecting FlexiTurn’s process control and experience with difficult-to-machine materials:

• CNC turning for the central bore, raised hub profile, and face squaring
• 4-axis CNC milling for the outer tooth profile, keyway, and bolt holes
• CNC drilling for lightening holes and mounting holes with consistent positioning
• Deburring and edge finishing to remove sharp edges and burrs
• Optional secondary operations: titanium anodizing, laser engraving, and surface polishing

Tooth profile milling is suitable for prototypes and medium-precision gears. For high-precision or high-volume tooth forms, FlexiTurn confirms whether rolling, gear shaping, or grinding is required and whether it is performed in-house or through qualified partners before quoting.

Available Materials

FlexiTurn regularly machines titanium alloys for high-strength, corrosion-resistant gear applications, including Grade 2 commercially pure titanium, Grade 5 (Ti-6Al-4V), and Grade 9 titanium. For applications requiring alternative material specifications, FlexiTurn also machines equivalent gears in 304/316L stainless steel, 6061-T6 aluminum, and high-strength alloy steels.

Tolerances and Quality Assurance

FlexiTurn maintains tight dimensional control on critical gear features. For titanium alloy gears, typical tolerances are ±0.02 mm on bore diameter and tooth profile positional accuracy; tighter tolerances can be achieved to meet specific performance requirements. FlexiTurn performs in-process dimensional verification and final inspection on every order. Material test certificates and dimensional inspection reports are available upon request. FlexiTurn’s quality management system is ISO 9001:2015 certified.

Specialized Titanium Machining Expertise

Titanium alloys present unique machining challenges, including high work hardening rates, low thermal conductivity, and rapid tool wear. FlexiTurn applies titanium-specific machining parameters, sharp carbide tooling, and high-pressure coolant delivery to control thermal deformation and maintain consistent tool life. For high-precision tooth profiles requiring secondary rolling, gear shaping, or grinding, FlexiTurn confirms process capability against your specific tooth geometry and tolerance requirements before quotation.

Why Choose FlexiTurn

FlexiTurn is a China-based precision CNC machining service provider focused on custom machined parts, not off-the-shelf component supply. FlexiTurn works with customers worldwide to deliver machined titanium components on time and at competitive cost.

Custom machining based on your CAD drawings

• Production scalability: prototype, low volume, and high volume capabilities
• Multi-axis machining: 3-axis, 4-axis, and 5-axis CNC turning and milling
• DFM (Design for Manufacturability) review before production
• Dedicated project management for every order
• Certified raw materials with documented batch traceability
• Competitive lead times

FlexiTurn serves industries including automation machinery, robotics, industrial process equipment, and non-flight-critical aerospace, non-safety-critical automotive, and non-critical oil and gas applications.

Get Started

If you require custom CNC machined titanium alloy gears or similar transmission components, send your drawings to FlexiTurn. FlexiTurn’s engineering team will review your design, provide DFM feedback, and deliver a detailed quotation for your project.

Contact FlexiTurn today to discuss your precision CNC machining requirements.

FlexiTurn – Precision Machining, Delivered with Trust.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
