Custom CNC Machined Inconel 600 Parts

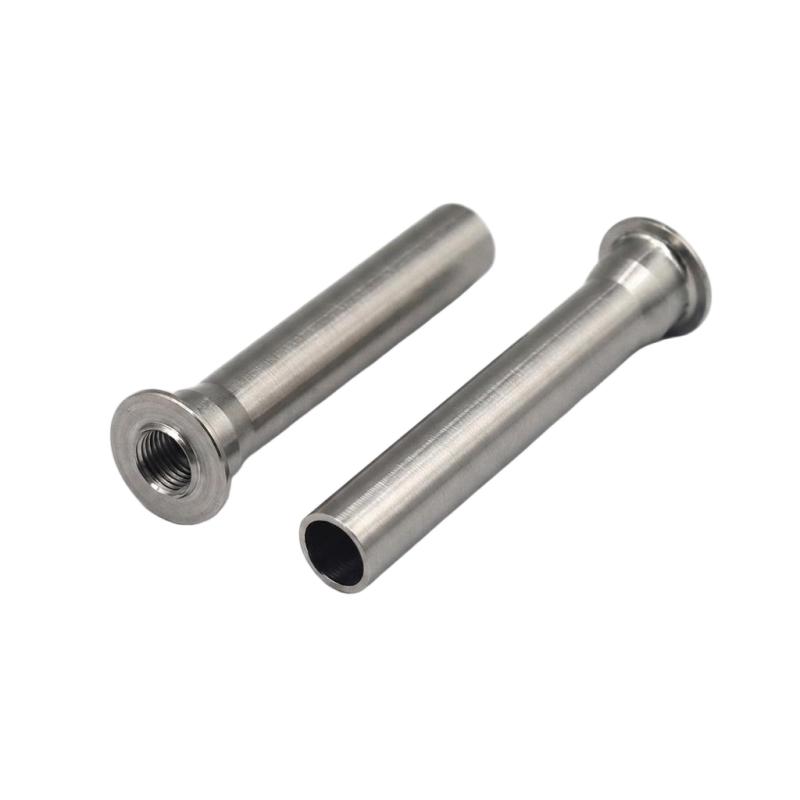

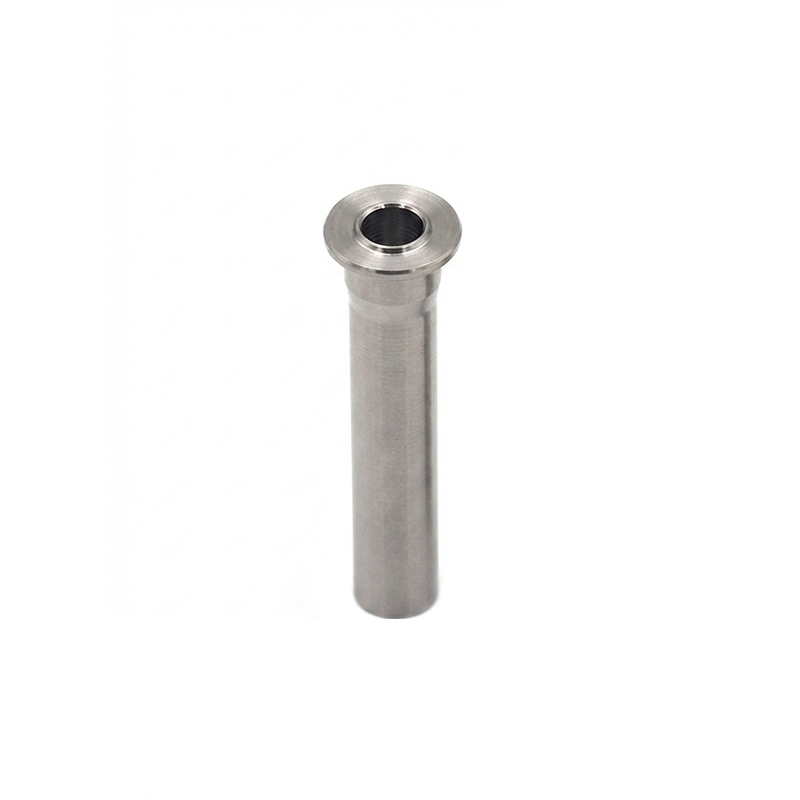

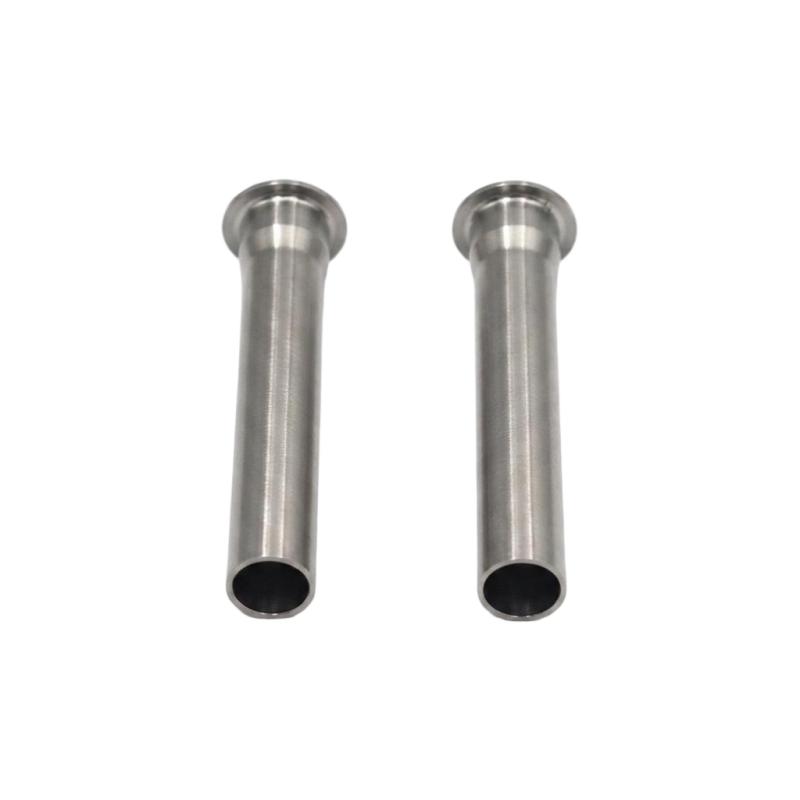

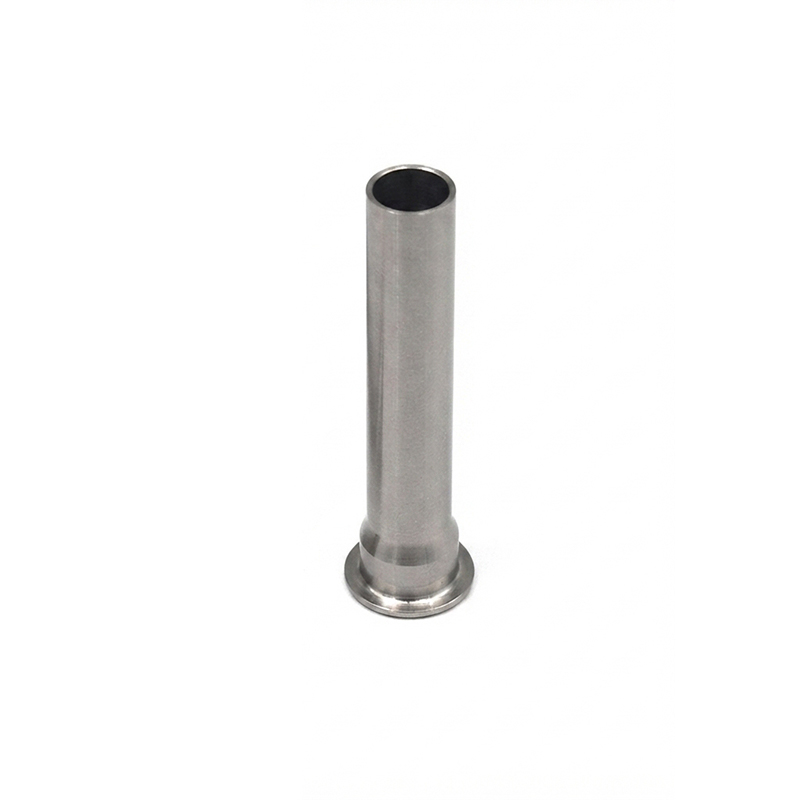

FlexiTurn provides custom precision CNC machining services for Inconel 600 nickel-chromium-iron alloy components, such as flanged internally threaded thin-wall sleeves. We combine alloy-specific turning protocols, low-force fixturing, and controlled process parameters to produce parts with consistent wall thickness, concentricity, and surface finish for demanding high-temperature and corrosive environments.

FlexiTurn executes the full production sequence in-house, with process parameters and fixturing engineered specifically for Inconel 600 thin-wall components to support repeatable accuracy and minimal residual deformation.

• CNC Turning: All rotational features — outer diameter, flange face, internal bore, internal thread, and end chamfers — are completed in a single lathe setup with low-force soft-jaw fixturing. This reduces re-clamping positional error and clamping distortion, supporting consistent concentricity between bore, thread, and flange face. Cutting speeds, feed rates, carbide tooling, and high-pressure coolant are selected for Inconel 600 to minimize work hardening, suppress built-up edge, and control surface tearing.
• Optional CNC Grinding: Internal and external cylindrical grinding is available for high-precision sealing and guiding applications, correcting residual turning distortion and delivering tighter dimensional tolerance and finer surface finish.
• Secondary Operations: Stress-relief heat treatment, pickling and passivation, and precision surface finishing are available upon request to meet specific application requirements.

FlexiTurn works with certified mill-run Inconel 600, providing original mill test reports and batch traceability for every order.

• Standard material: Inconel 600 (UNS N06600); alternative nickel alloy grades available upon request
• General dimensional tolerance: ±0.02 mm for features ≤ 50 mm nominal size
• Thread tolerance: ISO 4H/5H for internal threads
• Geometric tolerances: Concentricity ≤ 0.01 mm for features ≤ 50 mm OD; wall thickness variation ≤ 0.015 mm
• Surface finish: Ra 1.6–3.2 μm for standard turned surfaces; Ra 0.8–1.6 μm for ground surfaces

Why Choose FlexiTurn

Thin-Wall Deformation Control

Inconel 600 thin-wall parts are susceptible to ovality, wall thickness drift, and clamping distortion. FlexiTurn employs low-force soft-jaw fixturing, layered roughing and finishing passes, and optimized cutting engagement to minimize residual stress and deformation. This supports uniform wall thickness and improved roundness.

Repeated re-fixturing is a common cause of concentricity error in thin-wall sleeve components. FlexiTurn completes all internal and external rotational features in one lathe setup, reducing cumulative fixturing error and supporting consistent fit and sealing performance.

FlexiTurn’s machining processes are developed for nickel alloys, with validated cutting data, dedicated tooling, and high-pressure coolant systems. This supports clean, controlled surfaces and consistent dimensional accuracy while helping preserve the alloy’s high-temperature performance.

All operations — from incoming material certification to final inspection — are performed under FlexiTurn’s direct control without subcontracting. Material batch traceability is maintained from mill certificate to finished part.

Every CAD submission receives a Design for Manufacturability assessment focused on Inconel 600 processing constraints and thin-wall design considerations. Our engineering team evaluates wall thickness, flange ratios, tolerance allocations, and thread forms to reduce production risk and improve part quality.

All production adheres to FlexiTurn’s ISO 9001:2015-aligned quality management system. Every shipment includes dimensional inspection records and original mill test reports. Additional inspection and certification packages are available upon request for high-criticality applications.

1. Submit your 2D (PDF/DWG) or 3D (STEP/IGES) CAD files, along with material grade, tolerance requirements, order quantity, and operating environment details.
2. Receive an Inconel 600-specific DFM assessment and factory-direct quotation from FlexiTurn.
3. Prototype parts are manufactured and delivered with inspection reports and material certification for design validation and performance testing.
4. Transition to volume production with locked process parameters and in-process dimensional verification.
5. Global shipping with protective packaging, delivered directly to your facility.

For custom Inconel 600 CNC machined components supported by thin-wall precision turning expertise and structured quality control, contact FlexiTurn. Submit your CAD files to request a project assessment and machining quote.

Q1. What types of machining services do you offer?

We provide comprehensive CNC turning and milling services. FlexiTurn machines are equipped with 8-station programmable turrets and support both turning and 5-axis milling operations, making them suitable for everything from simple cylindrical parts to complex multi-axis components.

Q2. What materials can you work with?

We machine a wide range of materials including carbon steel, stainless steel, aluminum, plastics, and other engineering-grade materials. If you have a specific material in mind, just send us your requirements and we'll confirm feasibility.

Q3. What is your typical lead time?

Lead times vary depending on part complexity, quantity, and material availability. For prototypes and small-batch runs, we typically deliver within 5–10 business days. For high-volume production, we'll provide a customized schedule after reviewing your drawings. Contact us with your project details for an accurate timeline.

Q4. How do you price your services?

Pricing is based on several factors: material cost, machining time, tooling requirements, setup complexity, and order quantity. We offer competitive rates for both low-volume prototypes and high-volume production runs. Request a quote with your CAD files or drawings and we'll get back to you within 24 hours.

Q5. What quality control measures do you have in place?

We follow strict quality control procedures throughout the machining process. Our CNC systems support programmable precision down to 1 μm, ensuring high accuracy and repeatability. Every batch undergoes dimensional inspection before shipping, and we can provide inspection reports upon request.
